Rosemount 8800D Series User Manual

Reference Manual
00809-0100-4004, Rev BA
August 2010
2-19
Rosemount 8800D
• If the flowmeter is protected by the optional transient protector, you
must provide a high-current ground connection from the electronics
housing to earth ground. Also, tighten the ground screw in the bottom
center of the terminal block to provide a good ground connection.
• Plug and seal all unused conduit connections on the electronics
housing to avoid moisture accumulation in the terminal side
of the housing.
• If the connections are not sealed, mount the flowmeter with the conduit
entry positioned downward for drainage. Install wiring with a drip loop,
making sure the bottom of the drip loop is lower than the conduit
connections or the electronics housing.

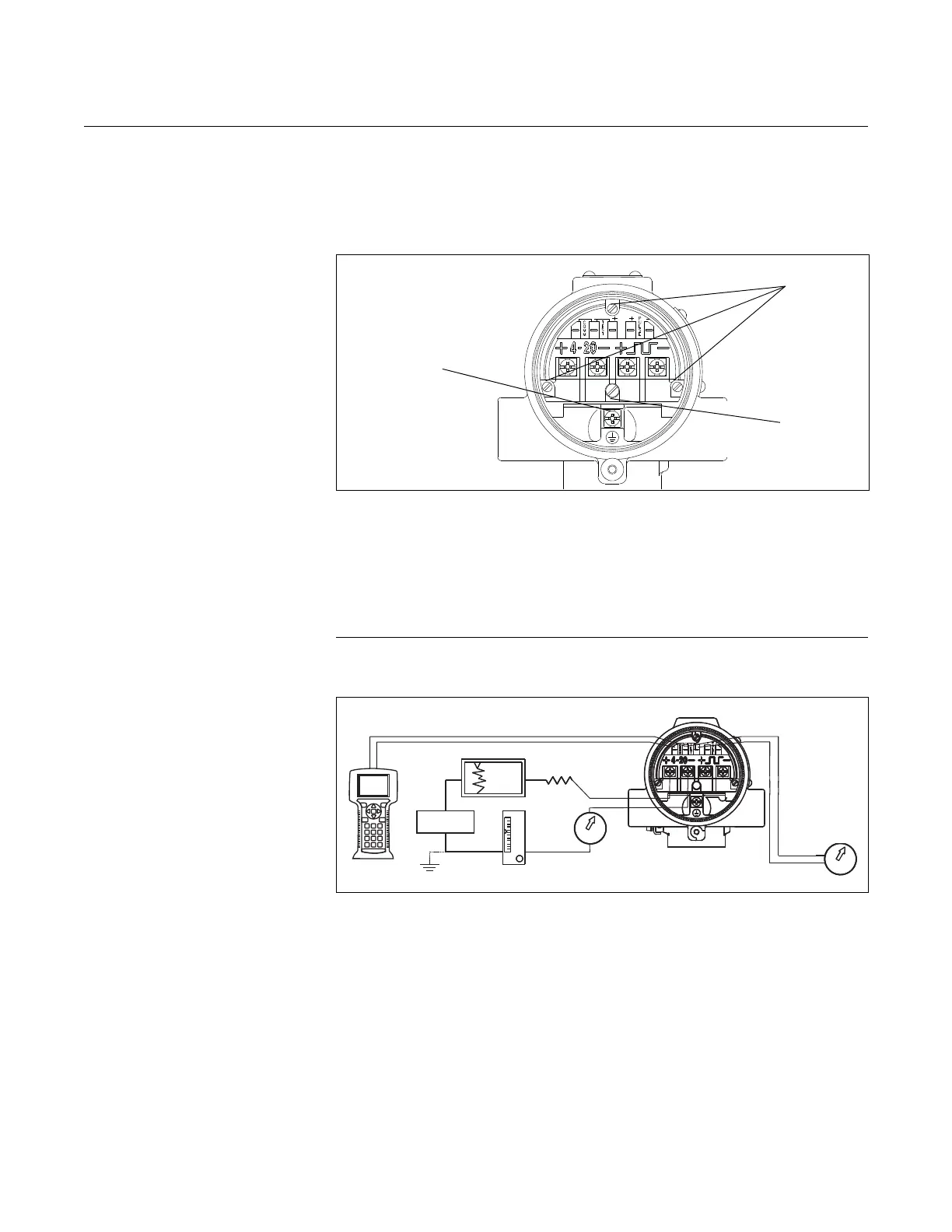

Figure 2-13. The Transient Terminal Block
Figure 2-14. 4-20 mA Wiring
Housing
Ground
Screw
Captive
Screws
Transient Terminal
Block Ground Tab
+
-
R
L
250 
Test
Ammeter

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
