Reference Manual
00809-0100-4004, Rev BA
August 2010
2-21
Rosemount 8800D
1. If you plan to run the coaxial cable in conduit, carefully cut the conduit
to the desired length to provide for proper assembly
at the housing. A junction box may be placed in the conduit run to
provide a space for extra coaxial cable length.
2. Slide the conduit adapter or cable gland over the loose end of the
coaxial cable and fasten it to the adapter on the meter body support
tube.
3. If using conduit, route the coaxial cable through the conduit.
4. Place a conduit adapter or cable gland over the end of the
coaxial cable.
5. Remove the housing adapter from the electronics housing.
6. Slide the housing adapter over the coaxial cable.
7. Remove one of the four housing base screws.
8. Attach the coaxial cable ground wire to the housing via the housing
base ground screw.
9. Attach and securely tighten the coaxial cable nut to the connection on
the electronics housing.
10. Align the housing adapter with the housing and attach
with two screws.
11. Tighten the conduit adapter or cable gland to the
housing adapter.

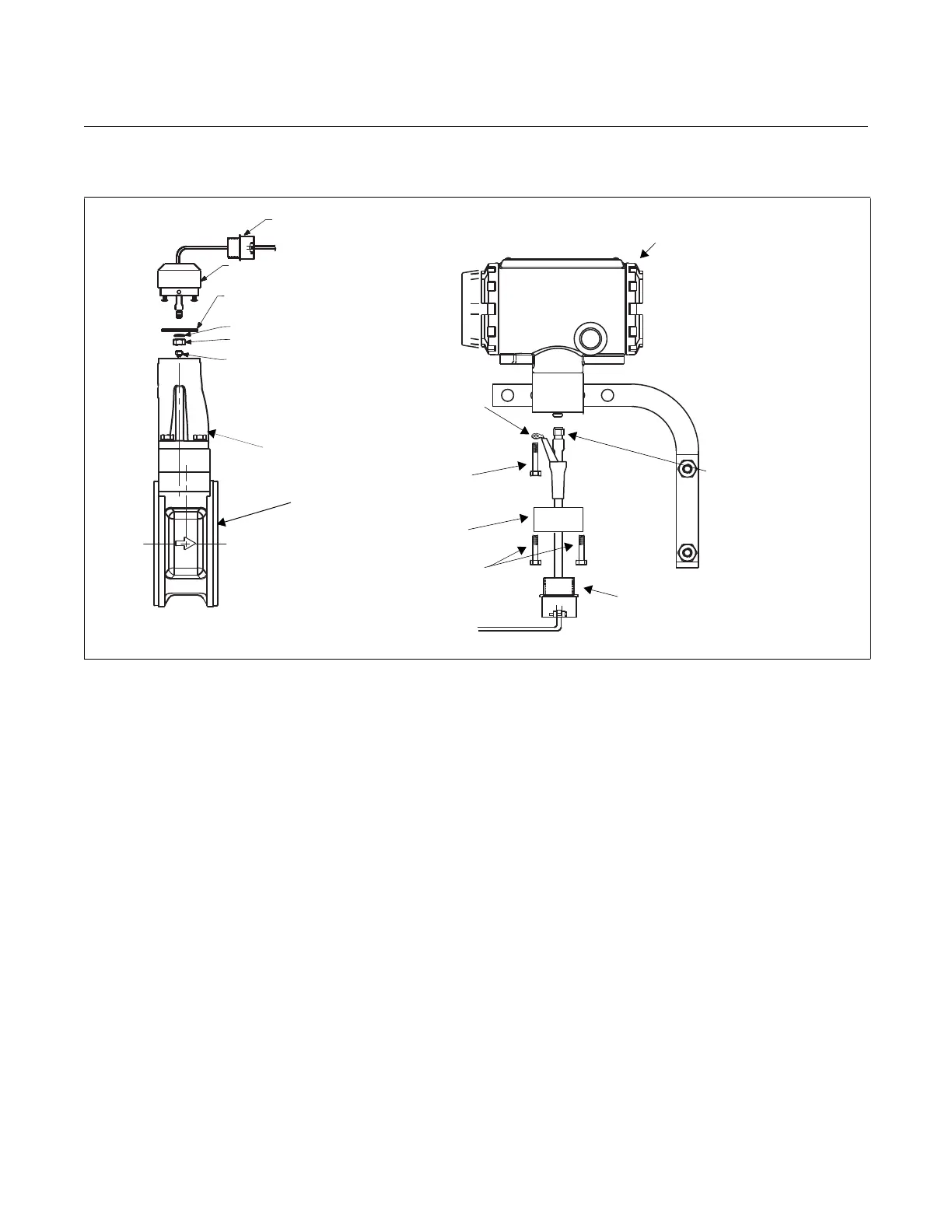

Figure 2-16. Remote Electronics Installation
NOTE
Consult factory for SST installation
Ground
Connection
Housing Adapter
Housing Adapter Screws
Electronics Housing
Coaxial
Cable Nut
Housing
Base Screw
1
/2 NPT Conduit Adapter or Cable Gland
(Supplied by customer)
½ NPT Conduit Adapter or Cable
Gland (Supplied by Customer)
Coaxial Cable
Meter Adapter
Union
Washer
Sensor Cable Nut
Meter Body
Nut
Support
Tube
To Next Page
