Wireless Router RNX-N150RT User Manual

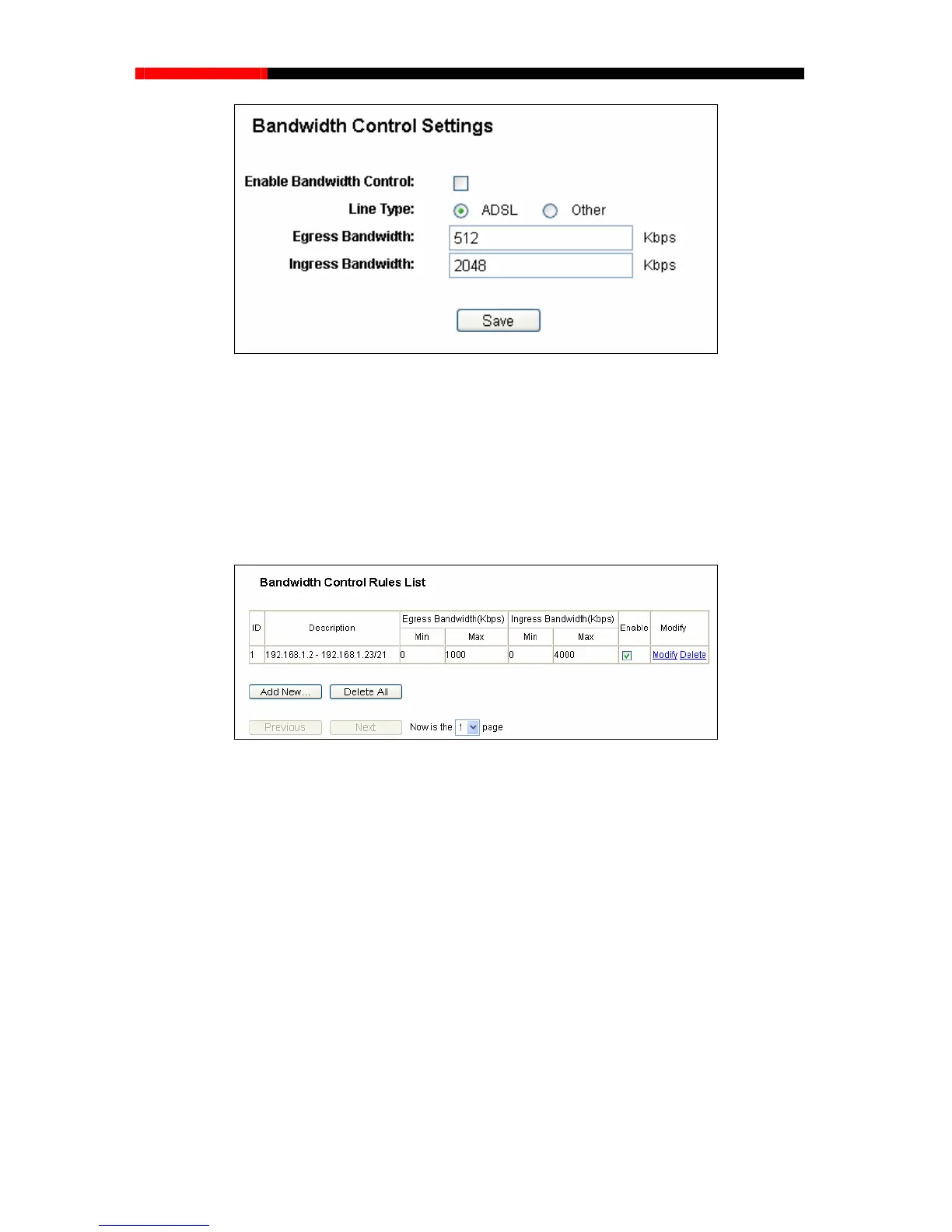

Figure 4-72 Bandwidth Control Settings
Note:
For optimal control of the bandwidth, please select the right bandwidth type and ask your ISP for
the total bandwidth of the e
4.15.2 Rules List
rol→Rules List”, you can view and configure the Bandwidth
Control rules in the screen below.
gress and ingress.
Choose menu “Bandwidth Cont
Figure 4-73 Bandwidth Control Rules List
Description-This is the information about the rules such as address range.
Egress bandwidth-This field displays the max and mix upload bandwidth through the WAN
port, the default is 0.
Ingress bandwidth-This field displays the max and mix download bandwidth through the
WAN port, the default is 0.
Enable-This displays the status of the rule.
Modify - Click Modify to edit the rule. Click Delete to delete the rule.
To add/modify a Bandwidth Cont low.
n in Figure 4-74.
rol rule, follow the steps be
Step 1: Click Add New…shown in Figure 4-73, you will see a new screen show
Step 2: Enter the information like the screen shown b
elow.
- 96 -
