Wireless Router RNX-N150RT User Manual
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.

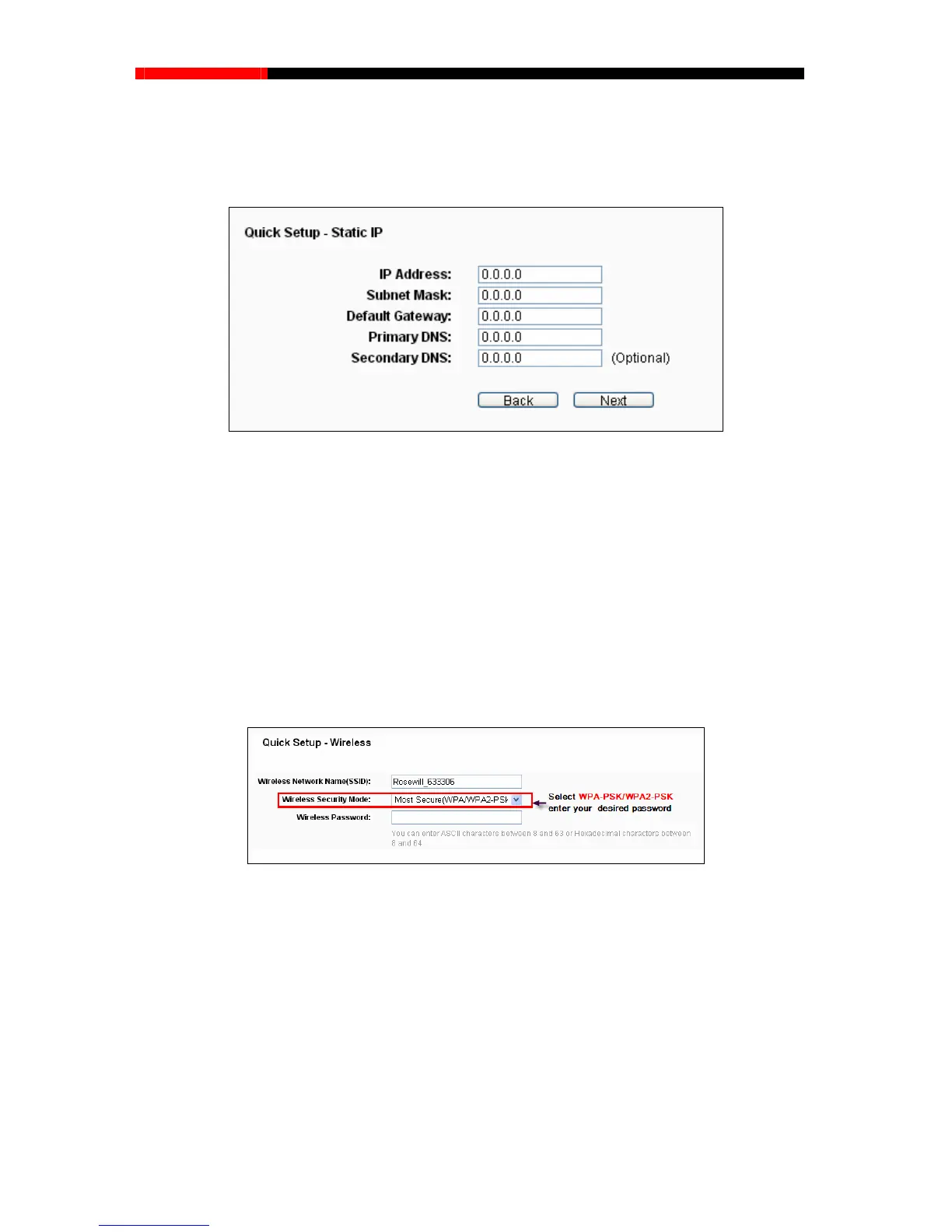

3) If the connection type is Static IP, the next screen will appear as shown in Figure 3-18.
Figure 3-18 Quick Setup - Static IP
IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually
255.255.255.0.
Default Gateway - Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.
Secondary DNS - If your ISP provides another DNS server, enter it into this field.
3. Click Next to continue, the Wireless settings page will appear as shown in Figure 3-19.
Figure 3-19 Quick Setup –Wireless
Wireless Network Name (SSID) - Enter a value of up to 32 characters. The same name
of SSID (Service Set Identification) must be assigned to all wireless devices in your
network. Considering your wireless network security, the default SSID is set to be
(Rosewill_XXXXXX indicates the last unique six numbers of each router’s MAC
address). This value is case-sensitive. For example, TEST is NOT the same as test.
Wireless Security Mode - You can select one of the following security options:
Most Secure (WPA/WPA2-PSK) - Select WPA based on pre-shared passphrase.
Secure (WEP)- Select WEP based on none pre-shared passphrase.
- 18 -
