Wireless Router RNX-N150RT User Manual
Connect in the corresponding row. For example, the first item is selected. The target network’s
SSID will be automatically filled into the corresponding box which is shown as the Figure 3-35.

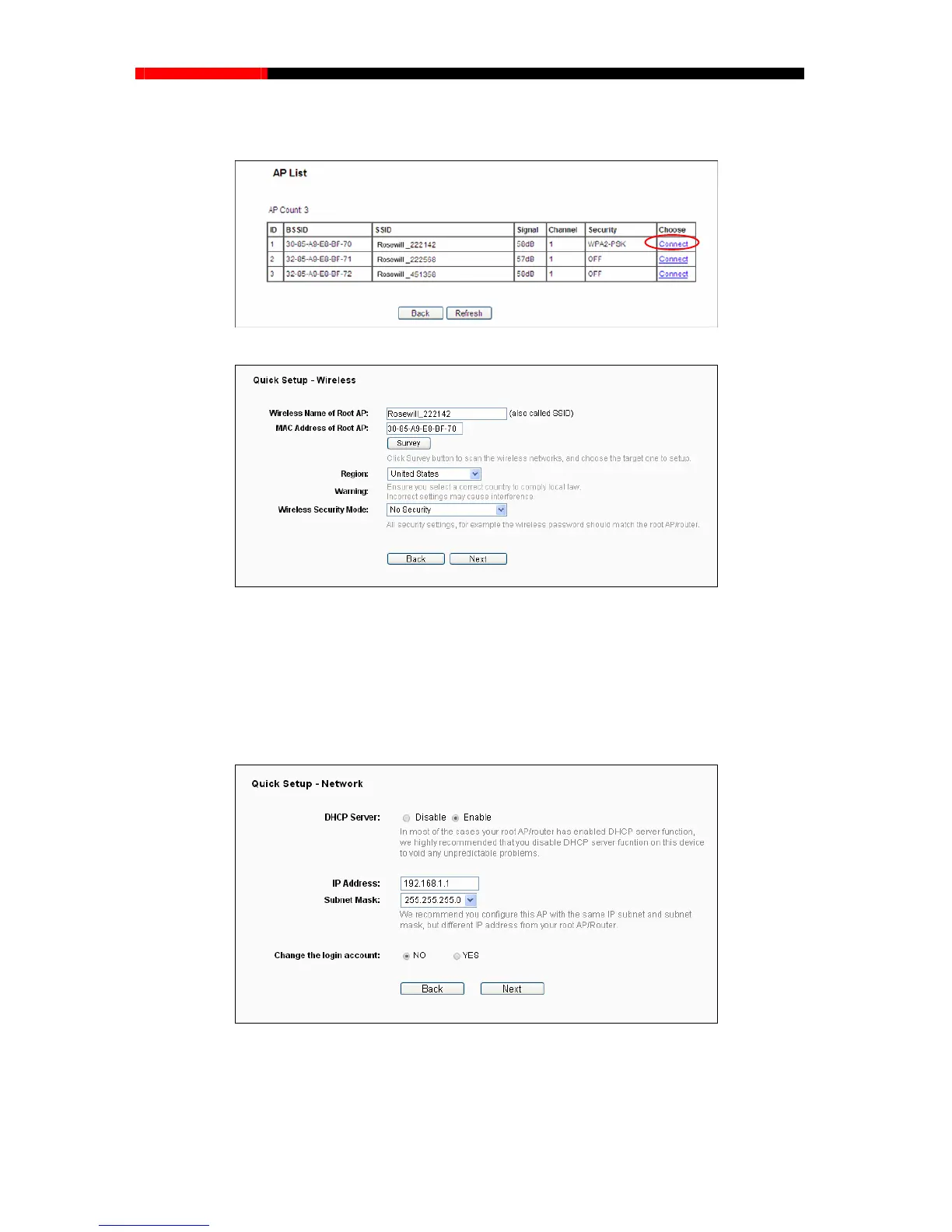

Figure 3-34 AP List
Figure 3-35 Quick Setup - Wireless
Note:
If you know the SSID of the desired AP, you can also input it into the field "Wireless Name of
Root AP" manually.
2. You will see the Network page as shown in Figure 3-36. Please configure the IP parameters of
LAN on this
page, and then click Next.
Figure 3-36 Quick Setup – Network
- 29 -
