ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
1. General
Warning: For the best possible engine operation, compliance with the following advice
regarding installation of engine and equipment is required.
Warning: Engine operation is permitted only with equipment supplied by ROTAX.
Warning: Modifications on engine or equipment are not allowed.
Warning: Besides the engine-specific installation advice, also take note of information from
the respective chassis manufacturer.
Note: An Engine Identity Card stating date of delivery and company has to be issued by
the authorized Service Center for the customer.
Note: The data entered in the engine identity card is required for verification of a warranty
claim. Without a completely filled-in Engine Identity Card no warranty claim will be
granted.
Note: In case of participating in the ROTAX MAX evo CHALLENGE (RMC) the engine
must be verified for conformity with the technical regulations and sealed.
The serial number of the seal must be entered in the Engine Identity Card.
2. Finalizing of engine assembly
For technical-transport-reasons some items are included loosely in the shipment and have to be
fitted as follows after receipt of engine.
2.1. Installation and connection of the electric and electronic components
2.1.1. Installation of the ignition coil

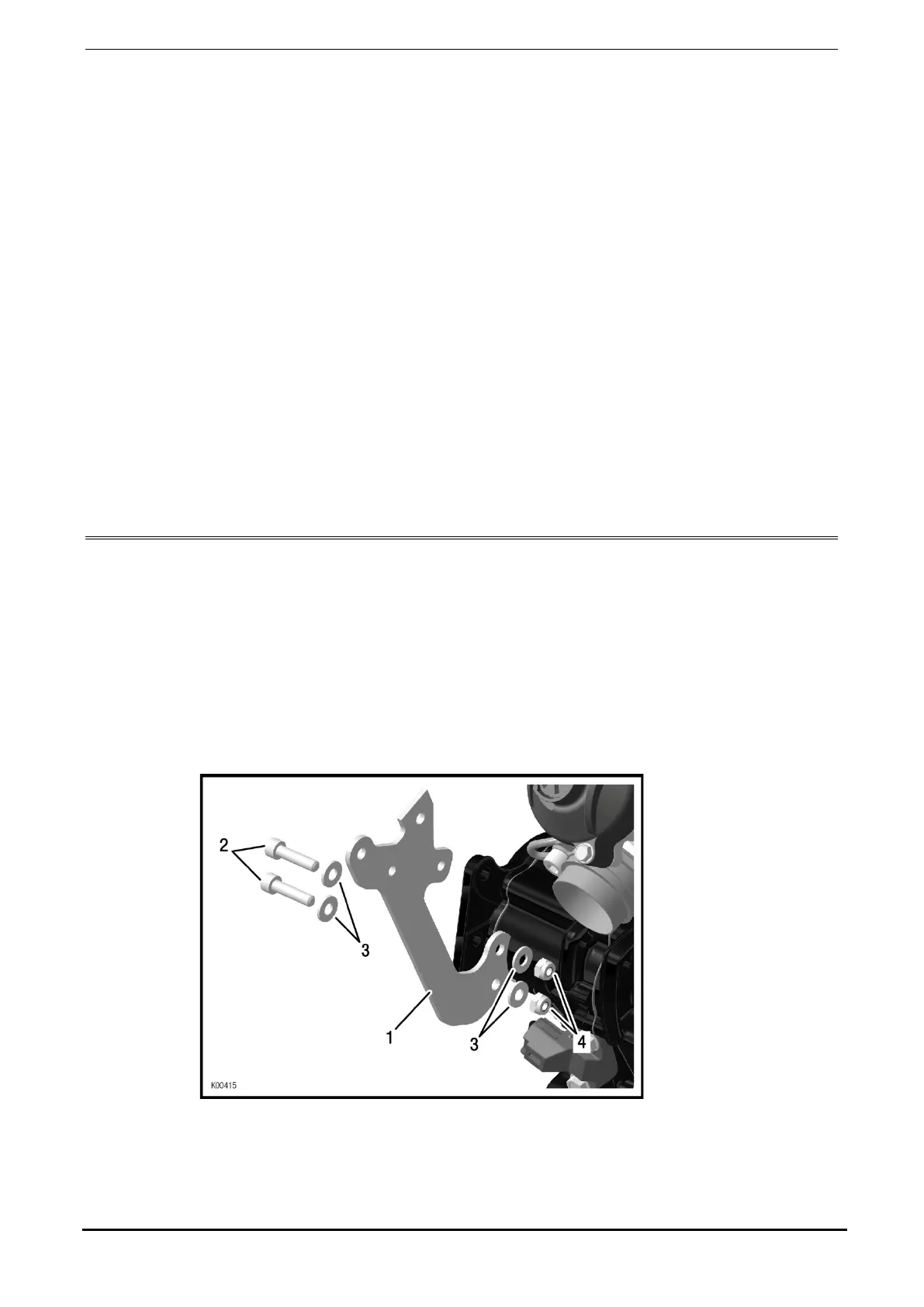

Install the support bracket (pos. 1) with M8x50 screw (pos. 2) and distance sleeve
(pos. 3) onto the engine housing. Make sure that the support bracket is in the
correct position!
Fig. 1
Install the ignition coil (pos. 5) onto the support bracket using M6x20 screws (pos. 6)
with washers (pos. 8) and M6 nuts (pos. 7).
Note: The ignition coil can only be installed in one position. The rectangular upper end of
the support bracket has the same shape as the part of the ignition coil to be
fastened.
Seite/page 51/98
Ausgabe/Edition 11/2014
