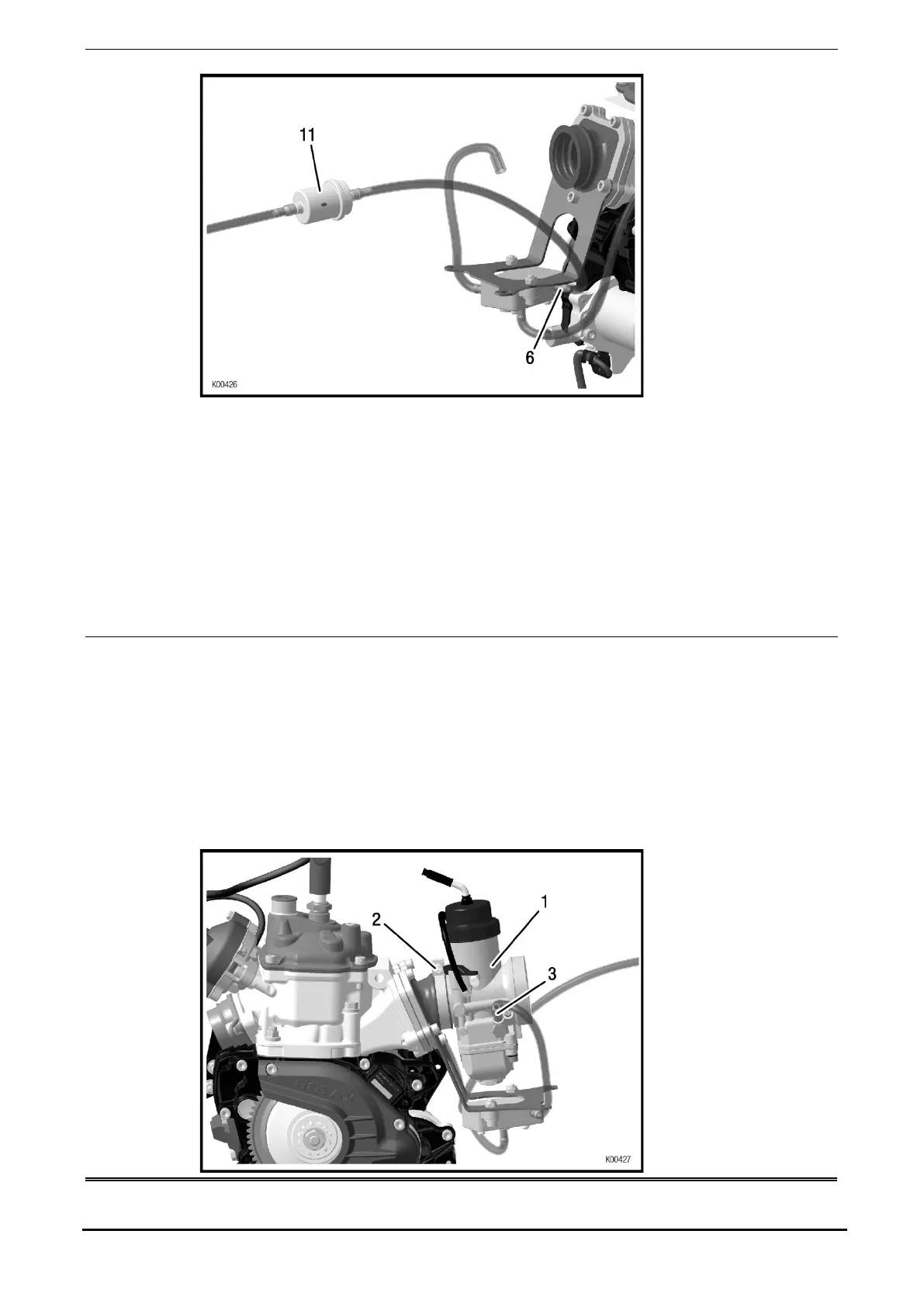

Fig. 14
 Attention: Route the fuel line from the fuel tank to the fuel pump so that it does not touch any
moving parts or the track and attach the fuel line onto the top side of the chassis
tube.
 Attention: The flow in the impulse hose and fuel lines must not be restricted by the use of
cable ties.
 Attention: The use of an extra fuel filter must not cause further flow resistance in the fuel line
between the fuel tank and the fuel pump.
7.2. Installation and connection of the carburetor
See Fig. 15.
 Remove the transport plug from the carburetor.
 Fit carburetor (pos. 1) into carburetor socket and secure with hose clamp (pos. 2) in
vertical position.
 Connect the outlet hose of the fuel pump with fuel inlet on carburetor (pos. 3).
Fig. 15
Seite/page 62/98 Ausgabe/Edition 11/2014
