10. Installation of the intake silencer with integrated airfilter
See Fig. 19.
 Install intake silencer tube (pos. 2) in a vertical position in the bottom half of intake
silencer case (pos. 1) so that the rounded intake openings point outwards.
 Fit the carburetor socket (pos. 6) into the top half of intake silencer case (pos. 5) so
that the arrow on the socket points towards the carburetor.
 Install the filter element (pos. 4) with holders (pos. 3) into the bottom half of
intake silencer case (pos. 1).
 Assemble bottom half of intake silencer case (pos. 1) with top half (pos. 5) as shown
in following illustration. Make sure that the locking is interlocked properly.
 Attach the intake silencer with the supplied hose clamp (pos. 11) on the carburetor.
 Note: The carburetor socket (pos. 6) is asymmetrical and can be turned so that the best
possible position between carburetor and intake silencer can be achieved.
 Attach the intake silencer on the support bracket (pos. 8) using 2 Allen screws
M6x20 (pos. 10) with washers (pos. 9) and nuts (pos. 7).

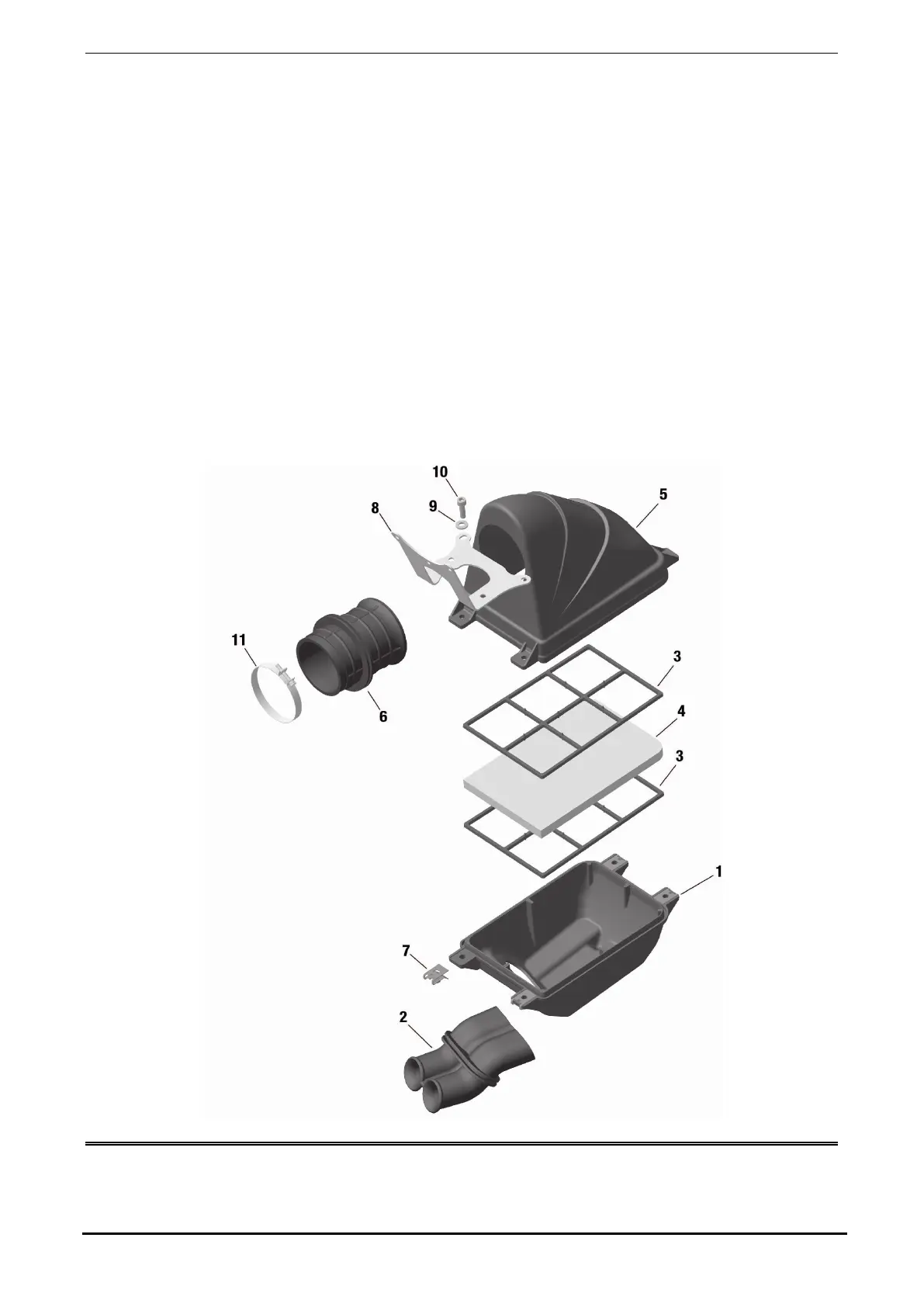

K00432 / Fig. 21
Seite/page 66/98 Ausgabe/Edition 11/2014
