Rotax 125 MAX evo Installation Instructions And Operation Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
8. Installation of the Bowden cable for carburetor control
See Fig. 16.
 Carefully remove carburetor cover with rubber ring (pos. 7, 8)
 Attention: Reset spring (pos. 6) of carb piston presses against carburetor cover and might
eject carburetor cover at removal.
 Remove nipple screw (pos. 5) with A/F 10 wrench from carburetor piston (pos. 2).
 Engage nipple of Bowden wire (pos. 9) in nipple screw (pos. 5).
 Fit nipple screw in carburetor piston and hand tighten with A/F 10 wrench.
 Insert carburetor piston (pos. 2) into carb body with cut-away of piston towards
intake silencer.
 Pass Bowden wire through compression spring (pos. 6) and through cover with
rubber ring (pos. 7, 8) of carburetor.
 Fit carb cover (pos. 7) on carburetor.
 Pass Bowden wire through Bowden conduit and through adjustment screw on
chassis.
 Connect Bowden cable on throttle pedal.

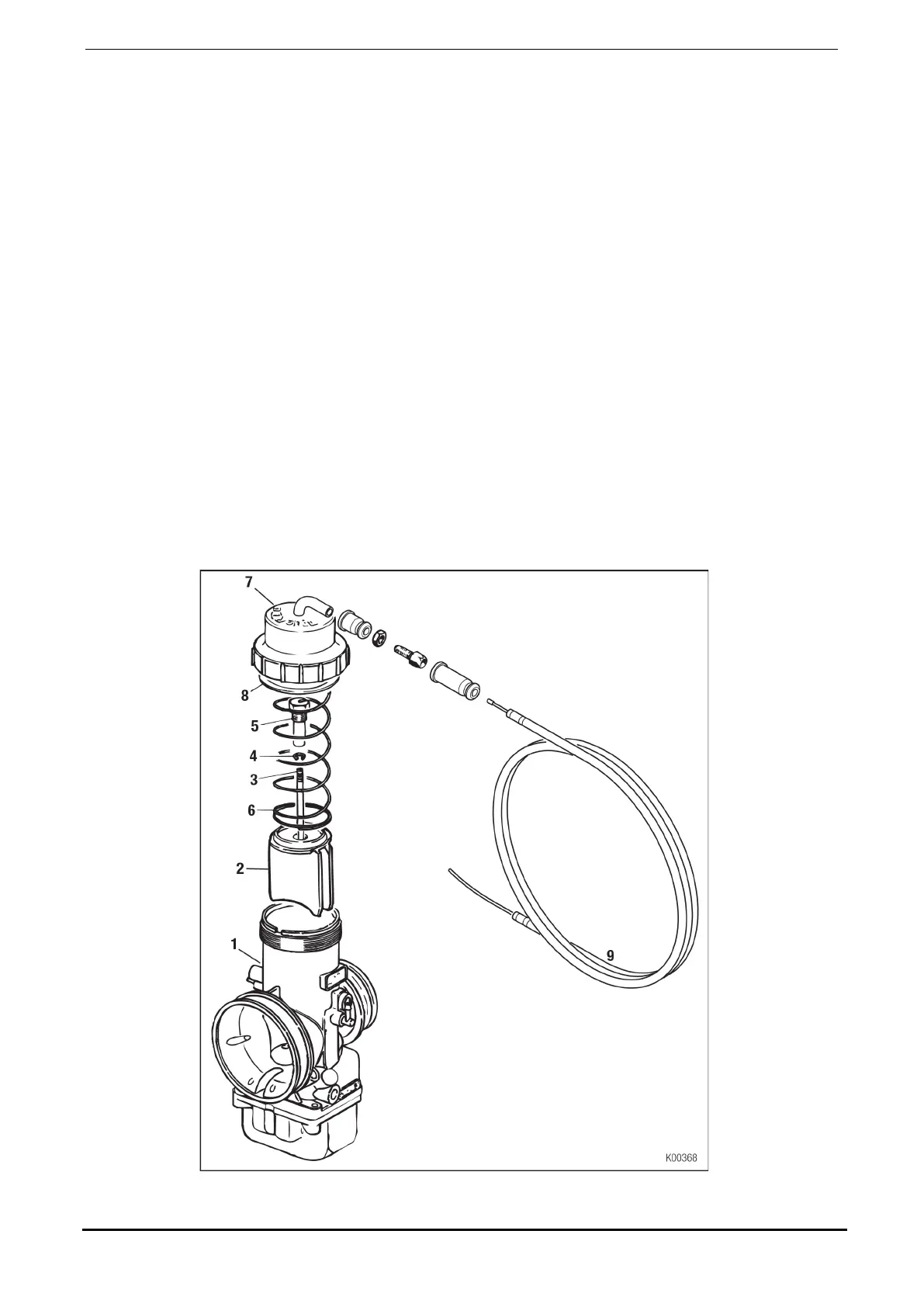

Fig. 16
 Note: Shorten Bowden cable as required.
Seite/page 63/98 Ausgabe/Edition 11/2014
