Rotax 125 MAX evo Installation Instructions And Operation Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

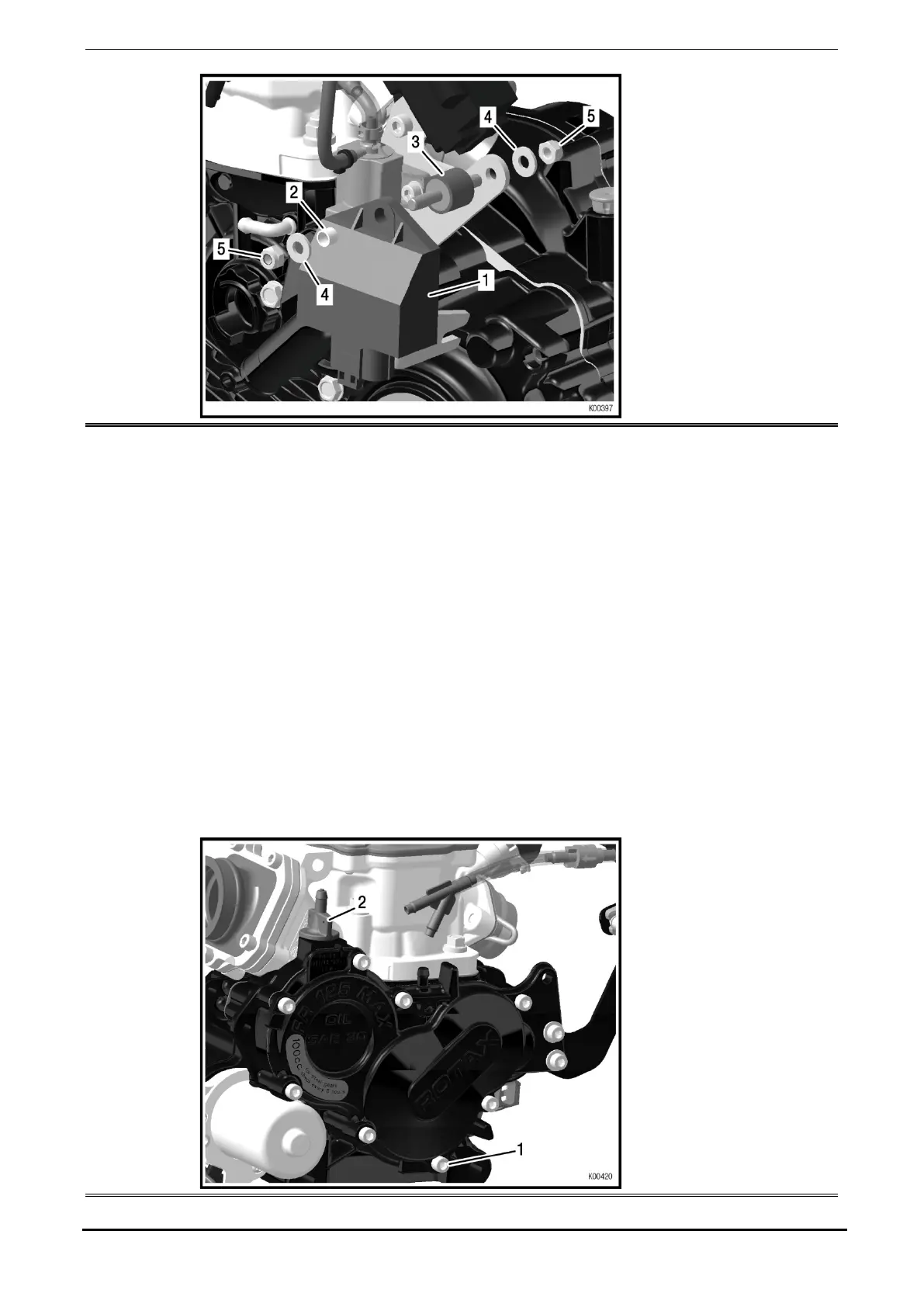

Fig. 5
3. Verification or replenishing of oil level in gear compartment
The gear compartment will have already been filled with the appropriate amount of oil by the
engine manufacturer. However before engine installation in frame, the oil level must be verified or
replenished.
 Place engine on a horizontal surface and/or and/or assembling trestle.
 Note: To measure the oil level exactly, drain the gear oil and determine it using a
measuring cup.
 Loosen Allen screw (pos. 1) with gasket ring and absorb the leaking oil in a
measuring cup. If necessary, remove the air vent screw (pos. 2) to ensure a better
oil drain.
 Determine the gear oil using the measuring cup.
 Note: Oil capacity by new filling is 100 cc (0.026 gal)
 Note: Specification of gear oil is: Engine oil SAE 15W-40.
 Tighten the Allen screw (pos. 1) with new gasket ring. Tightening torque 10 Nm.
 Remove the air vent screw (pos. 2) (if available) and replenish gear oil.
 Hand tighten the air vent screw (pos. 2).
Fig. 6
