Rotax 125 MAX evo Installation Instructions And Operation Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
7. Installation and connection of the fuel system
7.1. Installation and connection of the fuel pump

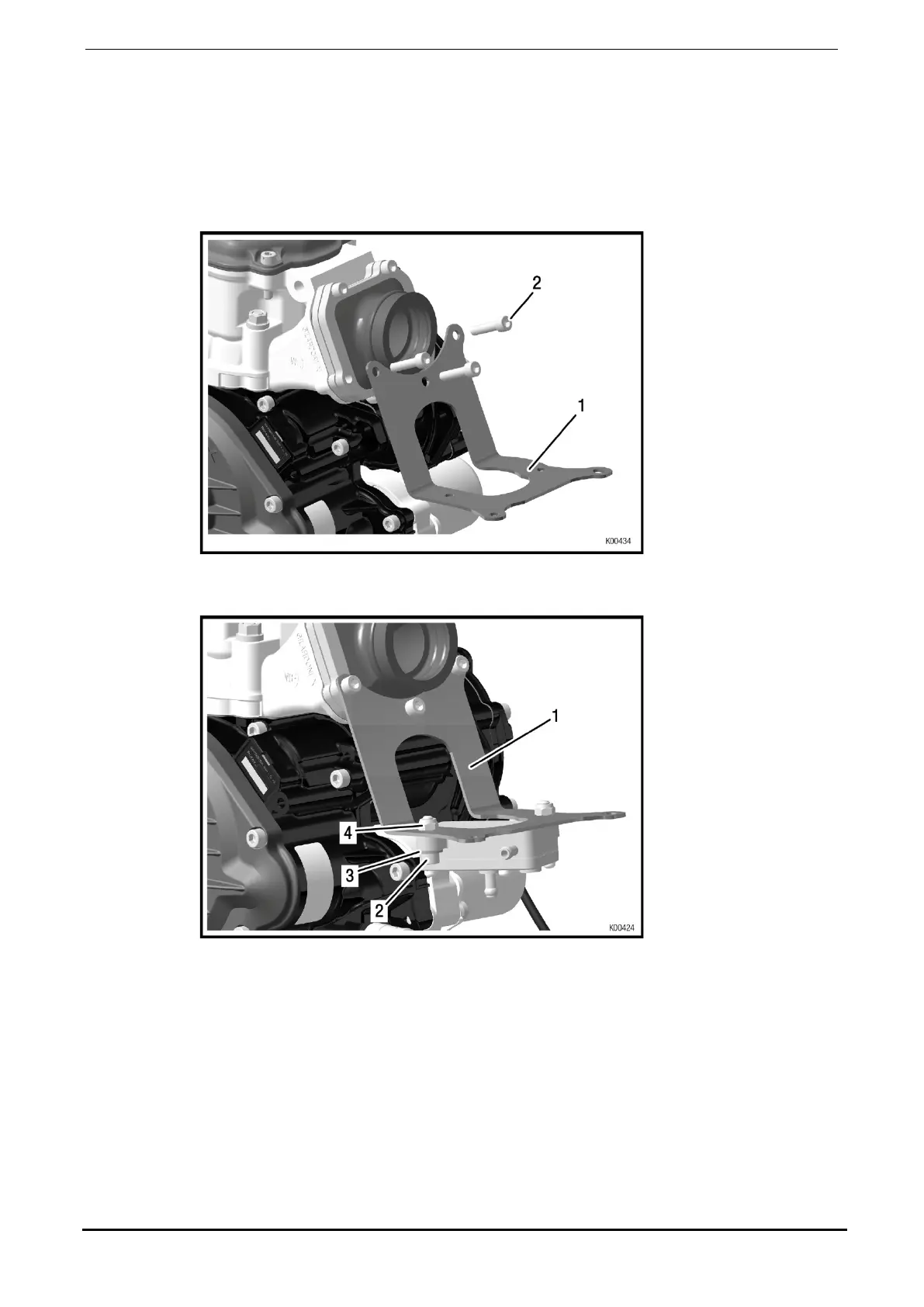

 Install the support bracket (pos. 1) on the carburetor socket using 3 screws M6x25
(pos. 2).
Tightening torque 6 Nm / 53 lbf in.
Fig. 11
 Install the fuel pump with the two supplied Allen screws (pos. 2), locknuts (pos. 4)
and washers (pos. 3) on support bracket (pos. 1).
Fig. 12
 Cut off two pieces, each 29 cm (11,41 in) long from the supplied fuel hose and fit
one each on the fuel inlet (pos. 7) and fuel outlet connection (pos. 6) (arrow on
pump housing).
Seite/page 60/98 Ausgabe/Edition 11/2014
