Rotax 125 MAX evo Installation Instructions And Operation Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
See Fig. 10.
 Connect starter with plug connector (pos. 7).
 Connect cable lugs (pos. 9) to the battery.
 Warning: Do not interchange connection poles! This may lead to severe damages to the
electric or electronic components.
 Fasten the wiring harness to the upper side of the frame tubes using the delivered
cable ties.
 Warning: Strain relief of the plug connections must be ensured.
 Note: Compensate excessive length of wiring harness by routing cables in loops.
 Warning: The wiring harness must not touch moving parts of the track.
 Attention: Pay special attention to proper ground connection.
 Note: When unplugging connections on ignition pick up and ignition coil, press the
integrated catch first.
 Note: Disconnect any electrical plug connection only by pulling on the plugs.

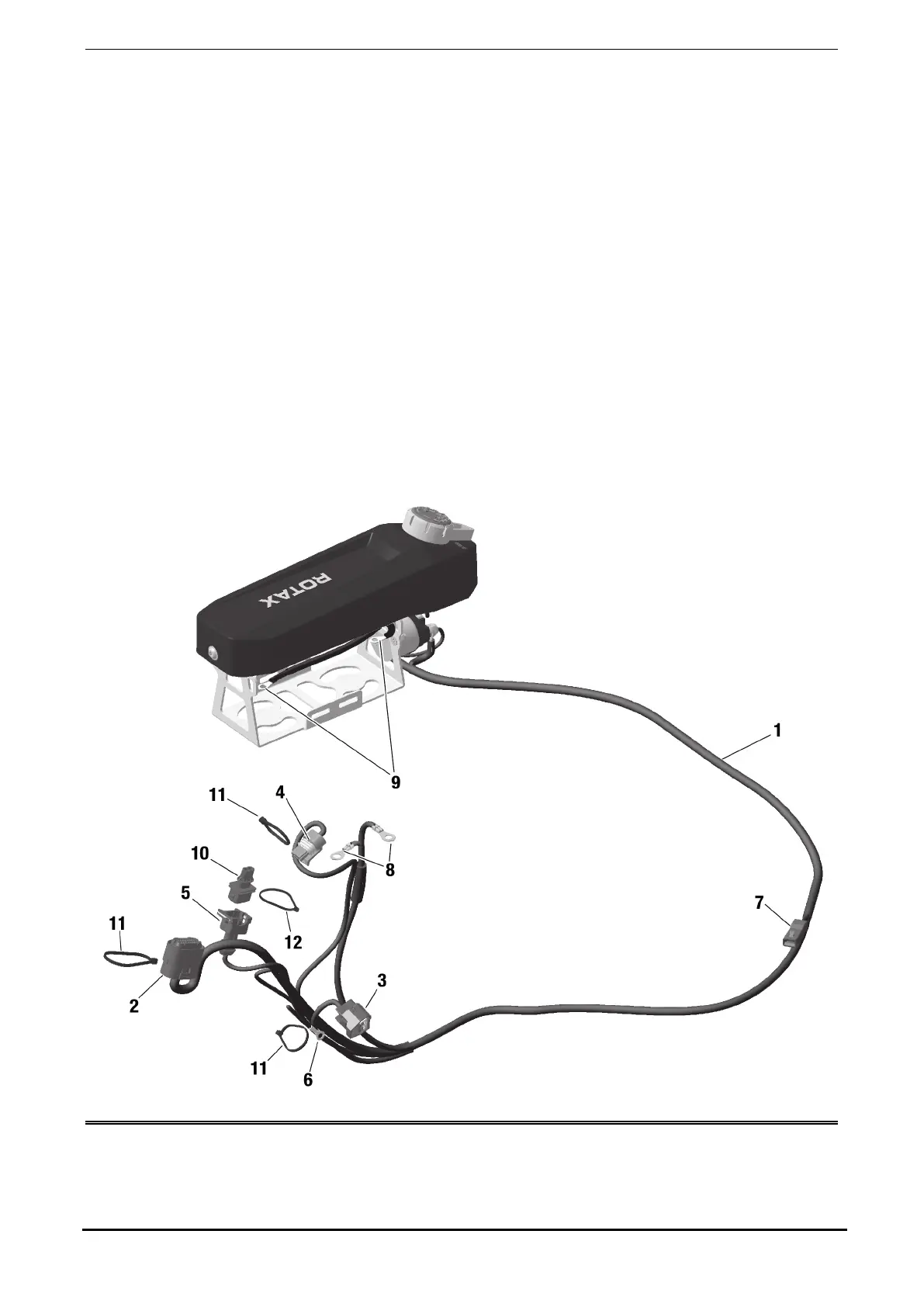

K00421 / Fig. 10
Seite/page 59/98 Ausgabe/Edition 11/2014
