Rotax 125 MAX evo Installation Instructions And Operation Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

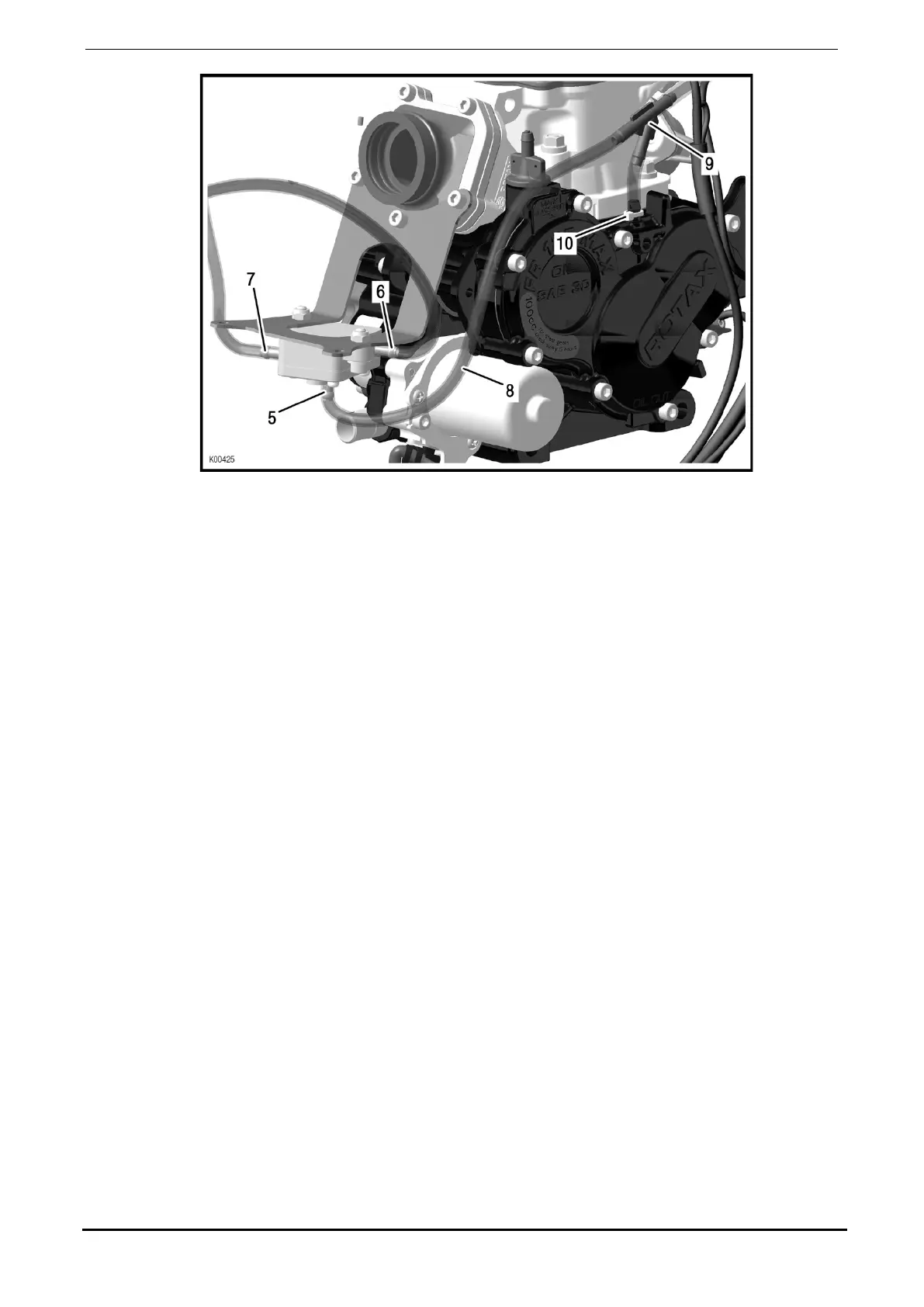

Fig. 13
 Remove the cap from the impulse fitting at the gearbox housing.
 Connect the impulse fitting (pos. 5, fig. 13) of the fuel pump via the Y-piece (pos. 9,
fig. 13) with the RAVE control unit. (125 MAX only)
 Connect vacuum line between the Y-piece (pos. 9, fig. 13) and the gearbox
housing. (125 MAX only)
 Note: At engine types 125 Junior MAX evo, Mini MAX evo und Micro MAX evo connect
the vacuum line directly from the fuel pump to the gearbox housing.
 Secure vacuum line on the gearbox housing to prevent disengagement using a
cable tie (pos. 10, fig. 13).
 Attention: For proper operation of the fuel pump, keep the impulse line as short as possible but
never longer than 29 cm (11.41 in.).
 Attention: If oil condensate collects in the impulse hose when the engine is not running, it must
be drained by pulling the impulse hose off the fuel pump. Oil accumulated in the fuel
pump could impair operation of the fuel pump.
 Establish connection with fuel hose between the outlet on fuel tank and inlet (pos. 6,
fig. 14) on the fuel pump.
 Install the supplied fuel filter (pos. 11, fig. 14) in a proper position in the fuel line
between fuel tank and fuel pump.
Seite/page 61/98 Ausgabe/Edition 11/2014
