Rotax 125 MAX evo - Engine Tuning and Calibration

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
Fig. 8
Mode 2:
See Fig. 9.

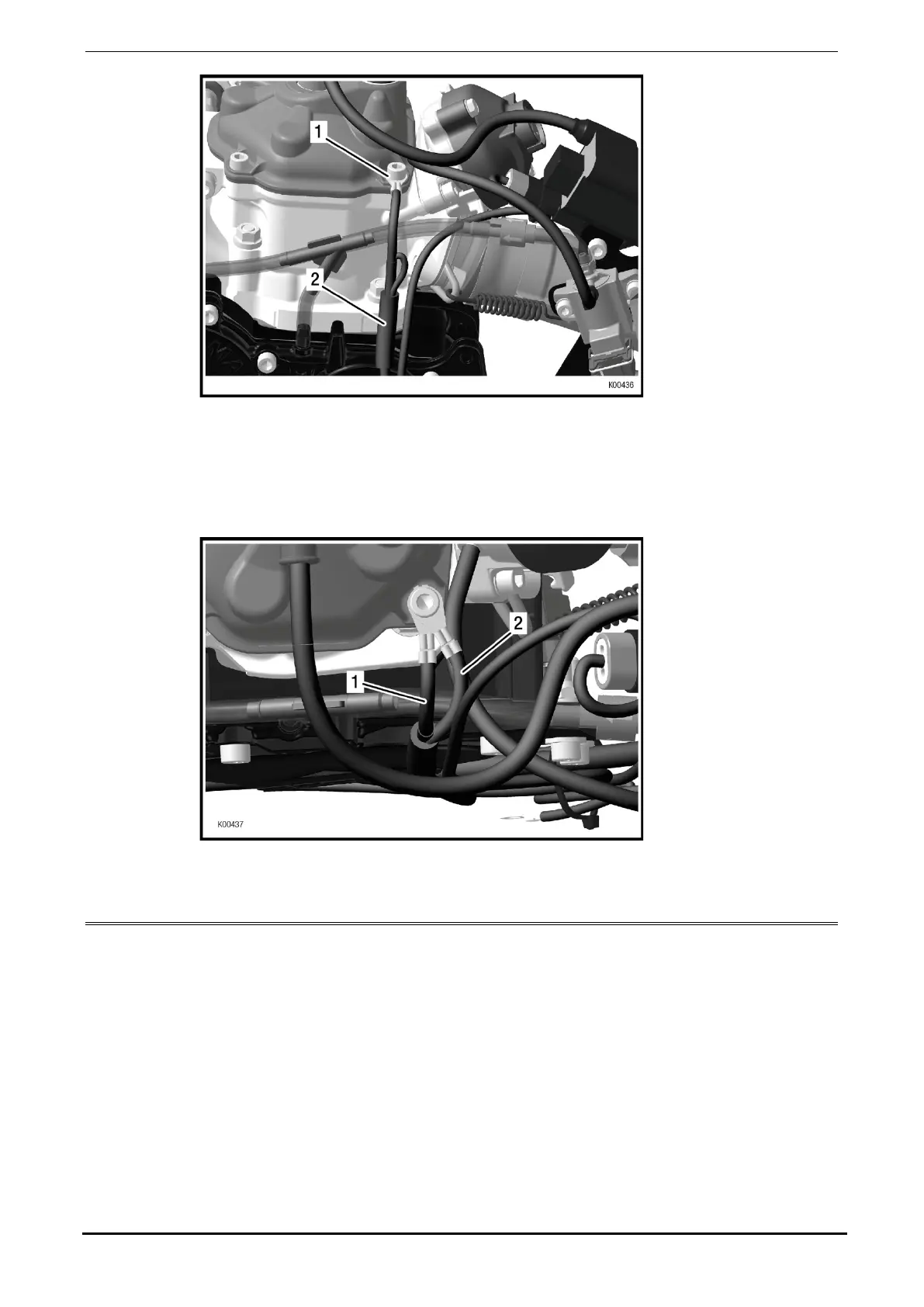

Additional cable (pos. 2) is attached to the ground wire (pos. 1) on the cylinder head cover.
The control of the exhaust valve timing is activated at 7600 r.p.m.
Fig. 9
Seite/page 87/98 Ausgabe/Edition 11/2014
