Copying complete programs
NOTE: Heating circuits cannot be copied to DHW circuits, as these have different cycle
temperatures: if a heating circuit is selected as a source circuit, the DHW circuit can
no longer be used as a target circuit.
1)
The program selection for source and target circuits is skipped
if programs P2 and P3 were disabled in
the System Parameter menu (see Page 5-32).
STANDARD
DISPLAY
TIME-
CALENDER
SYSTEM-
Parameter
UNMIXED
CIRCUIT
etc.

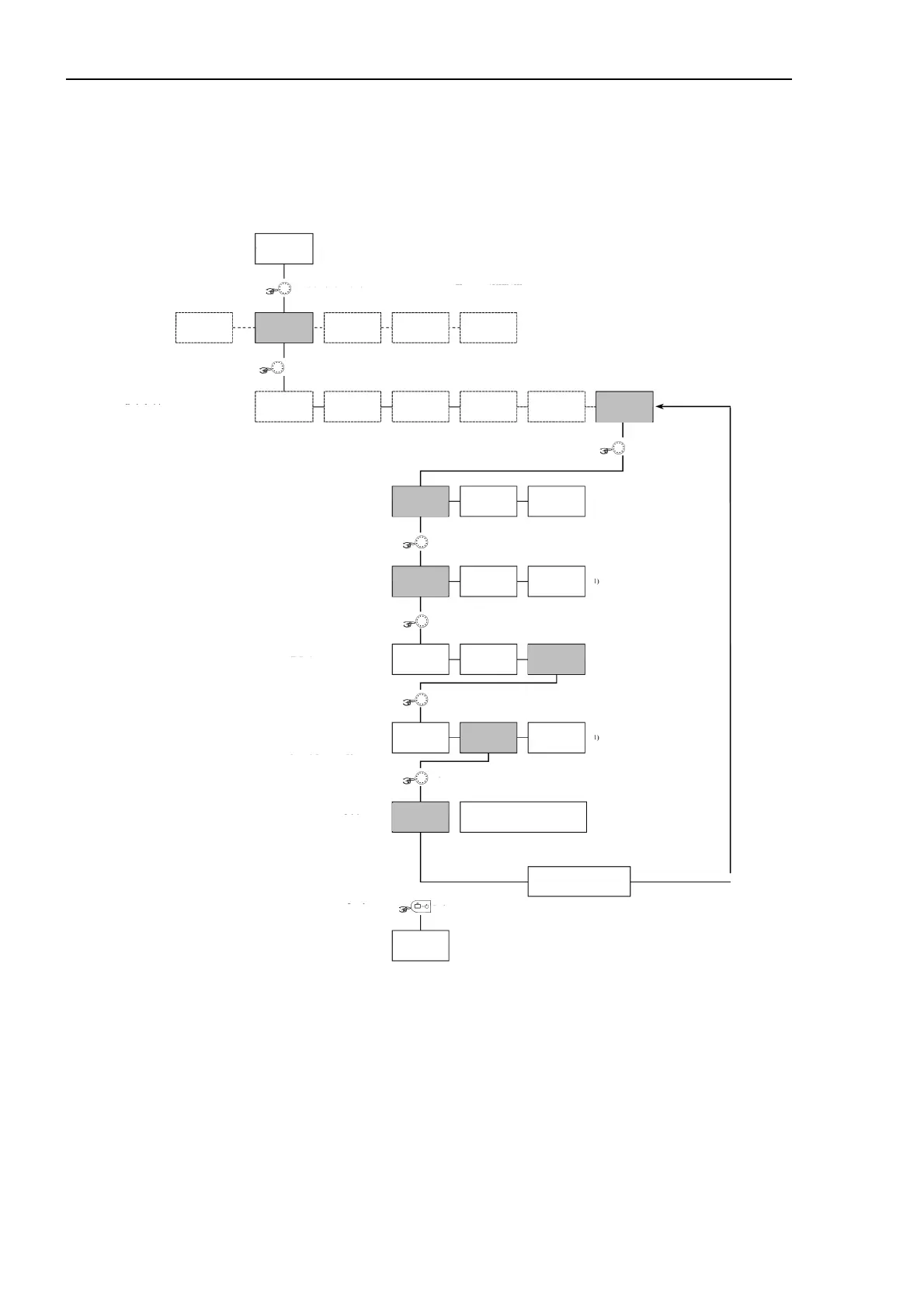

TIME PROGRAMS
Push for approx. 3 seconds
Level - SELECTION
press
Copying
function
UNMIXED
CIRCUIT
MIXED CIRCUIT
1
MIXED CIRCUIT
2
DHW
STANDARD
COPY
HEATING
CIRCUITS
press
Source
Example: Unmixed heating circuit
press
SOURCE
HC
SOURCE
MC-1
SOURCE
MC-2
SOURCE
HC
P1
SOURCE
HC
P2
SOURCE
HC
P3
Program source
press
TARGET
HC
TARGET
MC-1
TARGET
MC-2
press
Target
Example: Mixed circuit 2 (MC-2)
Program target
TARGET
MC2
P1
TARGET
MC2
P2
TARGET
MC2
P3
press
Example: Program P2
Copy
Confirmation
COPY
-OK-
Program P1 (direct circuit) =
Program P2 (mixed circuit 2)
If necessary,
copy more heating circuits
Return
Quit
STANDARD
DISPLAY
ð
select
ð
select
ð
select
ð
select
ð
select
