Rottler H85A - Page 110

Section 6 Maintenance H85A Manual
www.rottlermfg.com
6-3

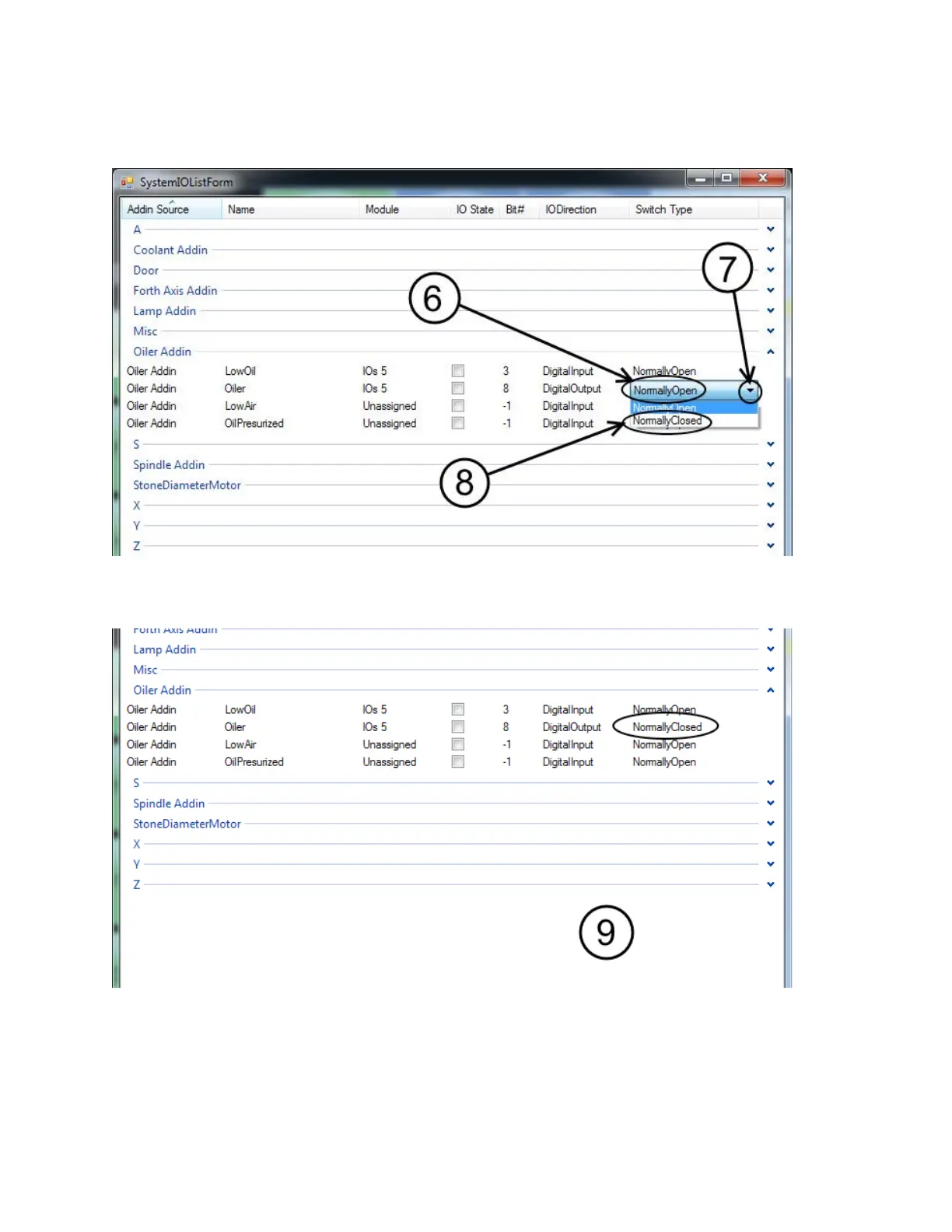

5 The second item on the expanded list is the control for the oiler. Click on NormallyOpen (6) and
value box will appear.
6 Click on the down arrow (7) and the different values available will appear.
7 Click on NormallyClosed (8) and it should appear on the second line in place of NormallyOpen.
8 Click on blank section (9) of the menu to activate the new value.
9 Oiler should now be running. Observe the oil lines and wait for them to become lled with oil.
10 Once they are lled go back to the setup window.
