Section 6 Maintenance H85A Manual
www.rottlermfg.com
6-6

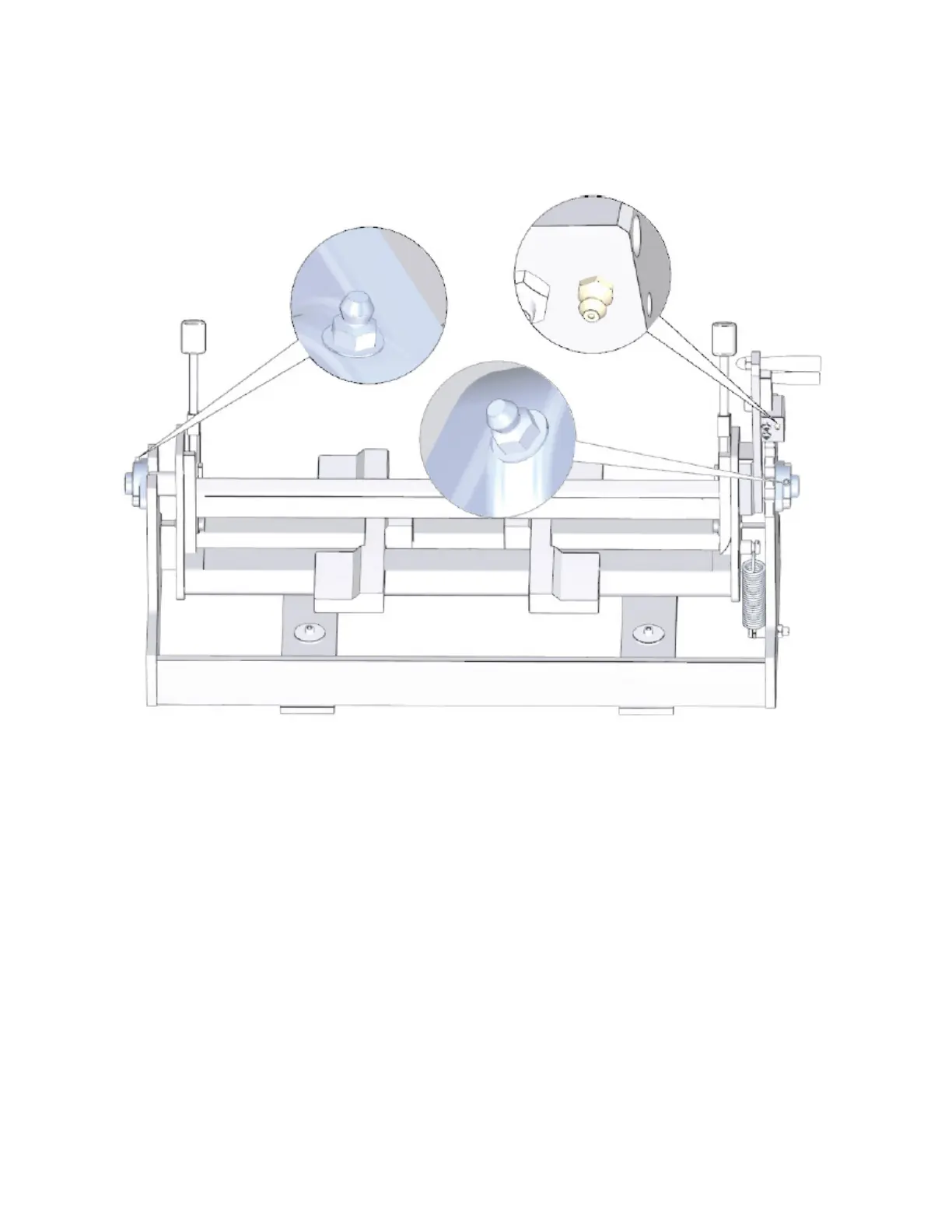

Grease should be added every 175 hours of service time.
Honing Coolant
The coolant pump is located in the back of the splash tank. The coolant drains under the block xture into
a sump under the machine.
Change the honing coolant when it gets dirty. When changing coolant, completely clean tank and lter
screen. Rell with Rottler 514-4-71C coolant mixed with water to a reading of 3 – 5 on the Refractometer
scale. If a Refractometer is not available then a static ratio of 5% - 8% is acceptable.
Ratio of coolant to water will be approximately 1:20 or 1 gallon of coolant for each 20 gallons of water.
Standard Coolant Filter Unit
Replace lter element in lter housing as needed.
Use the supplied 514-2-42D wrench to loosen the lter bowel from the housing. Remove old lter and
replace with new lter (514-2-42C). Use wrench to retighten bowel onto housing. Do not over tighten.
