Z-Axis Bearing Installation Stacking Order

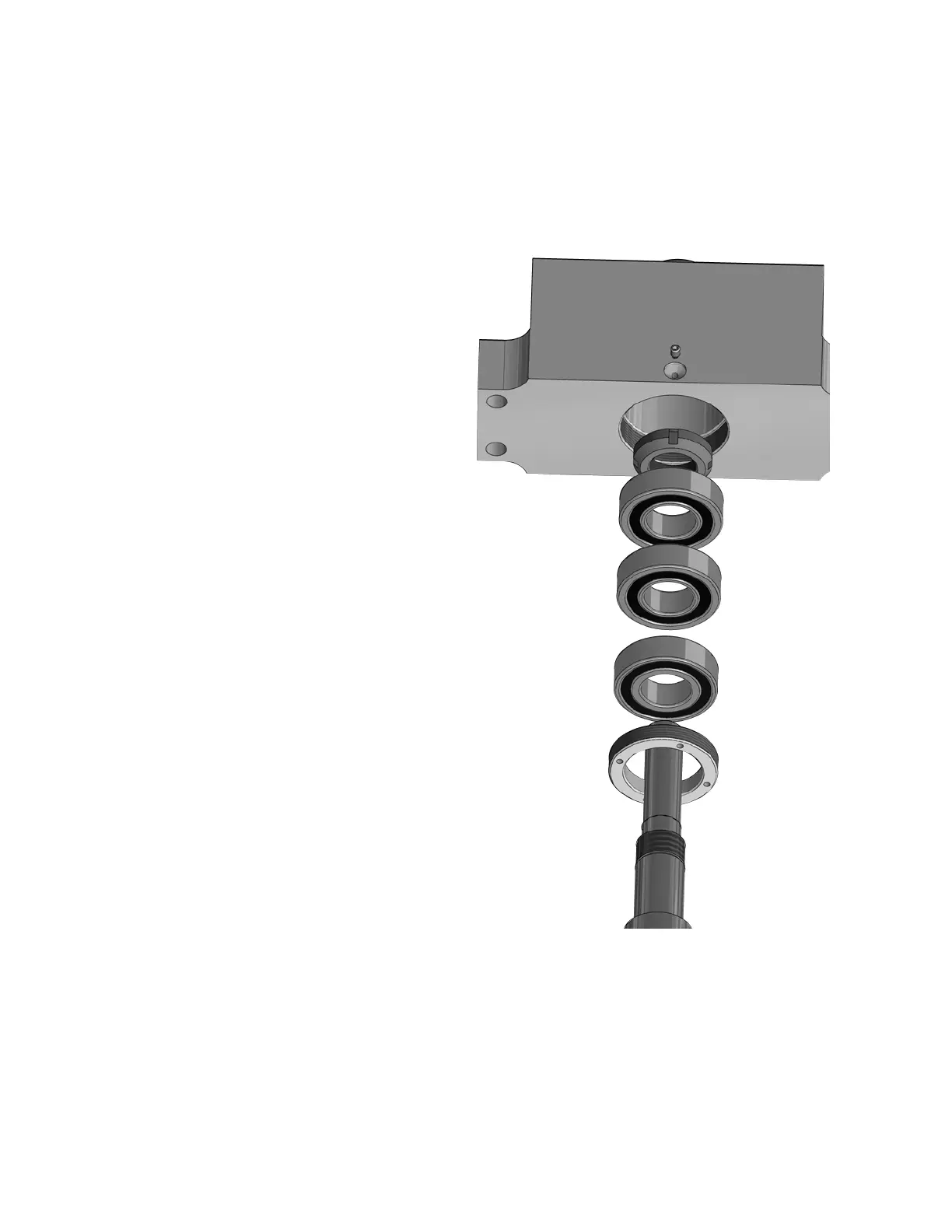

Z-Axis bearings have an asymmetrical inner race design. See illustration below for proper stacking order
of bearings.
2
nd
and 3
rd
bearings are install with open end
up towards locknut.
1
st
bearing is installed closed end up towards
locknut.
