Section 5 Operating Instructions H85A Manual
www.rottlermfg.com
5-30
Setting Zeros

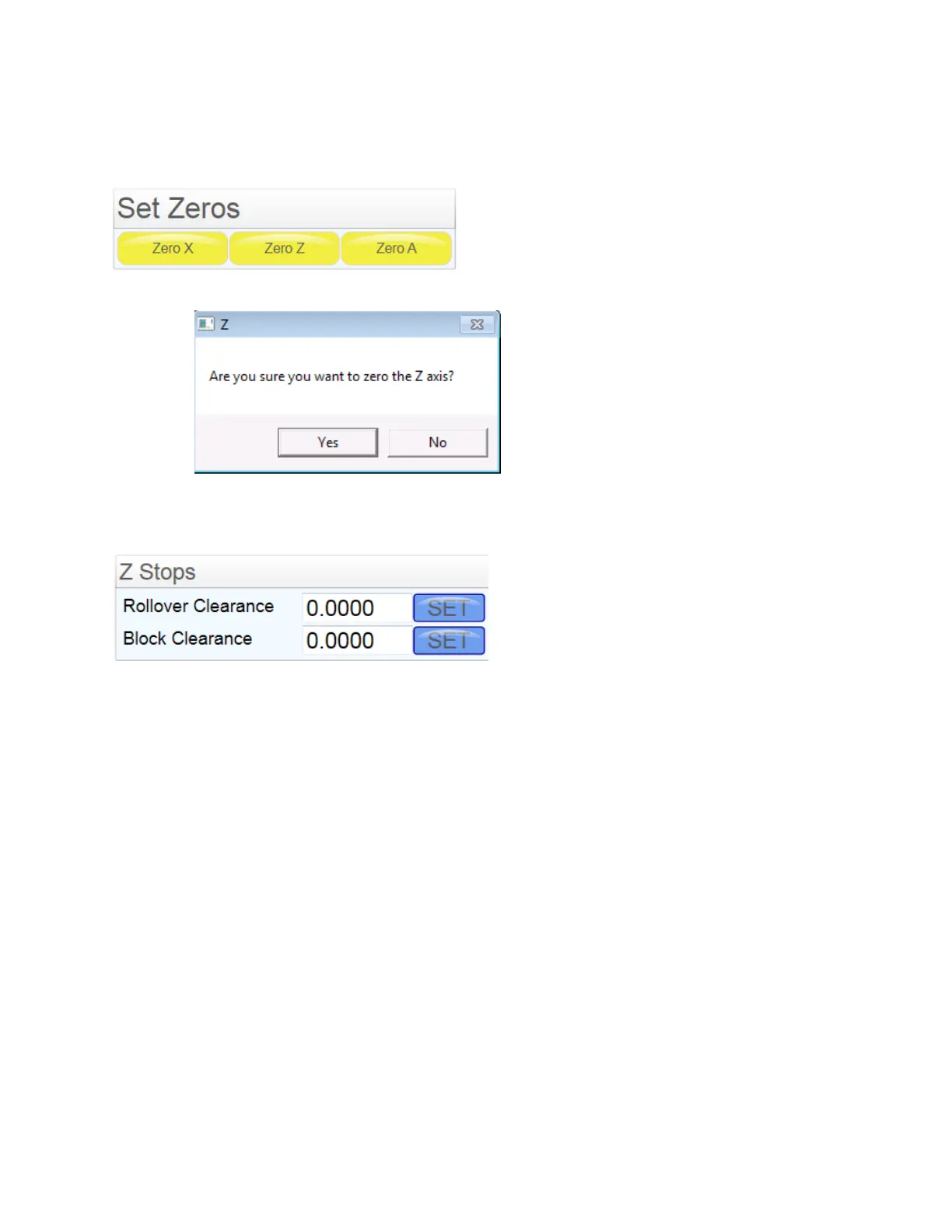

Touch the Setup tab to bring back the Setup screen.
In the Set Zeros section touch the Zero Z button.
You will get a conrm pop up for that. Touch Yes to continue.
Using the handwheel raise the hone head out of the cylinder out of the bore until the bottom clears the
deck by 1-2 inches. In the Z Stops section touch the SET button that is in the same line as the Block
Clearance value.
This will tell the machine how much to raise the hone head when it has completed honing a cylinder and
will be moving to next. If you are honing a V type block then raise the hone head high enough to clear the
block when the xture is moved from one bank to the other.
