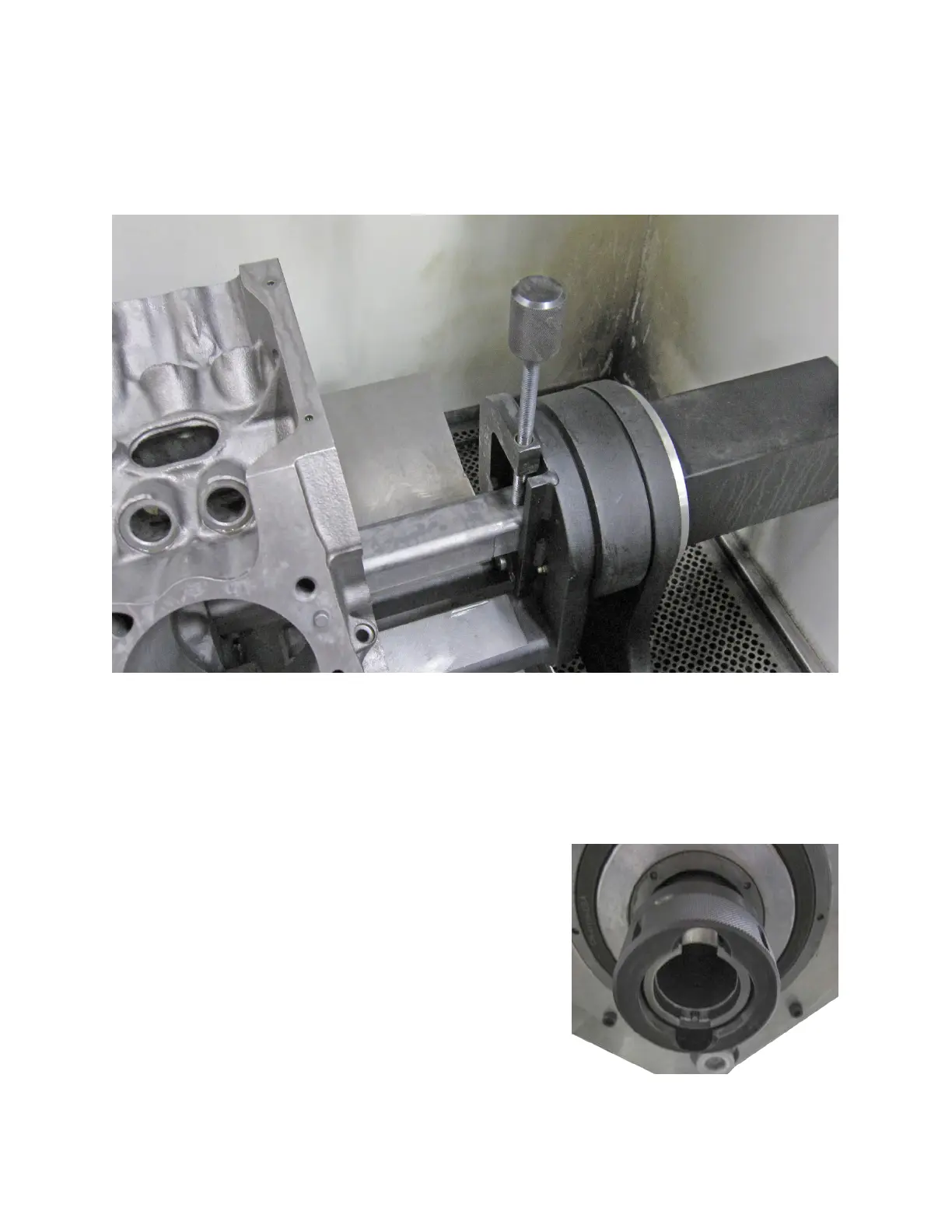

Use an appropriate method to place the block on the riser parallels with the front of the block facing left
or away from the control pendent. Take care to align the clamp tube with the receiver slots on the cradle.
Once the block is sitting on the riser blocks place the clamp bar lock downs over the tube and turn the
knobs until the clamp tube is secured.
Programing Set Up
Now that the block has been placed on the xture and tooling has been chosen, select the stones and
holders to be used in the rst process. Put holders and stones into the hone head and mount hone head
on spindle of machine.
The H85A machines use a standard Kwik Switch mount system for the hone heads.
To mount a hone head conrm that the locknut is in the open
position.
