Section 5 Operating Instructions H85A Manual
www.rottlermfg.com
5-21

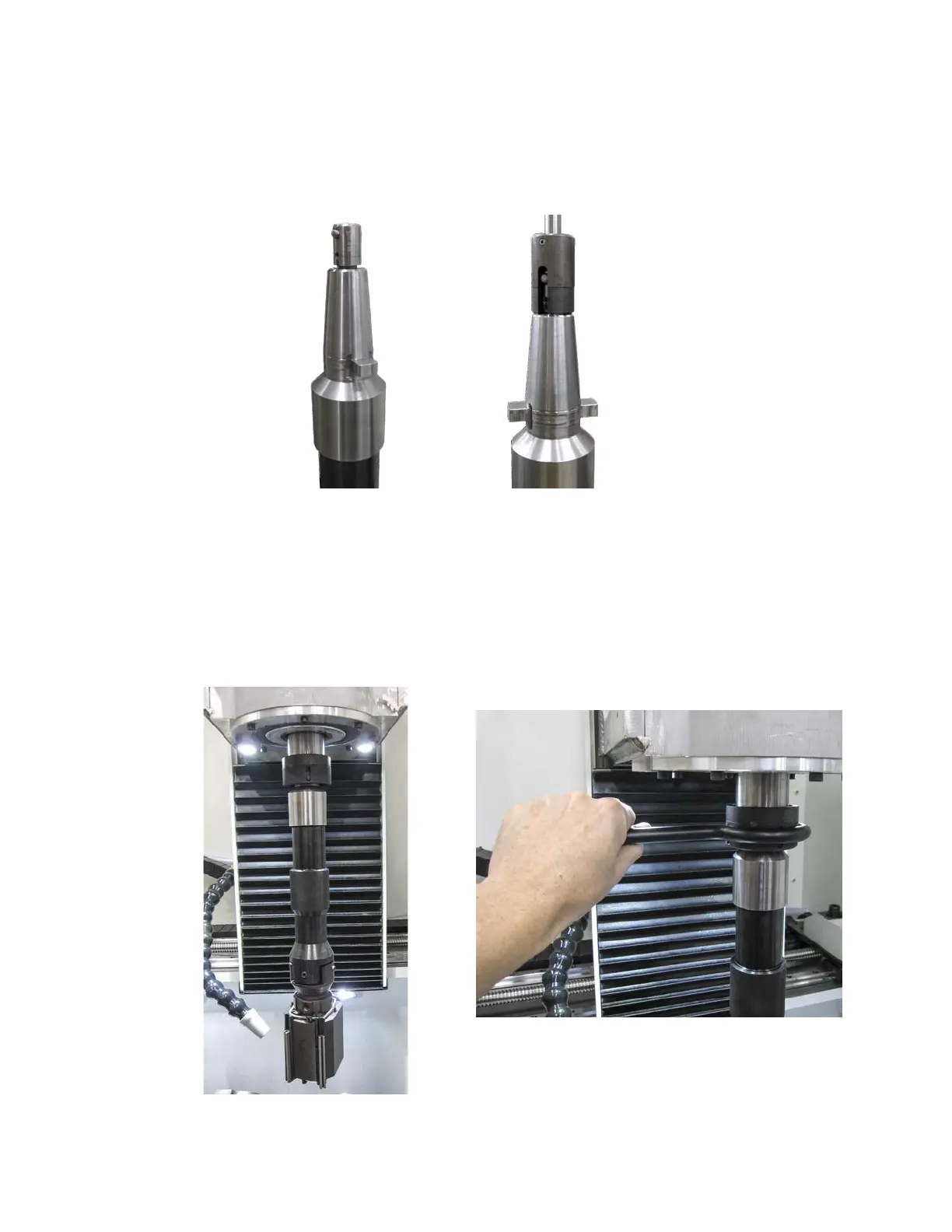

The hone head will have the standard locking tabs on the mounting adaptor and a drive coupler for
adjusting the stones. When mounting the hone head it will be necessary to align the drive coupler with its
receiver inside the drive spindle. Once they are aligned the adaptor tabs will t into the receiver slots. The
tabs will activate the release pin and the locknut will automatically turn to lock the hone head in place.
Due to design the nut will continue tighten during use. When it comes time to change or remove the hone
head it may become so tight that the release wrench will be needed to loosen the locknut. Turn locknut
clockwise to release the hone head.
