Section 5 Operating Instructions H85A Manual
www.rottlermfg.com
5-23
Creating a Program

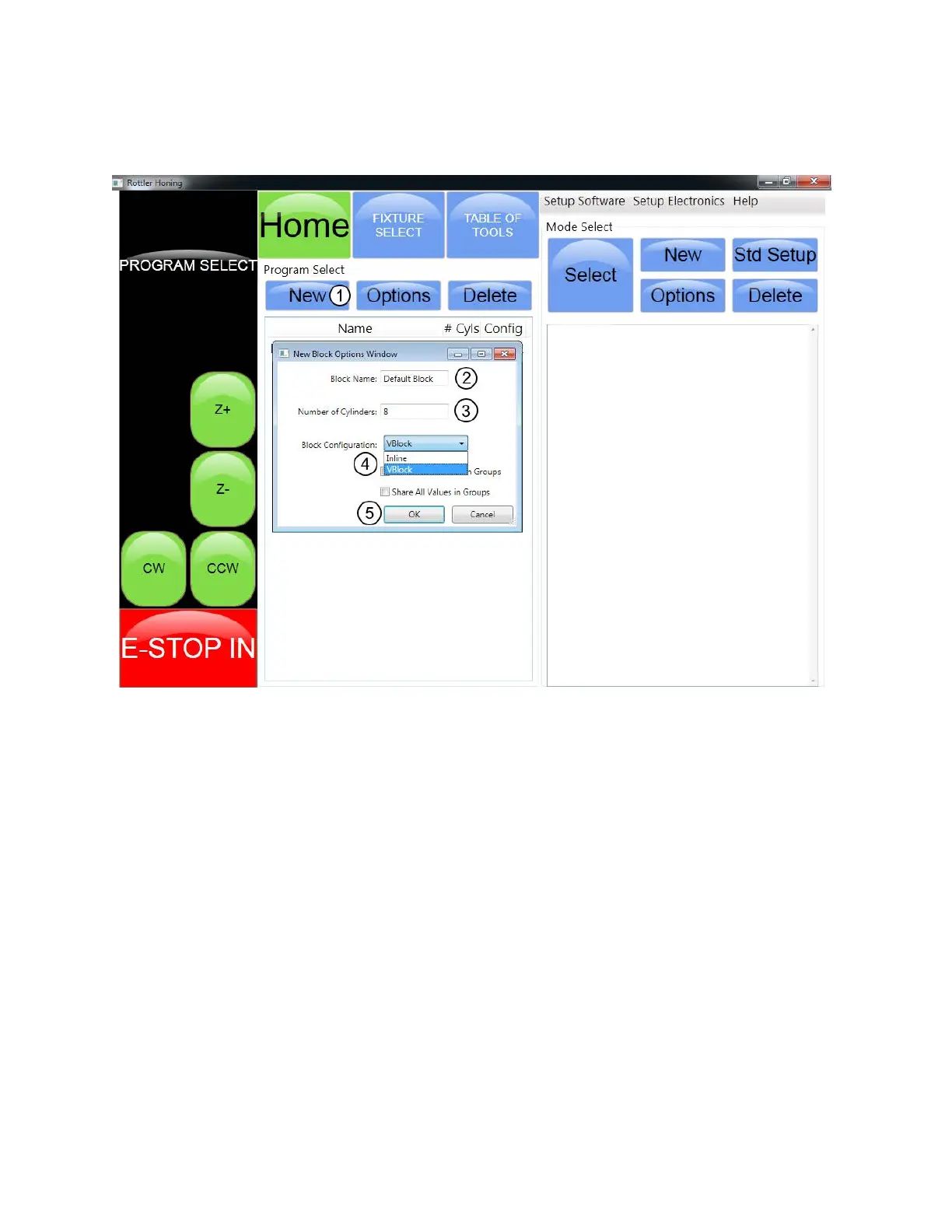

On the home screen under the Program Select touch the New button (1) and the New Block Options
Window will appear.
Name the block,(2) input number of cylinders (3) and choose VBlock or Inline.(4) Touch OK (5) when
nished.
The new block program title (1) will appear on the list.
For this tutorial we will use the standard Default Block and its settings.
