Rottler H85A - Priming Oil Lines

Section 6 Maintenance H85A Manual
www.rottlermfg.com
6-2
Priming Oil Lines
If there is ever the need to ll the oil lines that provide lubrication on the machine use the following
procedure.
Do this procedure with the E-STOP engaged to prevent any accidental
activation of machine functions.

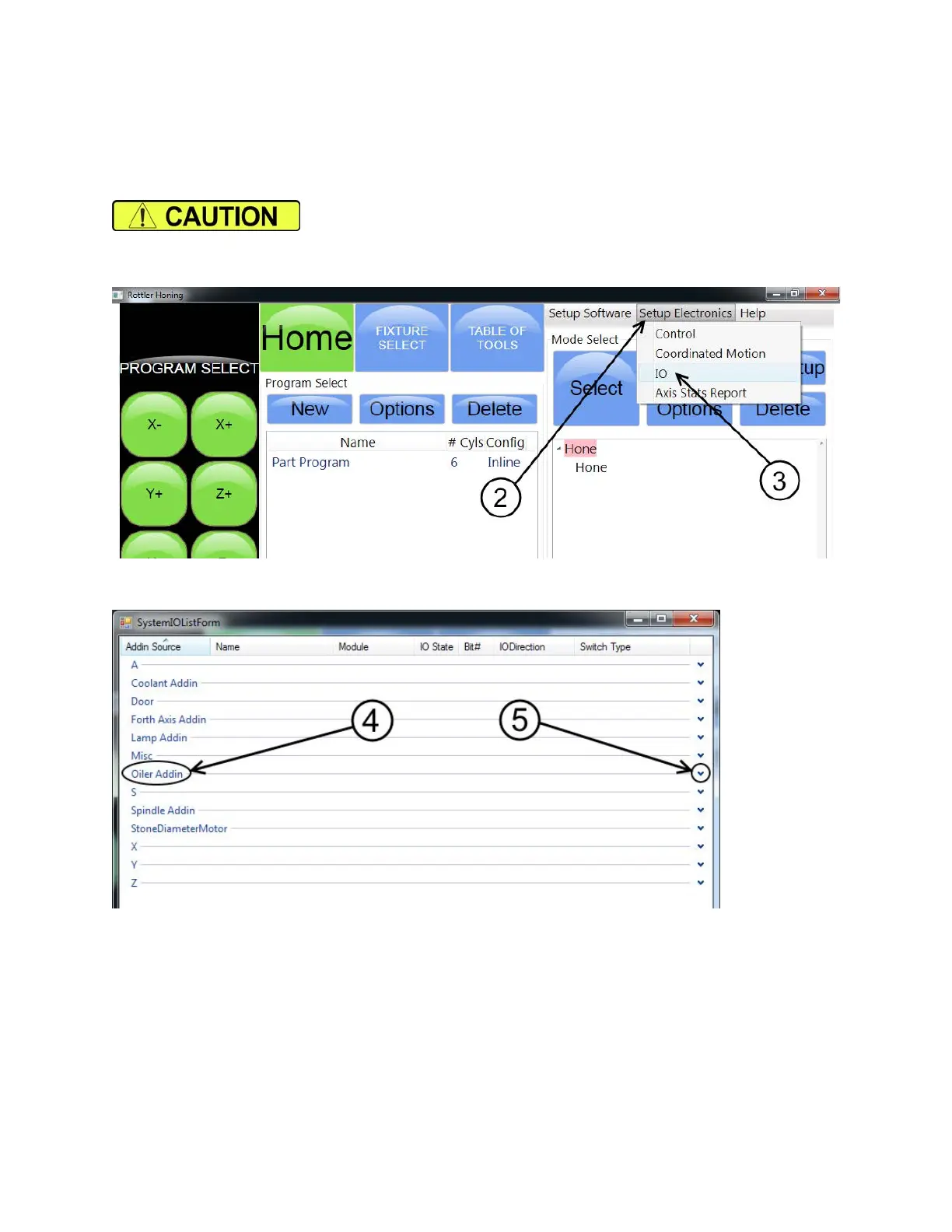

1 Go to the Home screen.
2 Click the Setup Electronics tab. (2)
3 Select the IO tab (3) from the drop down menu. This will bring up the following screen.
4 Go to the Oiler Addin line (4) and click the down arrow (5) to expand the section.
