Section 5 Operating Instructions H85A Manual
www.rottlermfg.com
5-16

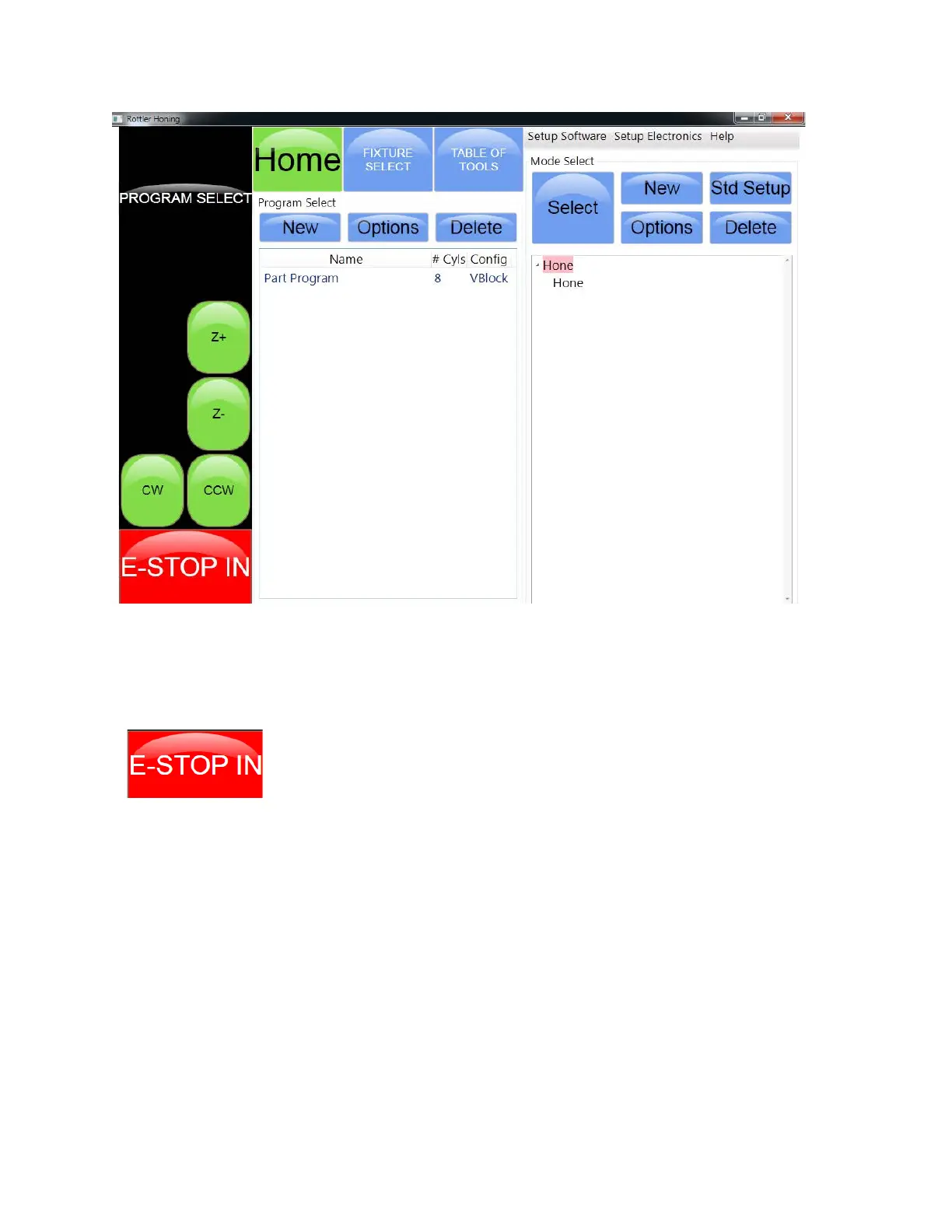

This is the Home screen. Using the jog buttons touch the X+ button to move the carriage to the right side
of the machine. Touch the Z+ button to raise the spindle all the way to the top. Now the machine is in its
block loading position. Engage the E-STOP by pressing the red E-STOP switch.
The Stop Machine button now reads E-STOP IN. It is now safe to work inside the
tank area.
