Getting to Know the Access Point Features
ZoneFlex 7782 Access Point
Ruckus Wireless Outdoor AP 100.1.0 User Guide, 800-70863-001 Rev A 40
ZoneFlex 7782 Access Point
NOTE The 100.x AP base images support standalone mode and FlexMaster (FM)
WLAN manager operation. The RuckOS-compatible images only support SCG,
vSCG, and SZ controllers. The ZD-compatible images only support ZD controllers.
The 7782 requires a minimum of AP base image 100.0.0 and later to operate, or
SCG 1.1.1 and later, vSCG 2.5 and later, RuckOS 3.2 and later, or ZF 9.5.1 and
later to operate.
Figure 16 identifies the connectors and LEDs on the 7782 Omni AP. Ta b l e 1 4
describes the LEDs and connectors.

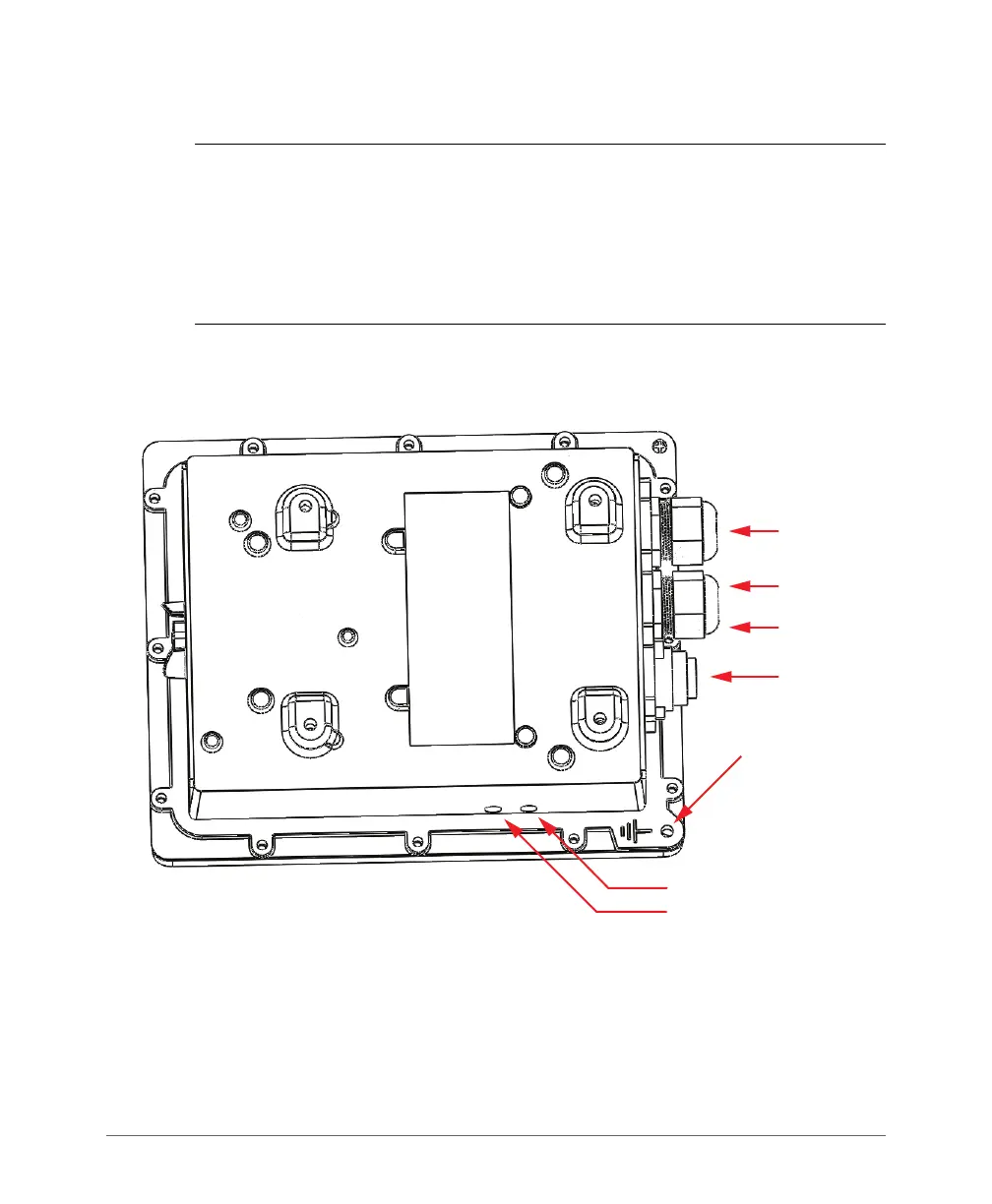

Figure 16. 7782 connectors and LEDs - bottom view
PoE IN
PoE OUT
AC IN
Earth Ground
Screw
STATUS LED
POWER LED
Reset Button
(inside case)
