MCA-C3 Test Procedure
Page 23 of 77

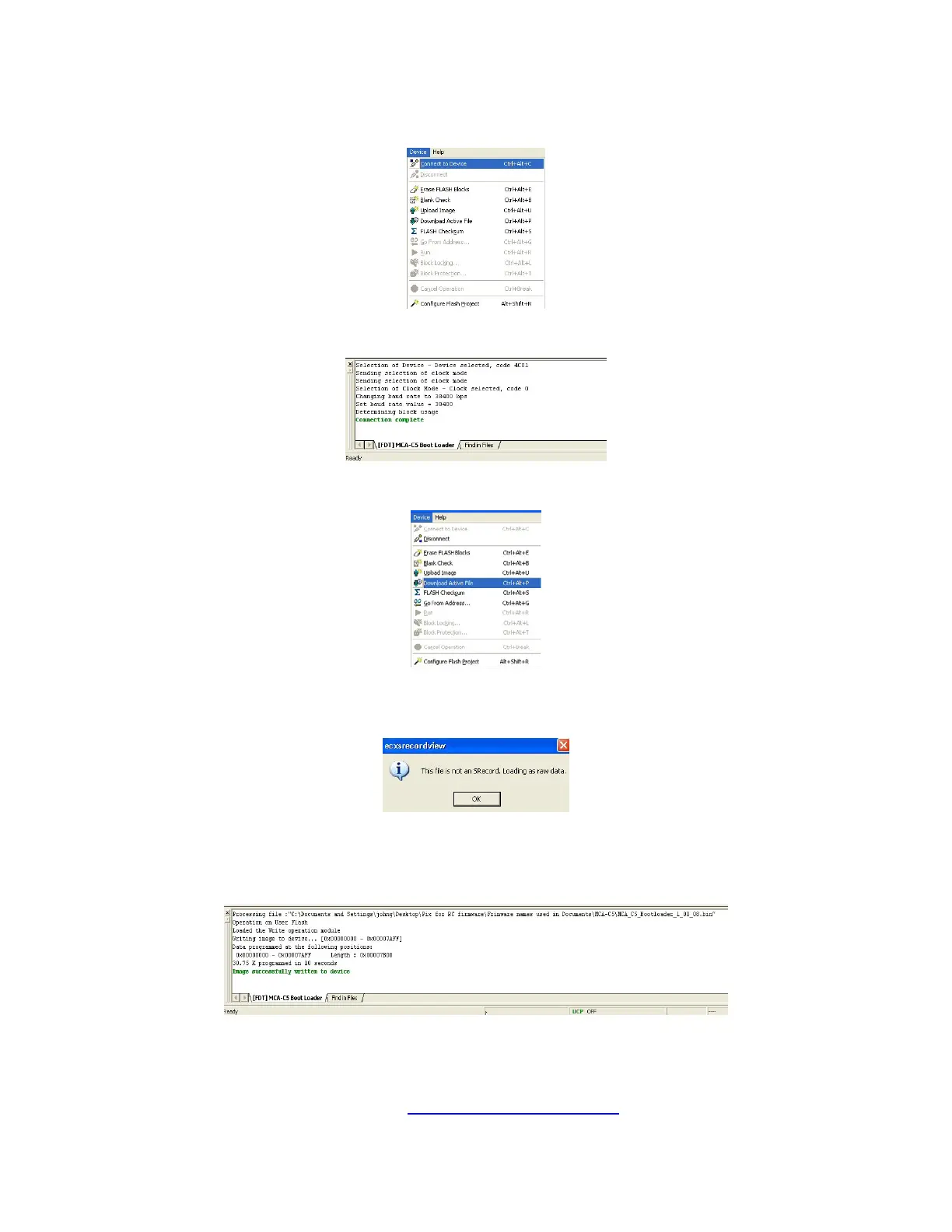

9. Click “Device” then “Connect to Device”.
10. The bottom window will display the following:
11. Click “Device” then “Download Active File” menu.
12. If you see a dialog similar to “This file is not a SRecord” click ok to
continue. This may display several times. Click “OK” each time.
13. You will observe a progress bar at the bottom of the FDT 4.01 window.
The bottom window will display in green when the MCA-C3 has been
successfully programmed.
14. Turn off the MCA-C3.
15. Move the Controller ID Switch to the position 1.
16. Close FDT 4.01.
17. Continue by performing the “Russound Device Update
” section.
