MCA-C3 Test Procedure
Page 50 of 77

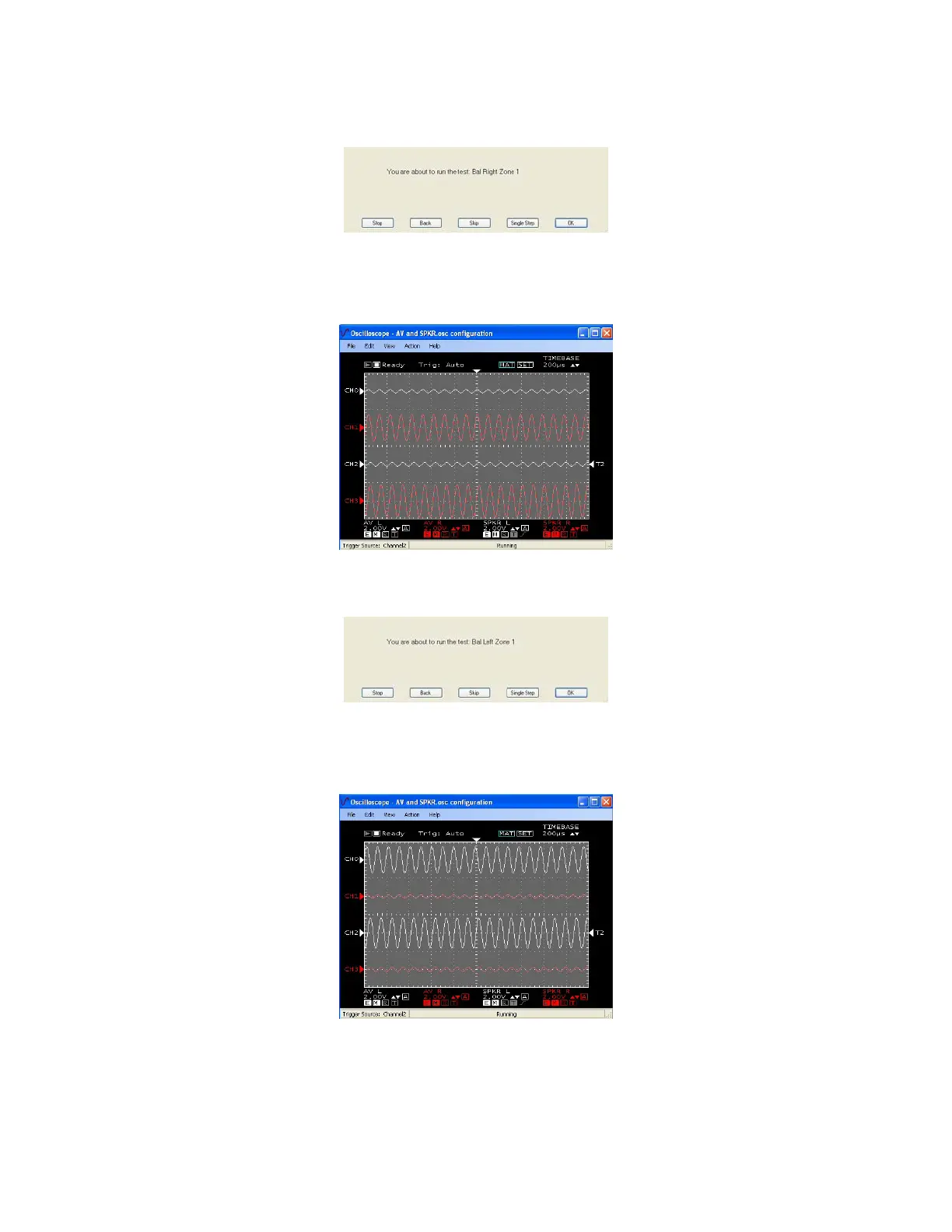

4. Press the space bar at the “Bal Right Zone X” dialog.
The Oscilloscope will display the Right Channel sine wave.
The Left Channel will be at a significantly reduced level.
The Right Channel will be approximately 1.8V P-to-P, this is ok.
Time base set to observe 10khz sine wave
5. Press the space bar at the “Bal Left Zone X” dialog.
The Oscilloscope will display the Left Channel sine wave.
The Right Channel will be at a significantly reduced level.
The Left Channel will be approximately 2V P-to-P, this is ok.
Time base set to observe a 10khz sine wave
