RYTEC System 4 User Manual

SYSTEM START-UP—ACCESSING PARAMETERS
21
ACCESSING PARAMETERS
NOTE: To access Operator Level and Service
Level parameters, the control board ser-
vice switch must be in the ON position.
(See Figure 25.)

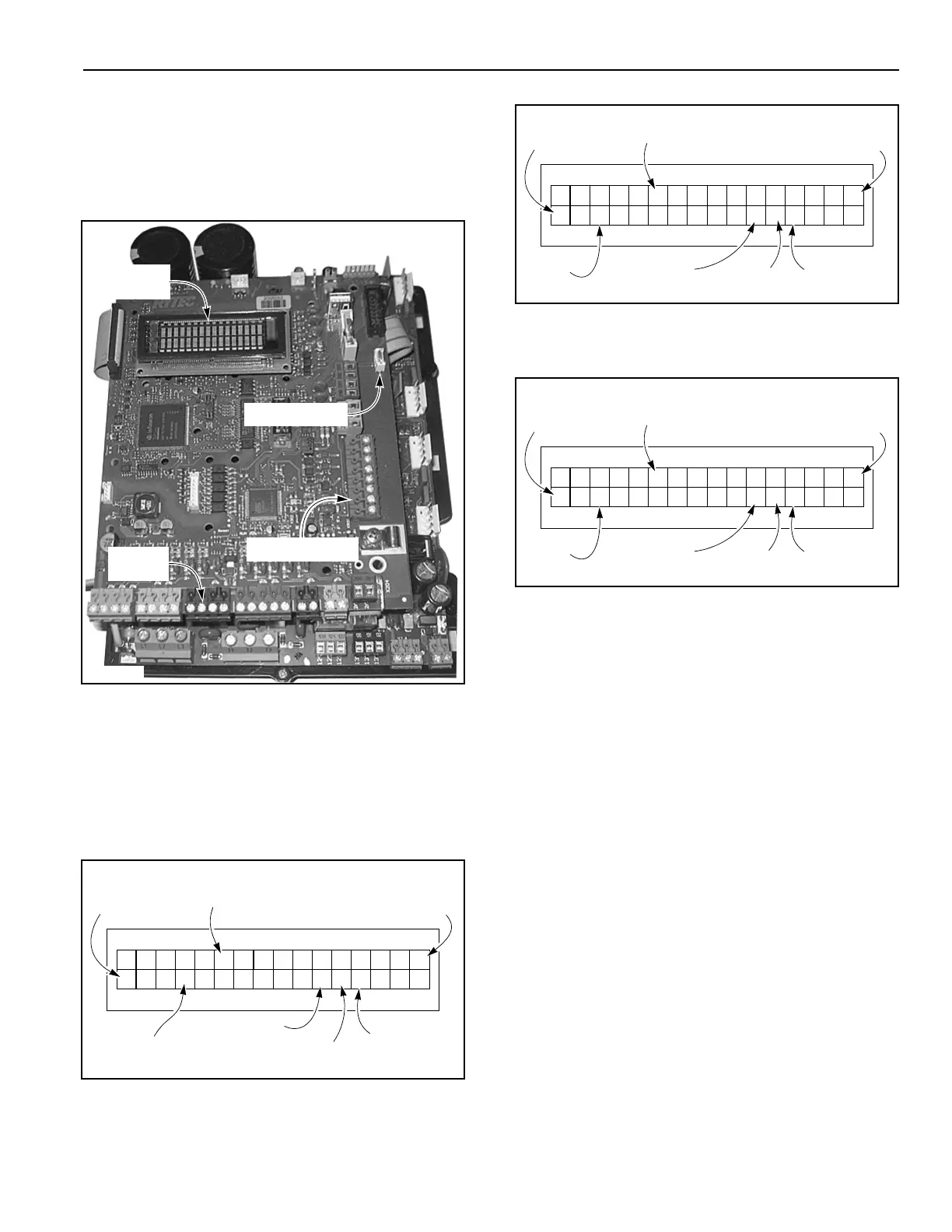

Figure 25
Parameter Messages
A scrolling display on the control panel (as shown in
Figure 26) displays all parameter settings when the con-
trol system is placed in a service level (Operator Level
or Service Level 2). Figure 26 details a
typical parameter.
Figure 26
For example, Figure 27 details door limit set-up param-
eter 210 (P.210).
Figure 27
Figure 28 details password parameter 999 (P.999).
Figure 28
Navigating Parameters
The following procedure explains how to navigate
through the parameters. The procedure is the same
regardless of the service level.
1. To navigate the parameters:
• Simultaneously press and hold the up (▲) and reset
(●) keys for approximately three seconds. The con-
trol system will enter the Operator Level and display
the last-saved operator parameter. (To access the
upper service level(s), see “Accessing Service
Level 2” on page 22.)
• Continually press the up (▲) or down (▼) key to
loop through the list of available parameters. Hold-
ing either key speed-scrolls you through the list.
• Press the reset (●) key to access the displayed
parameter. The parameter is accessed when the
cursor jumps over to the currently saved value for
that parameter. (See Figure 29.)
• Continually press the up (▲) or down (▼) key to
loop through the list of available parameter values.
Holding either key speed-scrolls you through the
list.
A5400016
Scrolling
Display
Terminal Block(s)
Ter m i na l
Screws
Service Switch
=
P:
Opertor Level (O)
Service Level 2 (S)
Parameter
Name or Group
Three-Digit
Parameter
Number
Parameter
Status
Unit
Read/Write (=)
Read Only (#)
Parameter
Value
i
=
P:Posi t ion n
g
s
210 0 #
–
9
Operator Level (O)
Service Level 2 (S)
Parameter
Name or Group
Three-Digit
Parameter
Number
Unit
Parameter
Value
Cursor
Parameter
Status
=
P:Password
999 0 #
–
9
010
Parameter
Value
Cursor
Operator Level (O)
Service Level 2 (S)
Parameter
Name or Group
Three-Digit
Parameter
Number
Unit
Parameter
Status
