RYTEC System 4 User Manual

SYSTEM START-UP—WIRELESS REVERSING EDGE
25
Parameters for Wireless System
The control system for the wireless reversing edge has
been programmed at Rytec. However, field adjustments
may be required. Below is a list of the applicable param-
eters and fault codes associated with the wireless
reversing edge system.
NOTE: Do not make any changes to the wireless
system until you have contacted Rytec Cus-
tomer Support at 800-628-1909. Access for
programming parameters can be found in
the Rytec System 4 Drive & Control manual
that is shipped with the door in the small
parts carton.
Table 2
Parameters
P:F00 = Activates the wireless system
1 = On, 0 = Off
P:F01 = Packet timeout before “edge trip” occurs
Adjustment made in milliseconds = 6 ms to 250 ms
NOTE: 50 ms is default.
P:F05 = Channel group
1–10 Factory setting (can only be viewed in parame-
ter mode)
P:F07 = Mobile unit address
• Unique to each unit
• Hexadecimal number located on the transmitter
unit in the bottom bar (See Figure 38.)

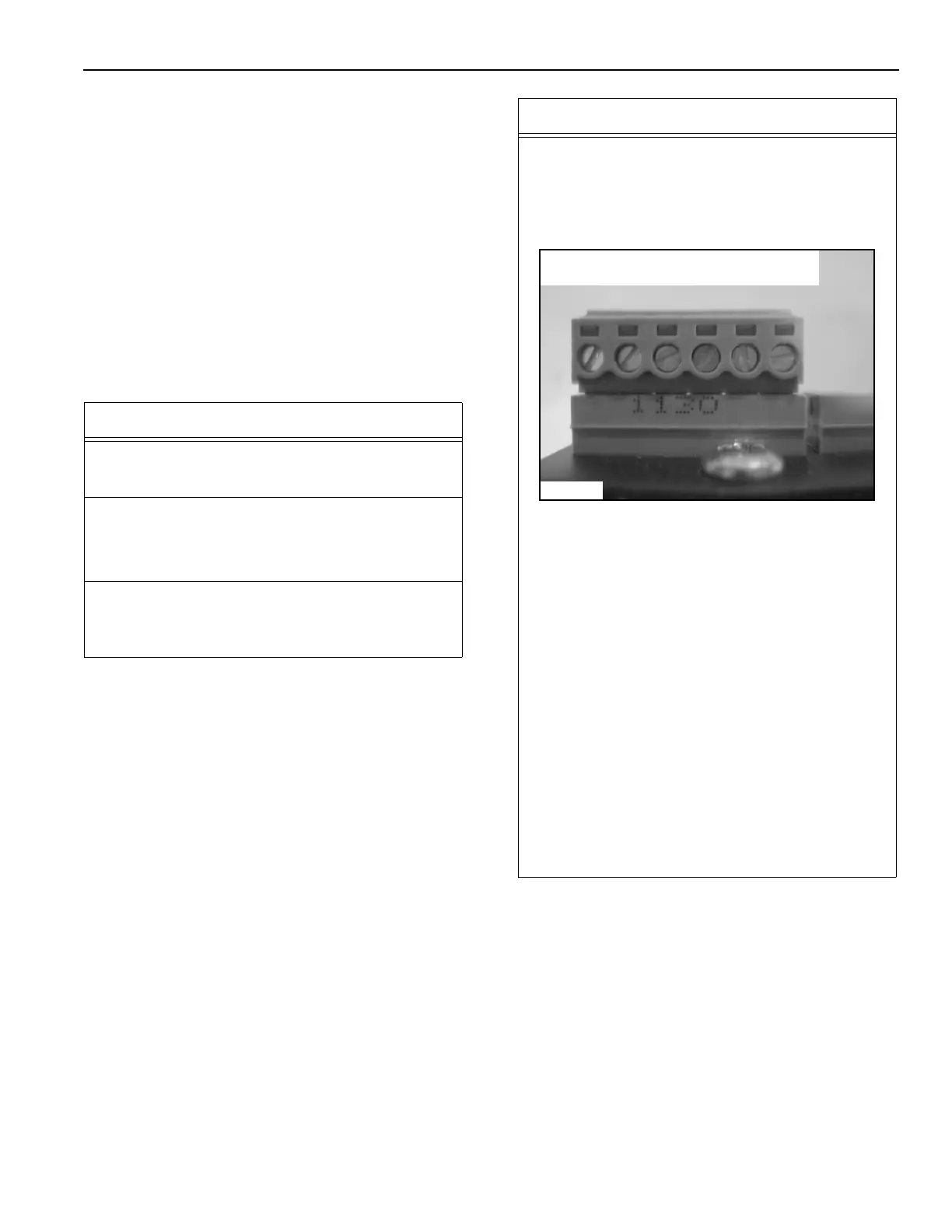

Figure 38
IMPORTANT: The hexadecimal number on
the transmitter unit must be
facing to the left when installed
in the bottom bar. When facing
the front of the door, the Rytec
decal will be seen to the right
of the mobile unit.
After entering the address, it
is necessary to check that the
controller is connected and
working with the selected
mobile unit. Since the number
system is hexadecimal, it is
possible to have letters
included in the mobile unit
address. For example: 1C46,
89D3, and 65B1.
Parameters
A2500250
NOTE: Hexadecimal address should be the
same value as Parameter P:F07.
