SECTION III USE
Working with draft control
(ploughs, rippers, trenchers, etc.)
Place green lever on No. 4 or 5 of its own sector.
Pull yellow lever into blue sector marked with "FLOAT" so as to obtain
quick implement penetration sinking into the ground.
Pull the yellow lever in the green sector to the edge of the blue sector.
Move the green lever forwards until the desired working depth is obtained,
then lock it in place through the special adjustable stop screw so as to
obtain the same working depth during successive runs.
At the end of the furrow to raise the implement from the ground pull the
yellow lever fully backwards against its stop. When starting a new furrow
push the yellow lever into blue sector "FLOAT" and leave it there until the
implement has attained the desired working depth, after which
immediately move it back into green sector.

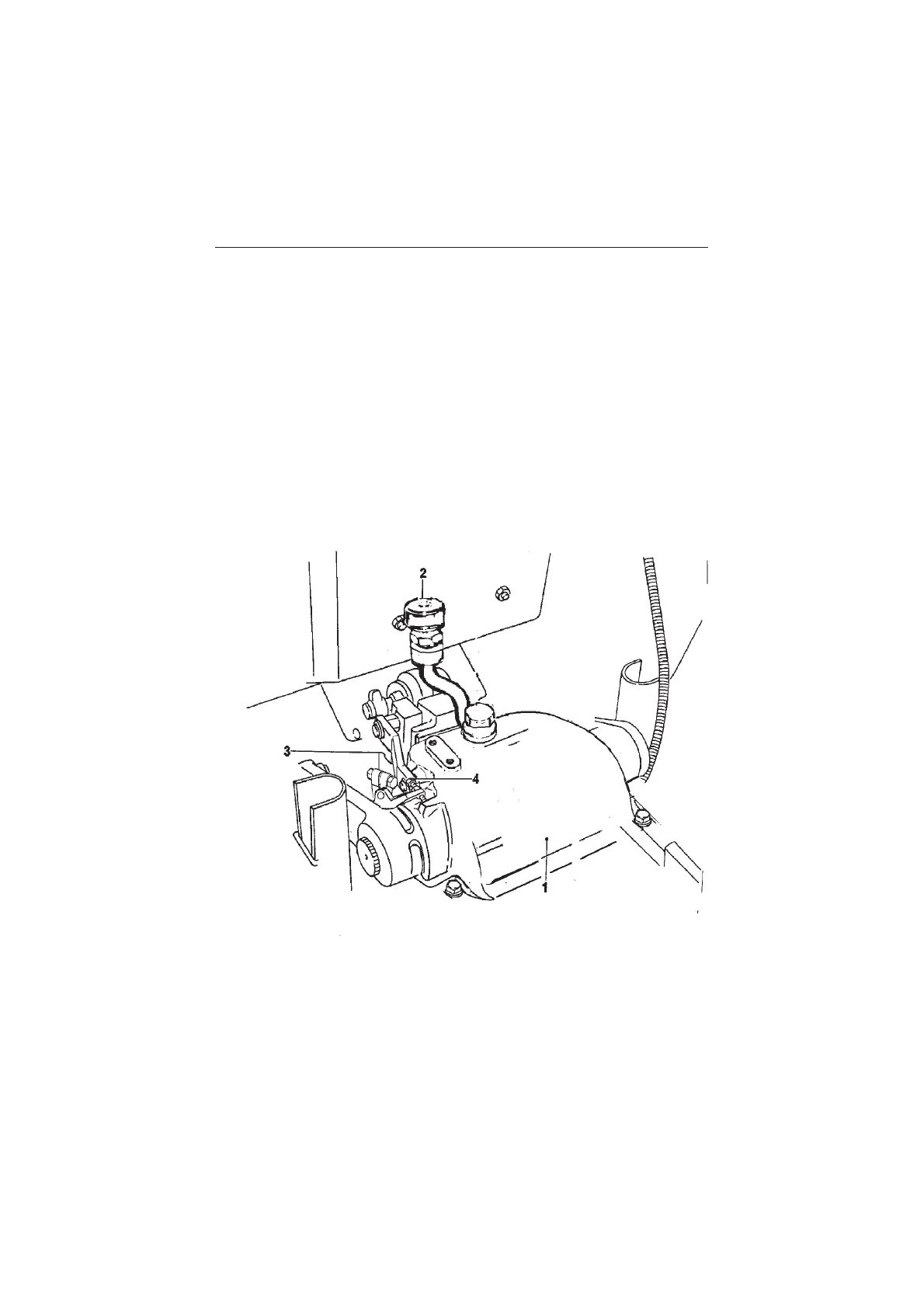

Three point lift housing and oil fill
1 - Three point hydraulic lift housing.
2 - Hydraulic oil fill cap & breather for gearbox power lift and hydraulic system.
3 - Draft control sensing link.
4 - Position control lever (yellow) adjusting screw.
48
