SECTION VI ELECTRICAL SYSTEM
Front sidelights and direction indicators mounted on the sides of the
tractor

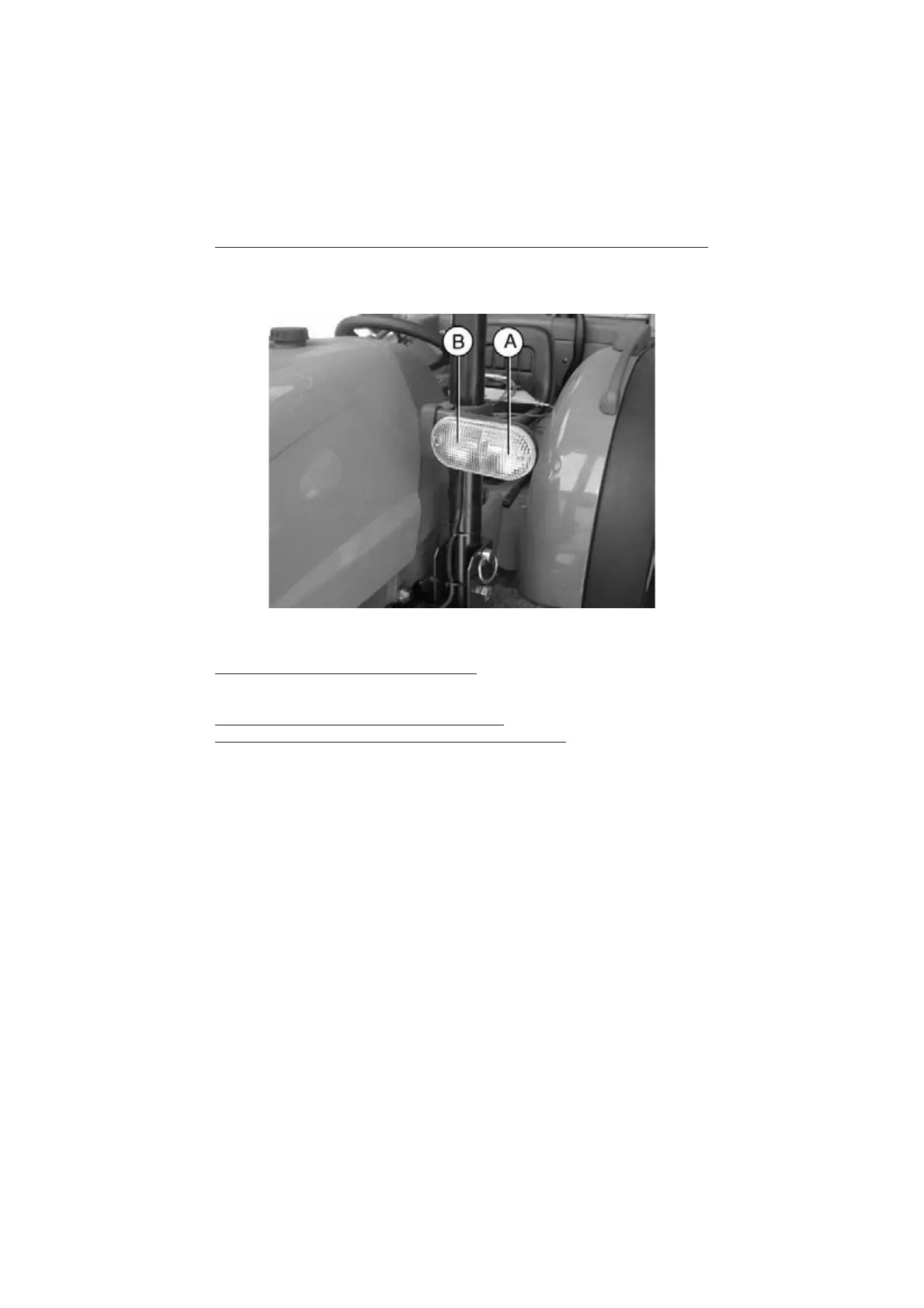

The light clusters mounted on each side of the tractor contain two bulbs:
A
- sidelights B - direction indicators.
Bulb: DIN 72601-R5W 12V 5W - sidelight
Bulb: DIN 72601-P21 12V 21W - direction indicator
To replace either of the bulbs, proceed as follows:
–
remove the two screws securing the yellow-white lens.
–
gently remove the lens to access the bulb.
–
apply light pressure and turn the defective bulb counter-clockwise as
far as it will go.
–
remove the bulb.
–
insert the new bulb, apply light pressure and turn it clockwise as far as
it will go.
–
replace the lens and the two retaining screws.
174
