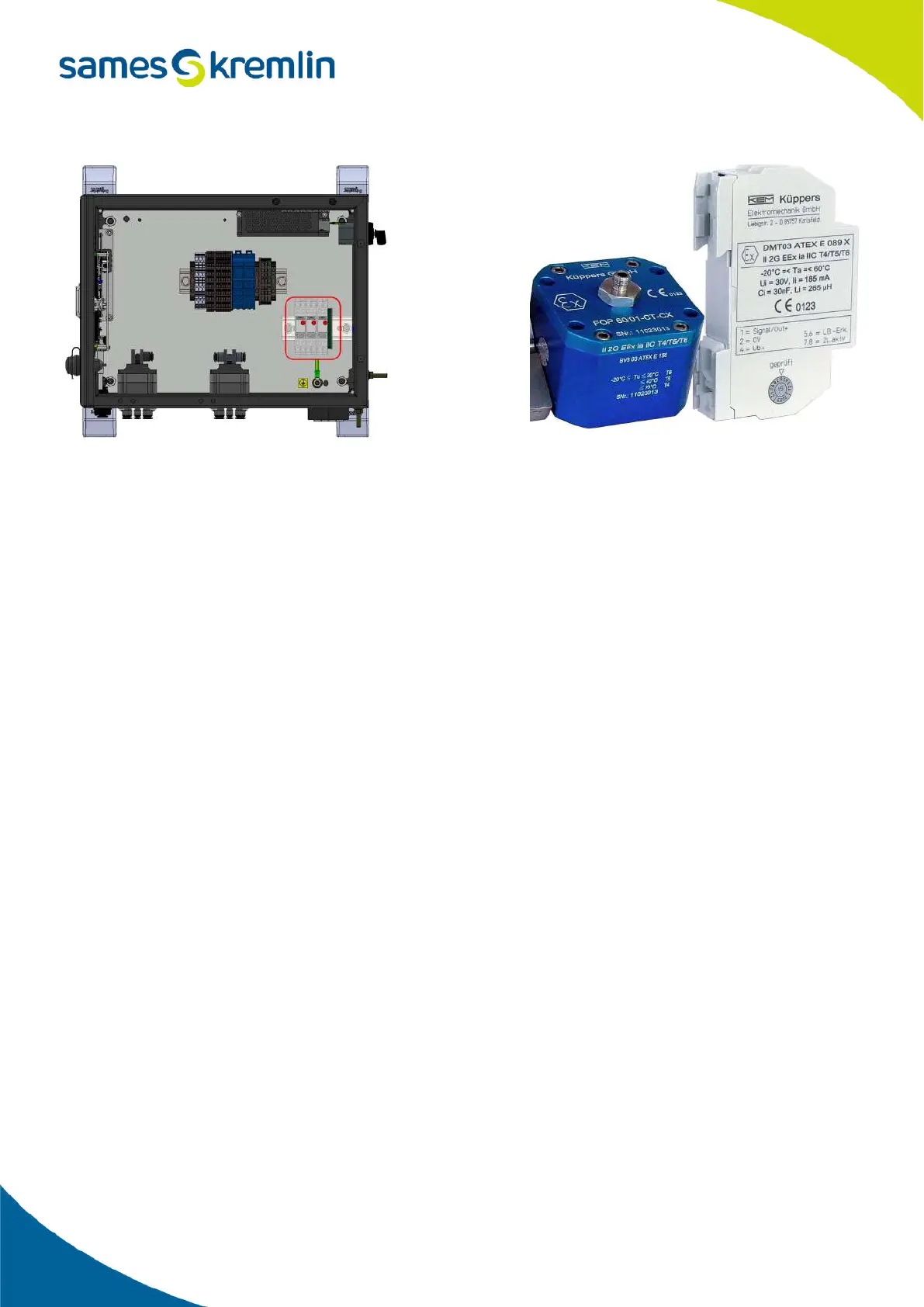

The cable of the flowmeter A (base) is connected by screwing on the one hand to the FOP sensor and on the other
hand to the fiber optic receiver RFO1.
The cable of the flowmeter B (catalyst) is connected by screwing on the one hand to the FOP sensor and on the
other hand to the fiber optic receiver RFO2.
The cable of the flowmeter C (diluent) is connected by screwing on the one hand to the FOP sensor and on the other
hand to the fiber optic receiver RFO3.
