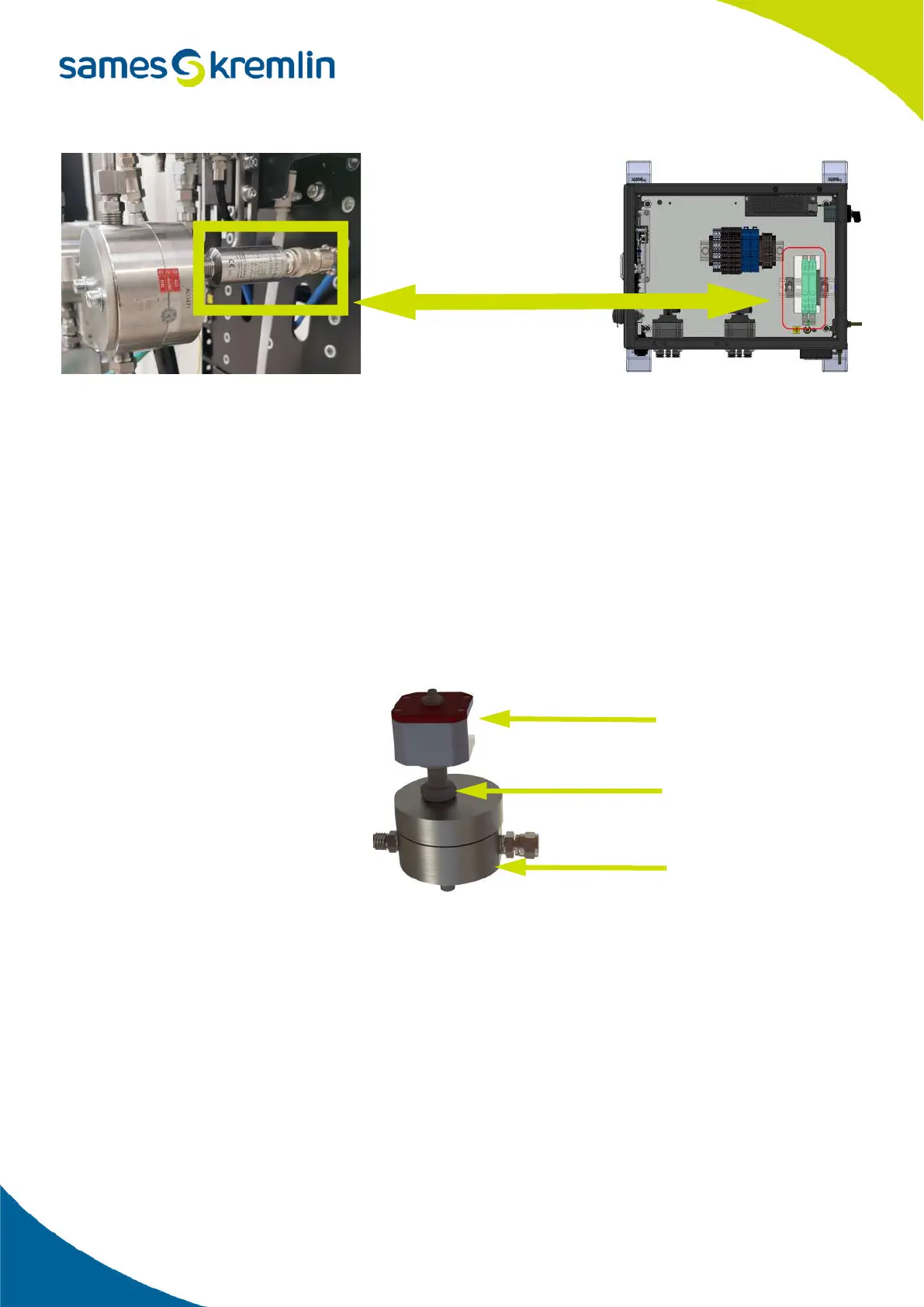

• The cable of the flowmeter A (base) is connected to the intrinsic barrier 053V1.
• The cable of the flowmeter B (catalyst) is connected to the intrinsic barrier 053V2.
• The cable of the flowmeter C (diluent) is connected to the intrinsic barrier 053V3.
For each cable, wire 1 of the cable connects to terminal 1 of the barrier, wire 2 connects to terminal 3 and wire 3
connects to terminal 4.
Optical fiber version
These flowmeters are used in the case of an electrostatic application with a water-soluble product. Indeed, during
these applications, the whole plate must be electrostatically charged, it is necessary to isolate completely this plate.
The flowmeter used is the same as for the ATEX and NON ATEX versions but the sensor will be different, in this case
it is a sensor where the information is transmitted via an optical fiber. The sensor is screwed in the same way as the
other sensors
The cables are marked to facilitate the connection of each flow meter. The connector is screwed on the sensor on
one side and on the other side the cable is connected to the intrinsic barriers located inside the box.
Measuring sensor
Locknut
Flowmeter
