35
Member of Exel group
DRT582165110
A - 2023/03

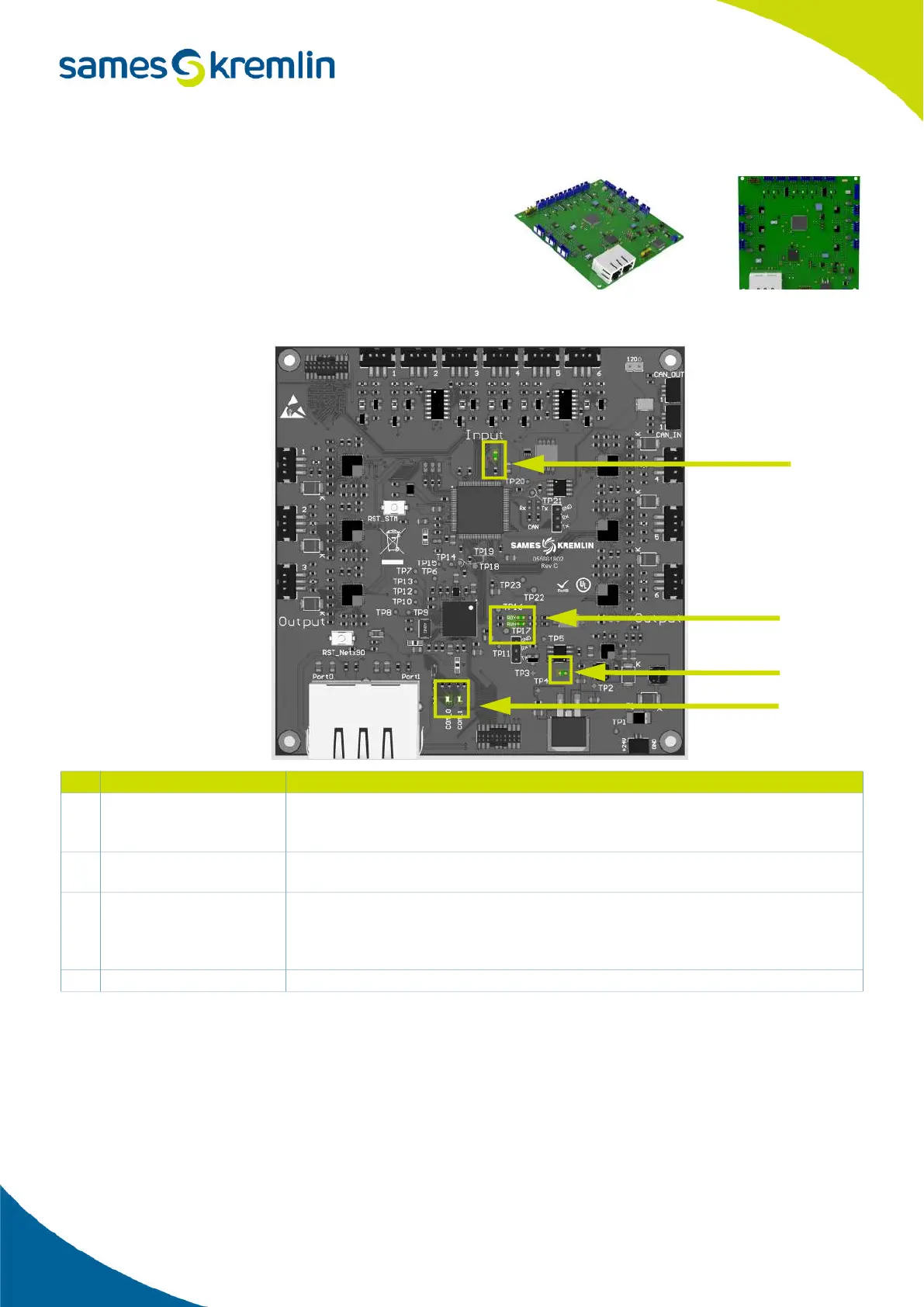

2.3.2.2. Presentation of the ANAB card
The ANAB (Analog Board) is a daughter board, it allows the
control of analog device (proportional valve…) and the reading of
analog value (temperature sensor, pressure sensor…).
LED description
# LED status Description
1 red LED
When ON it signals that the program is running.
It blinks when 3 times slowly during the board boot.
It blinks fast during the board identification (See. Identify in Maintenance on CCB).
2 LED RUN (green)
This LED indicates the state of the EtherCAT chip. When ON it signals that the chip is
operational to run.
2 LED RDY (orange)
When ON (whether it blinks or flashes or is on), it signals that the EtherCAT chip is not
running.
• User should check that both switches (See 2) are set to OFF and reboot the cabi-
net
3 red LED This indicates that the card is powered on.
1
2
3
4
