38
Member of Exel group
DRT582165110
A - 2023/03

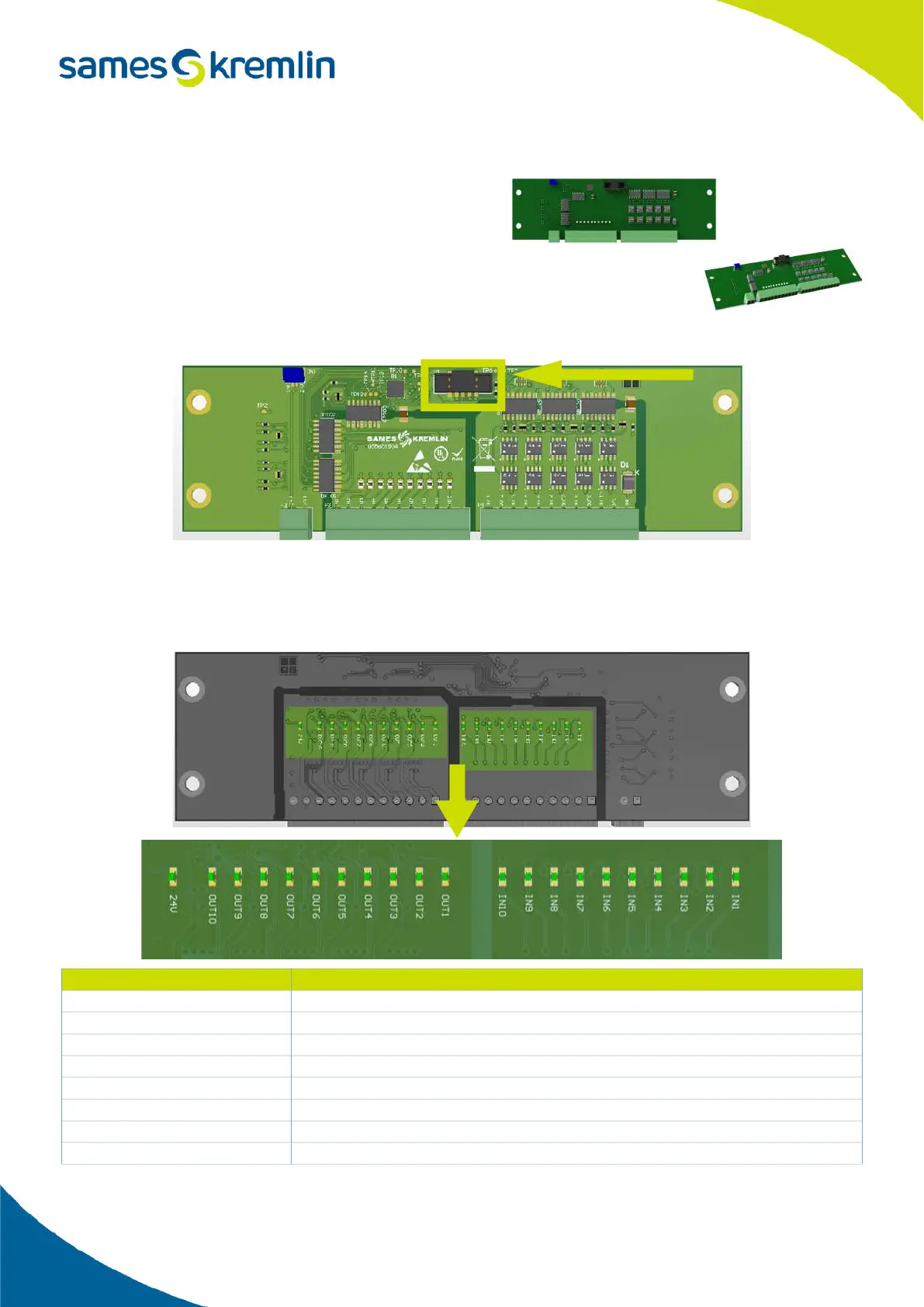

2.3.2.3. NIOB card description
The NIOB (New Input Output Board) is a board with 10 digital
inputs (24V) and 10 digital outputs (24V).
On the Cyclomix Evo the board can be found in the deported
cabinet. It is used to capture the input signal received when the
user select a button (using the magnet).
It is connected to the mother board (CCB) via a ribbon cable.
LED description
This board has no real status LED. The LEDs indicate if an I/O is powered.
LED status Description
24 V (red) The outputs are powered (output will be able to give 24V)
OUT1 (green) OUT1 is driven to 24V
OUT2 (green) OUT2 is driven to 24V
OUT3 (green) OUT3 is driven to 24V
OUT4 (green) OUT4 is driven to 24V
OUT5 (green) OUT5 is driven to 24V
OUT6 (green) OUT6 is driven to 24V
OUT7 (green) OUT7 is driven to 24V
