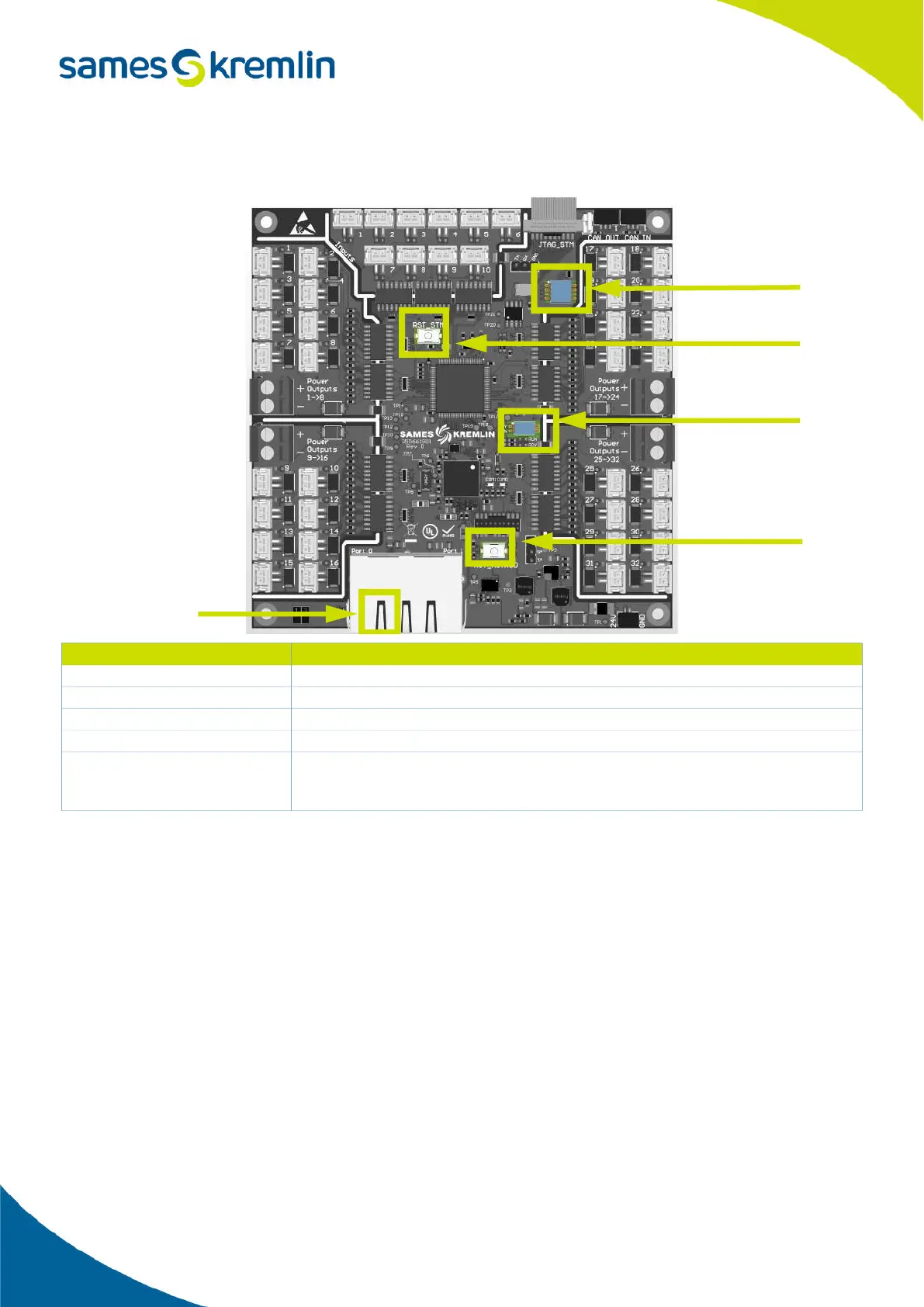

Position of the connectors
Connectors status Description
1 Main chip reset button
2 EtherCAT switches
3 EtherCAT chip (netx90) reset button
4 EtherCAT input port
5
Board switches:
• All set to OFF for the main DIOB.
• At least one set to ON for DIOB extension board (DIOB_T).
5
1
2
3
4
