Features
IP Ethernet Module

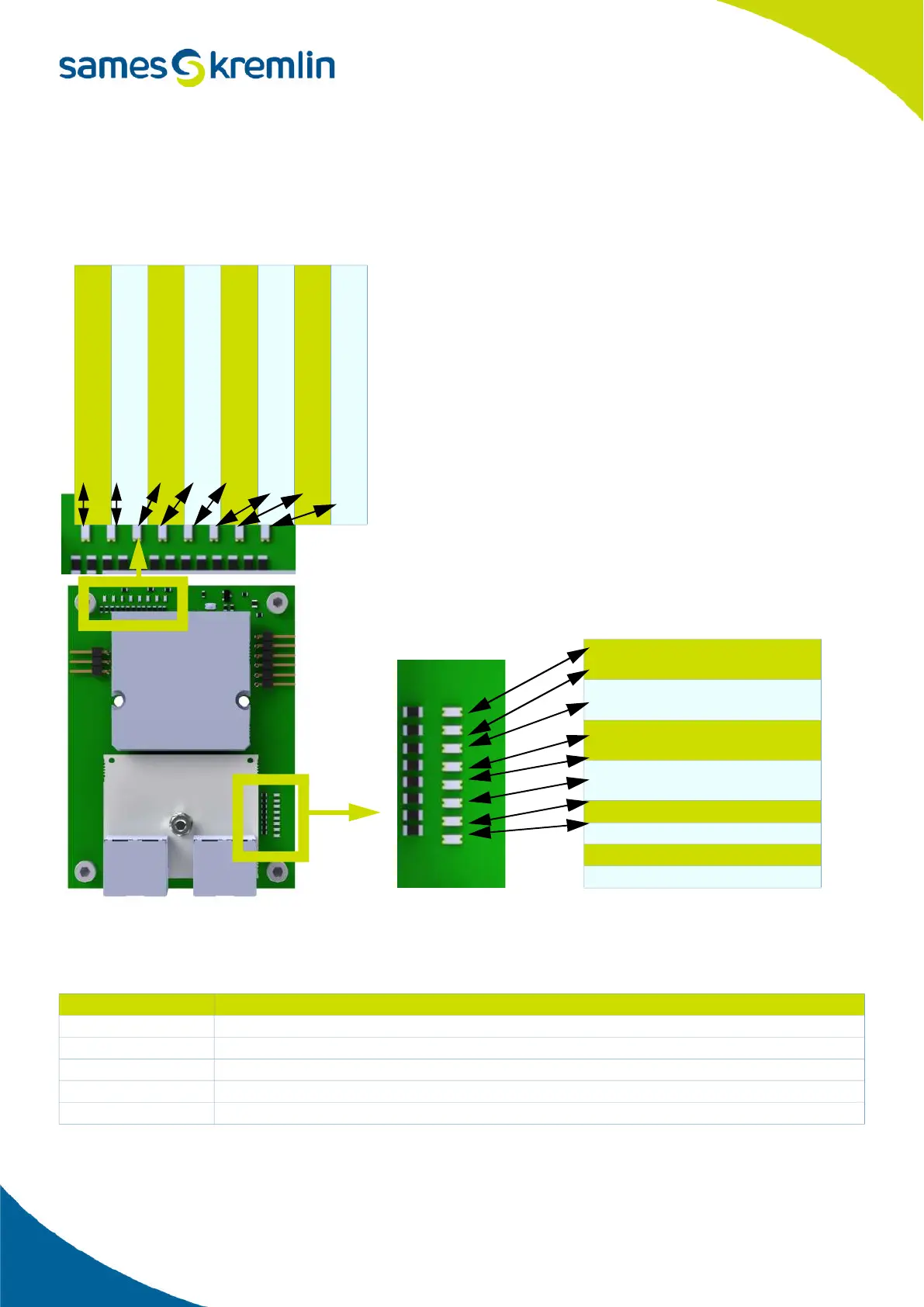

Front view of the RJ45 module
The Ethernet cable can be connected to both ports.
Ethernet IP LED
Network status LED
LED status Description
Off No power supply or no IP address
Green Online, one or more established connections (CIP Class 1 or 3)
Green, flashing Online, no connection established.
Red Duplication of IP address, fatal error.
Red, flashing One or more connections have been interrupted (CIP class 1 or 3).
Network status port 2 yellow
(4B)
Network status port 2 green
(4A)
Network status port 1 yellow
(3B)
Network status port 1 green
(3A)
Module status red (2B)
Module status green (2A)
Module status red (1B)
Module status green (1A)
Network status red (1B)
Network status green (1A)
Module status red (2B)
Module status green (2A)
Network status port 1 yellow (3B)
Network status port 1 green (3A)
Network status port 2 yellow (4B)
Network status port 2 green (4A)
