CC-linkModule

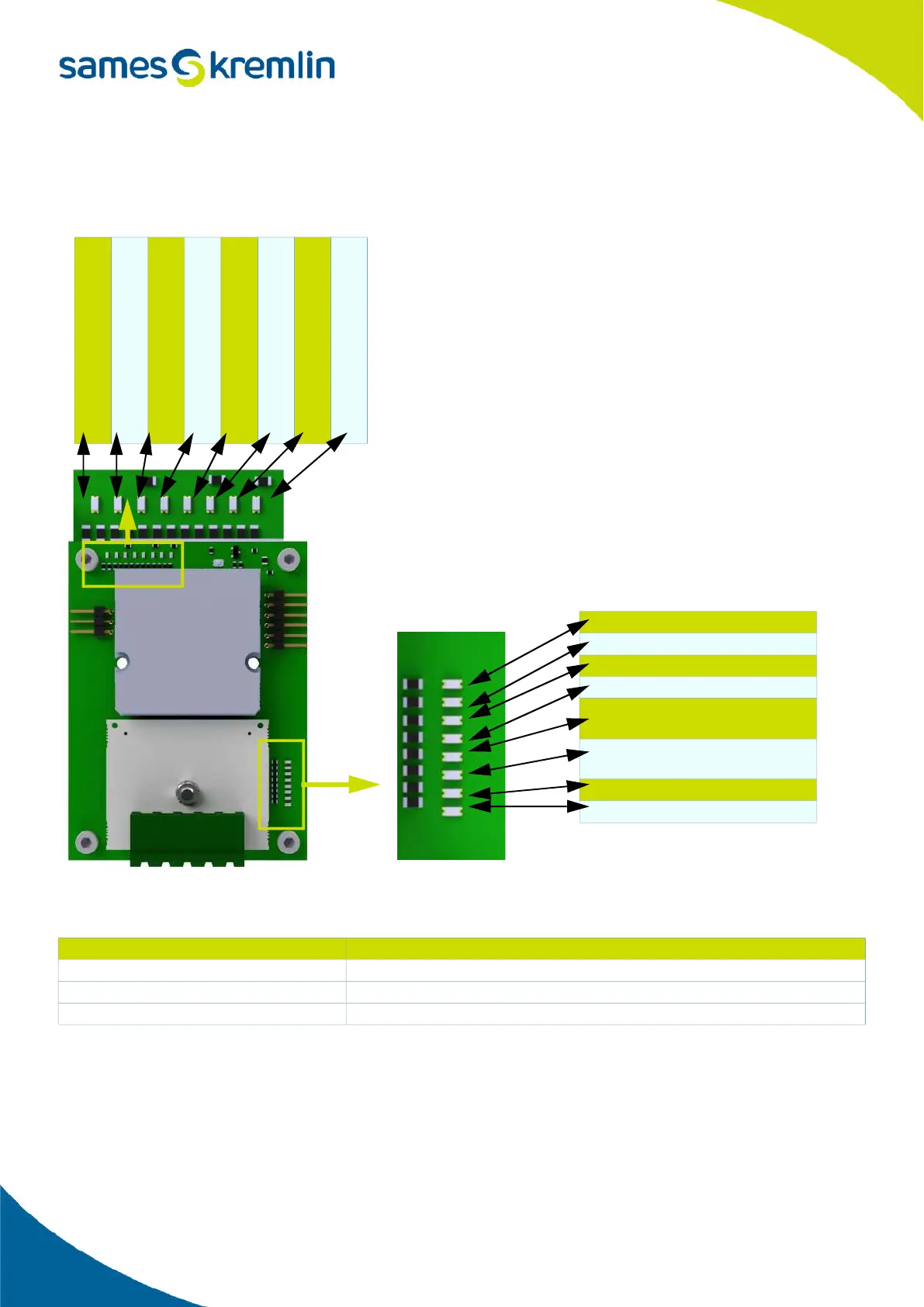

Front view of the CC-link module
LED CC-link
Operating LED
LED status Indication / Description
Off No participation in the network, shutdown state (no power)
Green Participant, normal operation..
Red Major fault (FATAL error)
Not used
Not used
Not used
Not used
Module status red (2B)
[Operating LED]
Module status green (2A)
[Operating LED]
network status red (1B)
[Error LED]
Network status red (1B)
Network status green (1A)
Module status red (2B)
Module status green (2A)
Not used Not used Not used Not used
