Error LED
CC-Link connector
CC-Link setting
On CC-Link, a unique station number must be assigned to each device on the network.
The highest possible station number depends on the number of occupied stations.
Three stations are occupied by the communication module.
CC-Link Version 2 is used with 2 extension cycles to have a larger data size
(160 bits and 24 words).
The module supports all common CC-Link baud rates up to 10Mbps:
• 156 kbps
• 625 kbps
• 2,5 Mbps
• 5 Mbps
• 10 Mbps

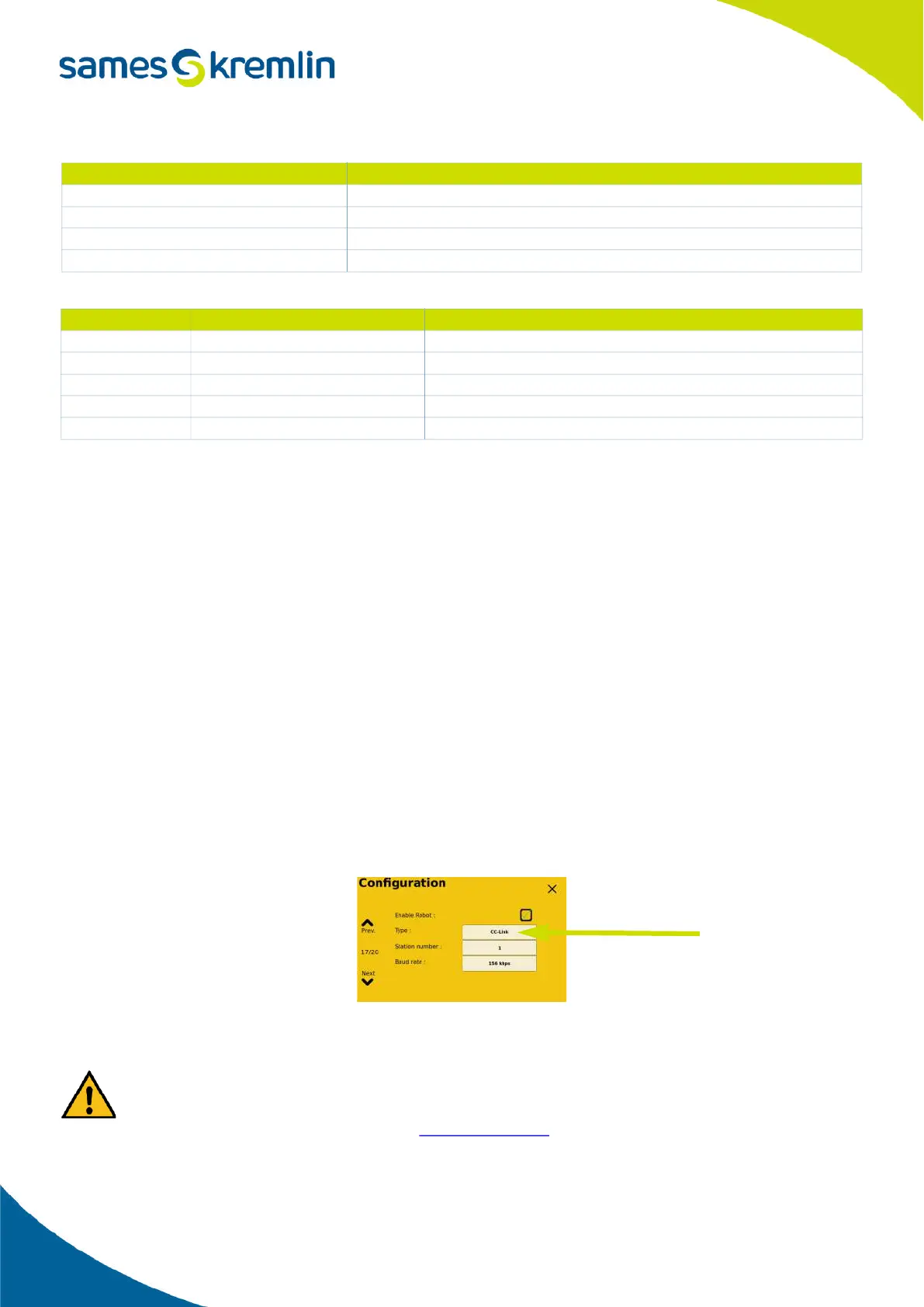

The transmission speed and station number can be defined on page 17 of the Configuration menu on the Cyclomix
®
Evo.
Only words are used for processing data, but the last 16 bits of the bit field are used to exchange flags (& 4.1) to
start the network.
Each CC-Link device is associated with a CC-Link family system profile (CSP+ file), which contains a description of the
device and its functions.
This configuration file can be downloaded from www.sames.com
LED status Description
Off No error detected (no power)
Red Major defect (Exception or FATAL event)
Red, flickering CRC error (temporary flickering)
Red, flashing Station number or baud rate has changed since startup (flashing)
LED status Description Comments
1 DA RS485 RxD/TxD Positive
2 DB RS485 RxD/TxD Négative
3 DG Signal mass
4 SLD Cable shielding
5 FG Functional earth
CC-Link
