Sames PPH 607 - 3 Technical Characteristics; Dimensions (MM)

Revised A 14 6301
3. Technical characteristics

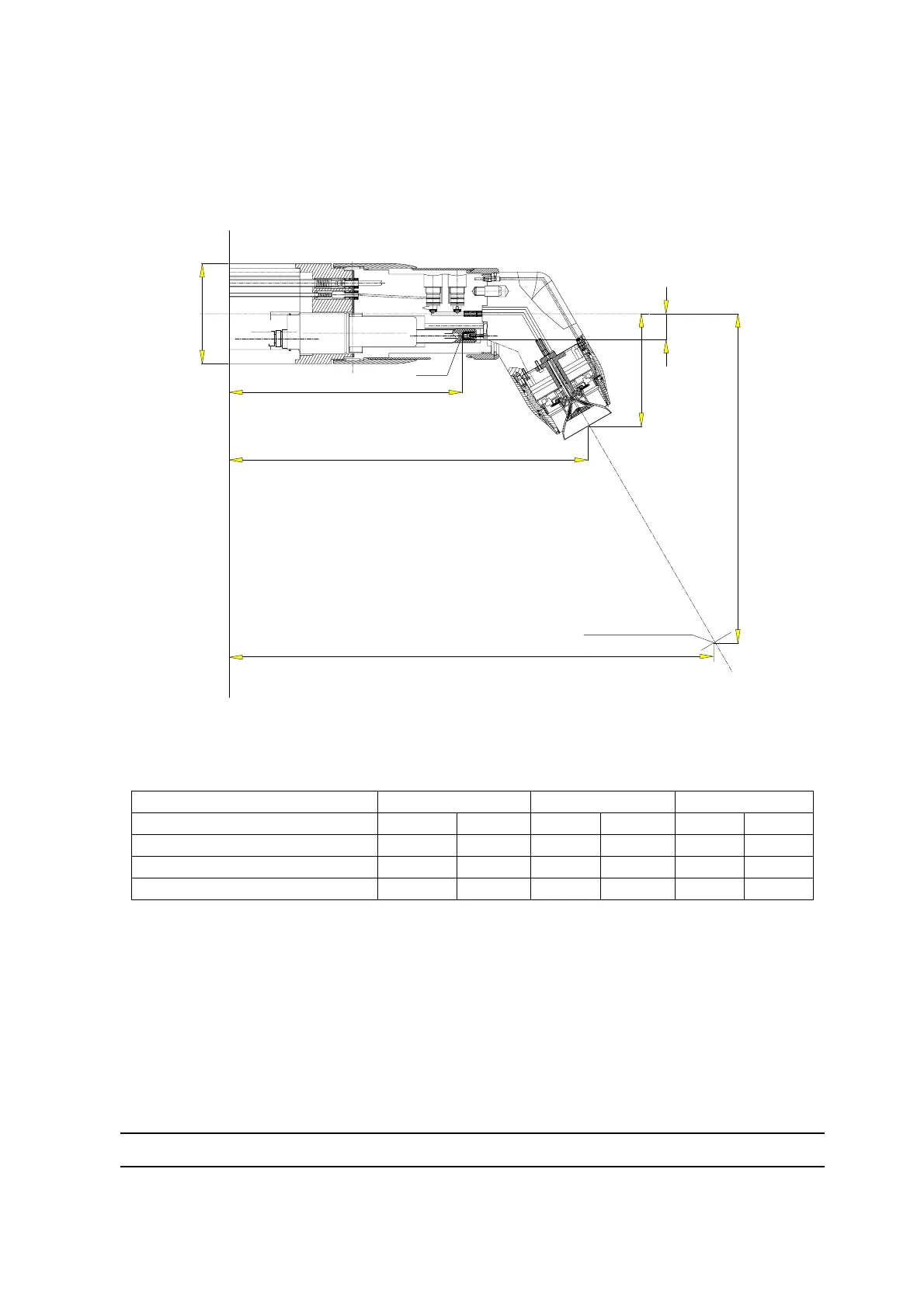

3.1. Dimensions (mm)
Note:
GC = gravity center
TCP = Tool center point
TCP @ cup TCP @300 mm GC
Installed cups ABCDEF
65 EC cup 431 135 581 395 280 31
60 mm, Negative edge 420 116 570 376 280 31
70 mm, Vortex 420 116 570 376 280 31
Ø 120
B
F
TCP
C
A
E
TCP @ 300mm
D
CG
Cup
DES01631
