Sames PPH 607 - Manifold O-Rings-Atomizer Side

Revised A 77 6301
8. PPH 607 SCAR coil spare parts lists (continued)
8.3. Manifold o-rings-atomizer side
Item USA P/N Sames P/N Description Qty
1 82-0410-23 J3STKL026 O-ring 2.75 x 1.6 - chemically inert
(Microphone air)
2
2 82-0884-26 J3STKL035 O-ring 3.68 x 1.78 - chemically inert
(Bearing and compensation air)
4
3 82-0884-10 J3STKL078 O-ring 6.07 x 1.78 - chemically inert
(Turbine drive and brake air)
6
4 1403825 1403825 Alignment pin dia. 12 2
5 1402690 1402690 Solvent injector 1
5a 82-0410-24 J3STKL027 O-ring 2.9 x 1.2 - chemically inert for solvent
injector
2
6 1402691 1402691 Shaping air pin 1
7 X7CVCB064 X7CVCB064 Screw M 3 x 16, brass 1
8 1401208 1401208 High voltage contact 1
3
3
1
1
3
3
4
4
2
3
3
2
2
2
5

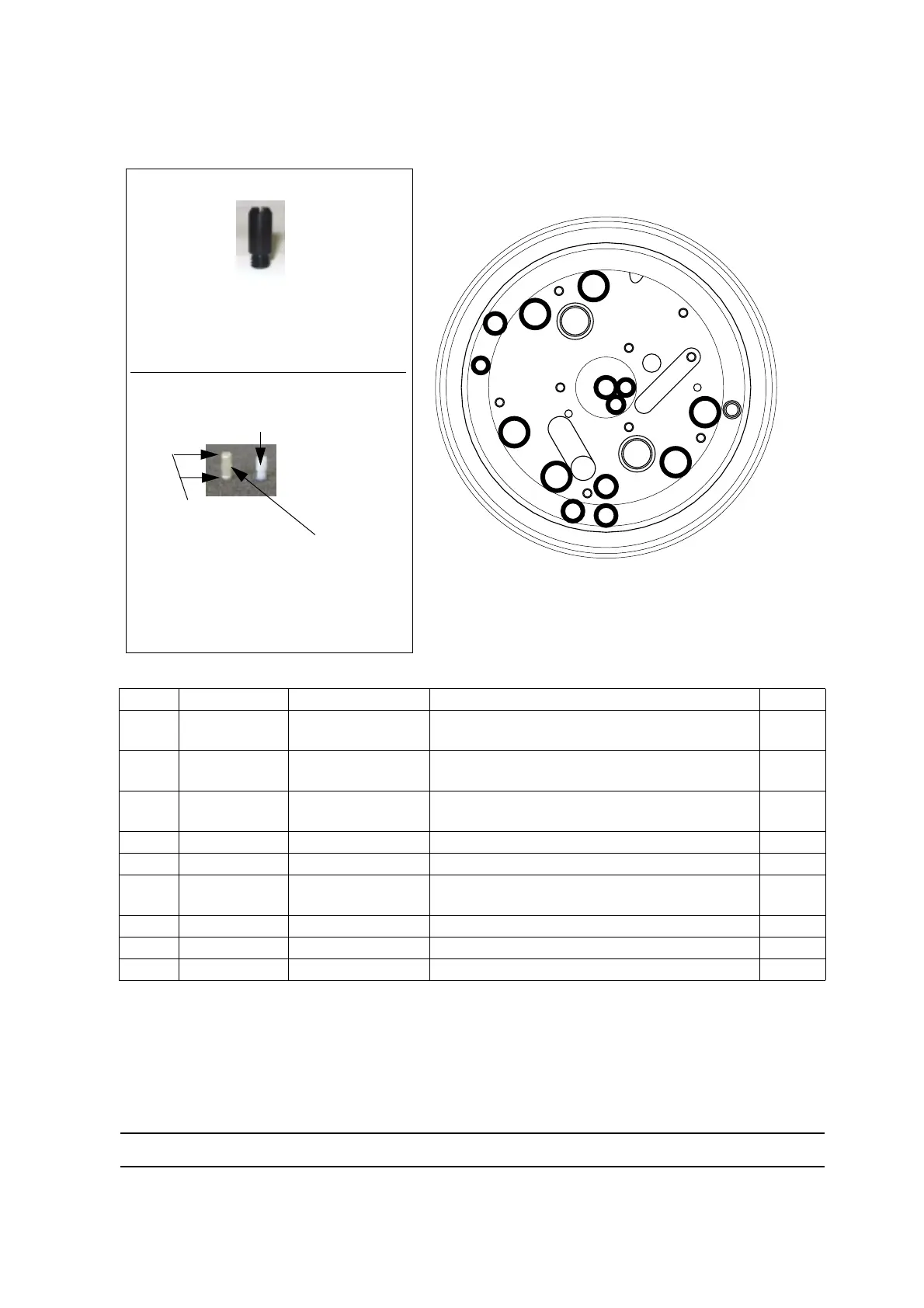

DES01113
Item 4
Elbow alignment pin
Item 5
Solvent injector
Item 6
Shaping air pin
Item 5a
O-ring 2.9 x 1.2
