5. Maintenance (continued)
5.3. Installation
(see § 8.1 page 71 for details.)
The robot quick disconnect plate is used to hold the atomizer onto the robot wrist.
The UHT 153 is installed in the robot quick disconnect plate as illustrated.
The quick disconnect tightening ring holds the body onto the quick disconnect robot plate.

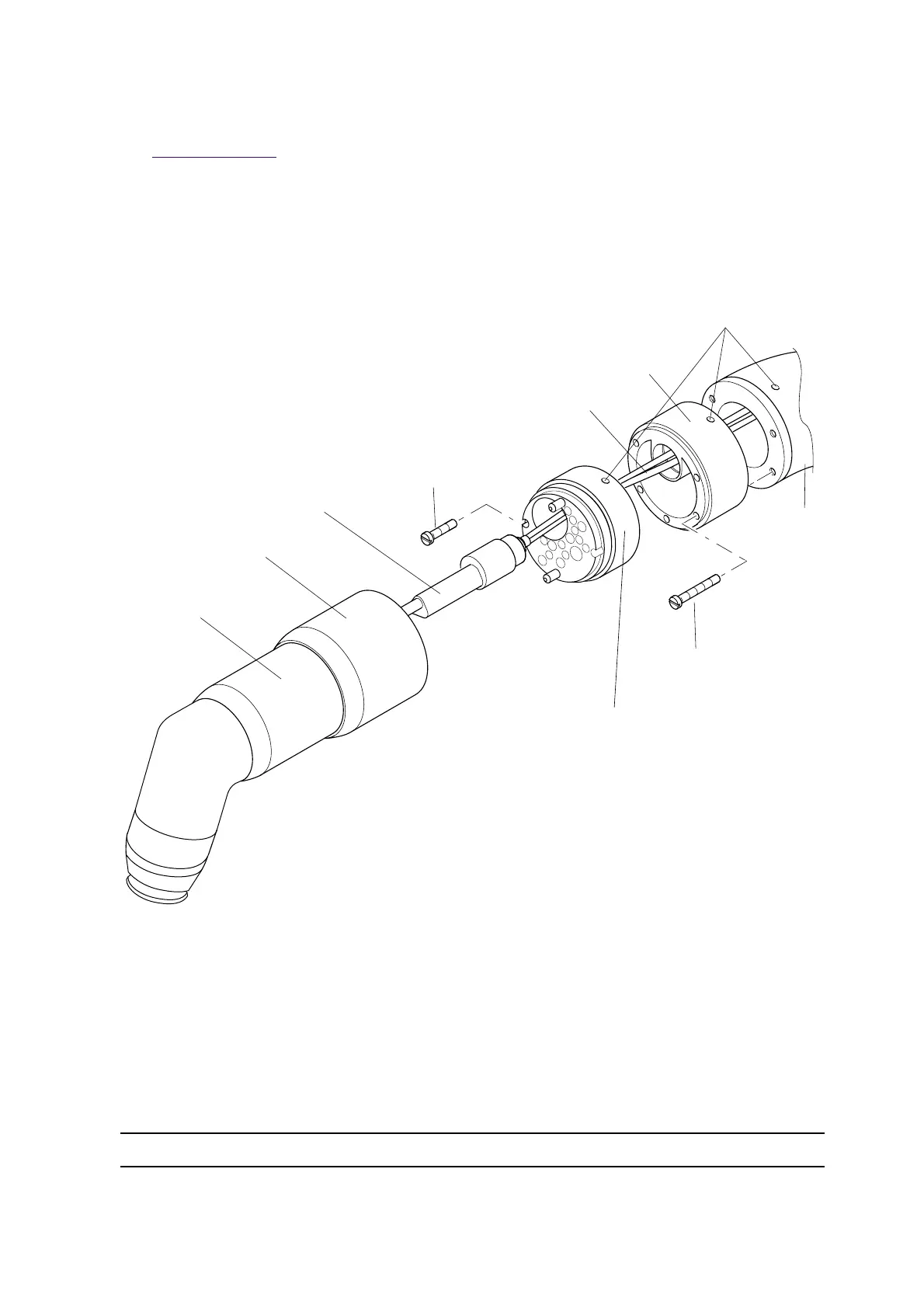

DES01431
Robot wrist
Zero index
Low voltage cables
Robot adaptor
5 screws M6 x 50
Nylon + glass filled
5 screws
(M5 x 50) 60% glass
filled
Quick disconnect robot plate
UHT 153 cascade
Quick disconnect tightening
ring
PPH 607
