Revised A 53 6301
6. Assembly and disassembly (continued)
6.3. Nano-valve
6.3.1. Removal
• Step 1: Use tool P/N 1301832.
• Step 2: Loosen the nano-valve by turning counterclock wise until it is released from the threads
(see fig. 1)
• Step 3: Flip the tool around (fig.2) and completely screw the tool onto the nano-valve and pull to
remove.
6.3.2. Assembly
Inspect nano-valve and components for damage and replace if necessary.
• Step 1: Clean all components (see § 7.4 page 70).
• Step 2: Apply a light film of dielectric grease (pure vaseline P/N H1GMIN017) to the nano-valve,
then insert the nano-valve into the manifold.
• Step 3: Insert the nano-valve tool onto the nano-valve and with the tool P/N 1403498 turn clock-
wise to a maximum torque of 1.8 ft/lbs (2,5 Nm).
DES01073

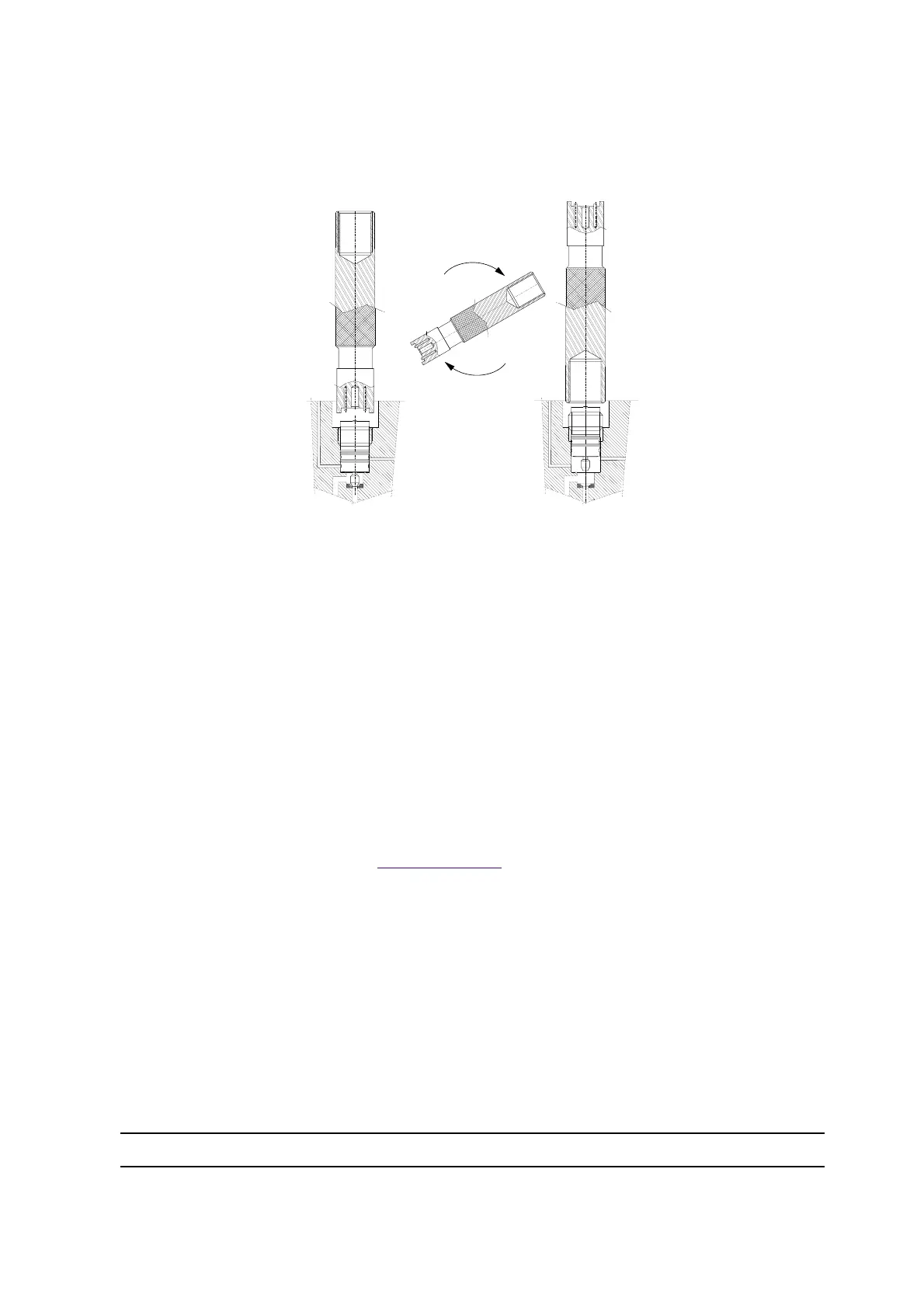

Figure 1 Figure 2
