Revised A 41 6301

5. Maintenance (continued)

5.3.4 Low voltage cable wiring instructions (continued)

Step 10:

Secure the electrical connector assembly with the (4) plastic screws.

Step 11:

Feed cable ends through the 5/16” nylon tubing.

Step 12:

Place the nylon tubing inside the connector and secure with connector and 2 S/S screws.

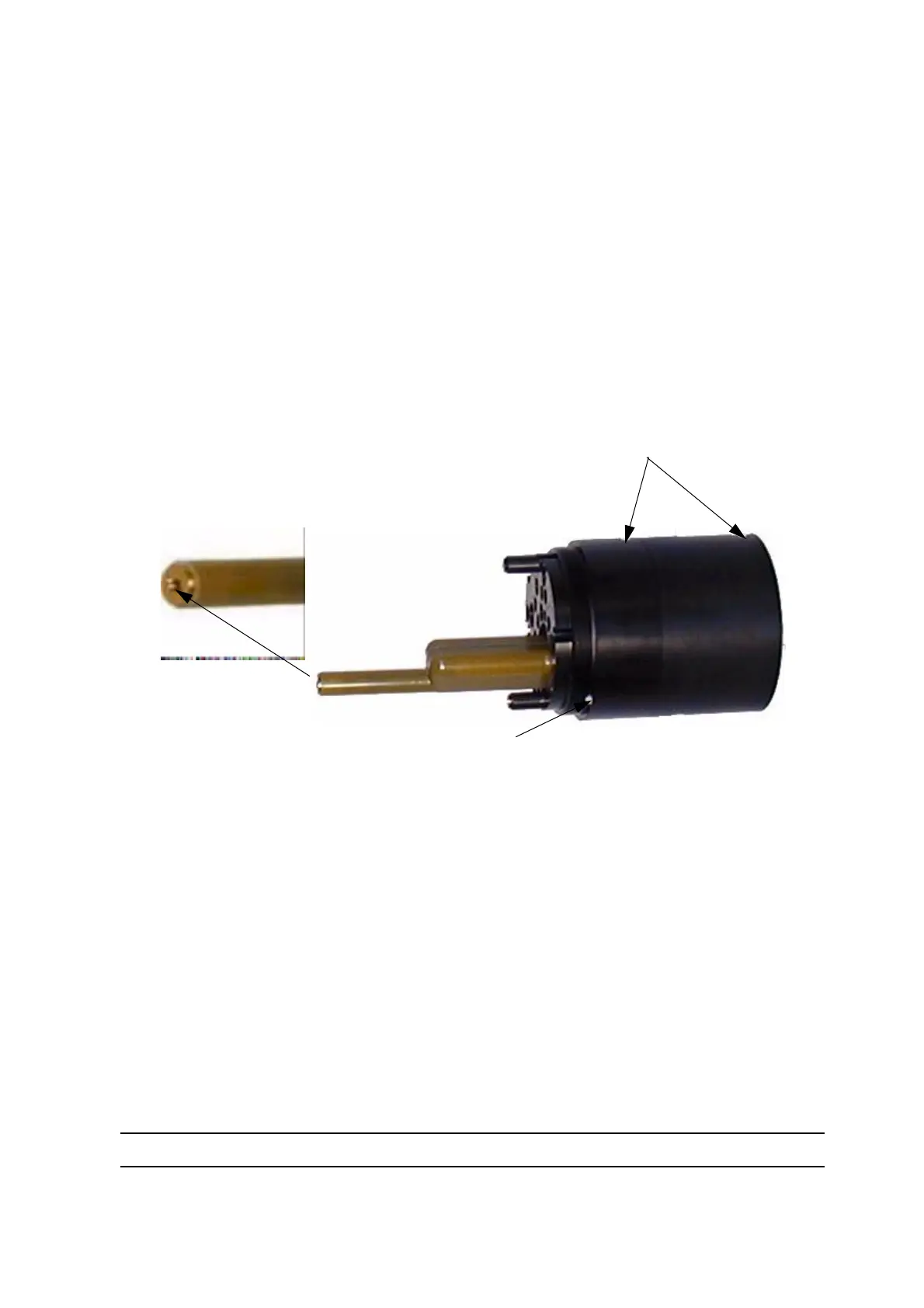

5.3.5. UHT 153 Cascade

Note:

• After installing the UHT 153 into the quick disconnect, apply a light film of dielectric grease to the

rod and high voltage contact before installing the PPH 607 manifold.

• Be sure to tighten the cascade set screw to prevent the cascade from falling out and breaking.

High voltage

contact

Zero degree indexing position

Cascade set screw
