Sames PPH 607 - Procedure B; Bellcup

Revised A 67 6301
7. Cleaning procedures (continued)
7.2. Procedure B
SAFETY : Stop turbine and shaping air.
7.2.1. Bellcup
• Step 1: Remove the bellcup see § 6.2.1 page 50
• Step 2: Soak one hour in ethanol only and clean with a clean rag and a soft bristle brush.
Note: Make certain that all surface is clean and free of any contaminant to
ensure proper fitting onto the clip.
• Step 3: Dry well using compressed air
Note: It may be necessary to disassemble in order to clean the bellcup completely see § 6.2.1 page
50. Use the appropriate tool for specific bellcup .

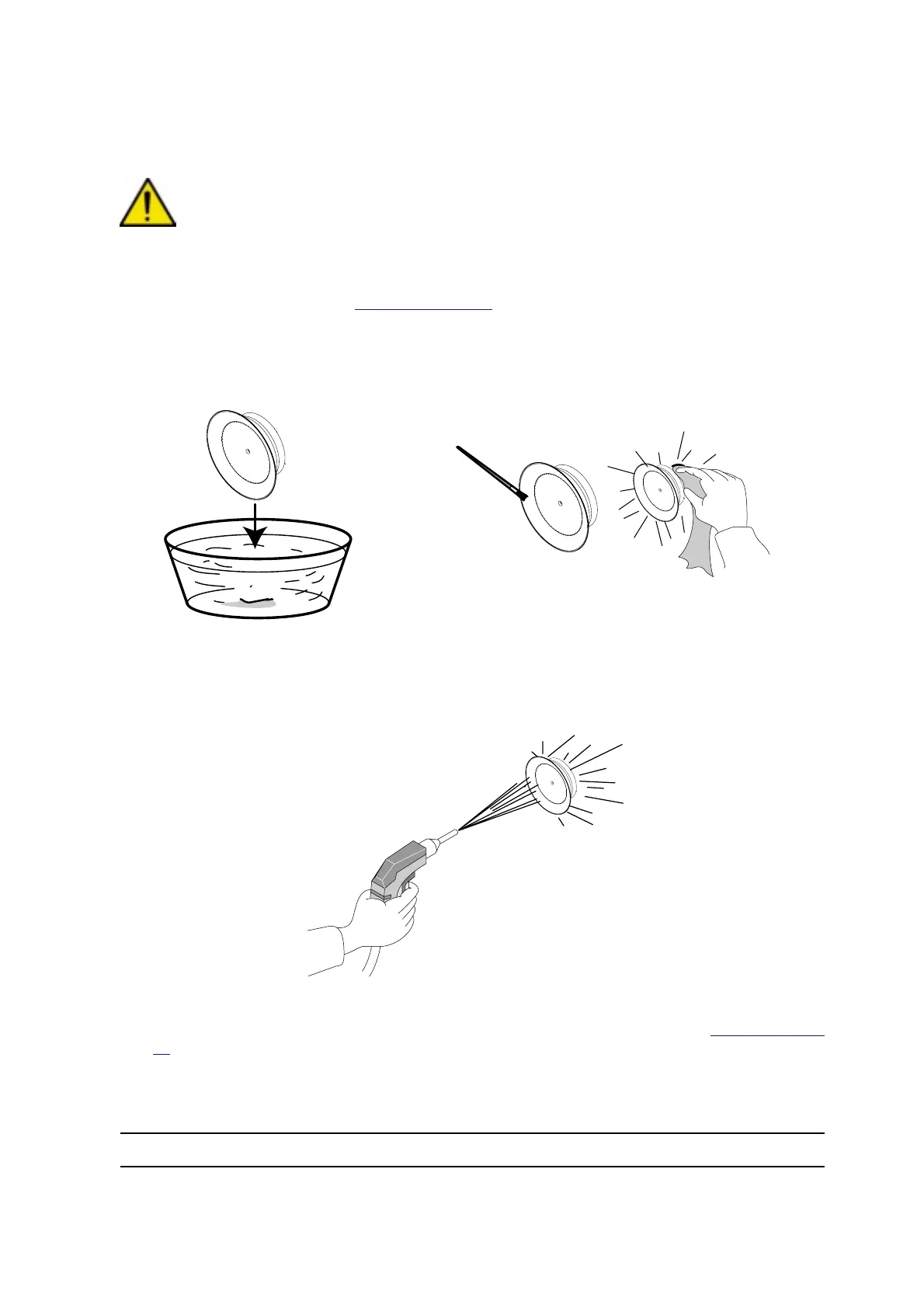

DES01717
DES01716
Step 2
Solvent
DES01718
Step 3
