Sames PPH 607 - Manifold; Disassembly

Revised A 62 6301
6. Assembly and disassembly (continued)

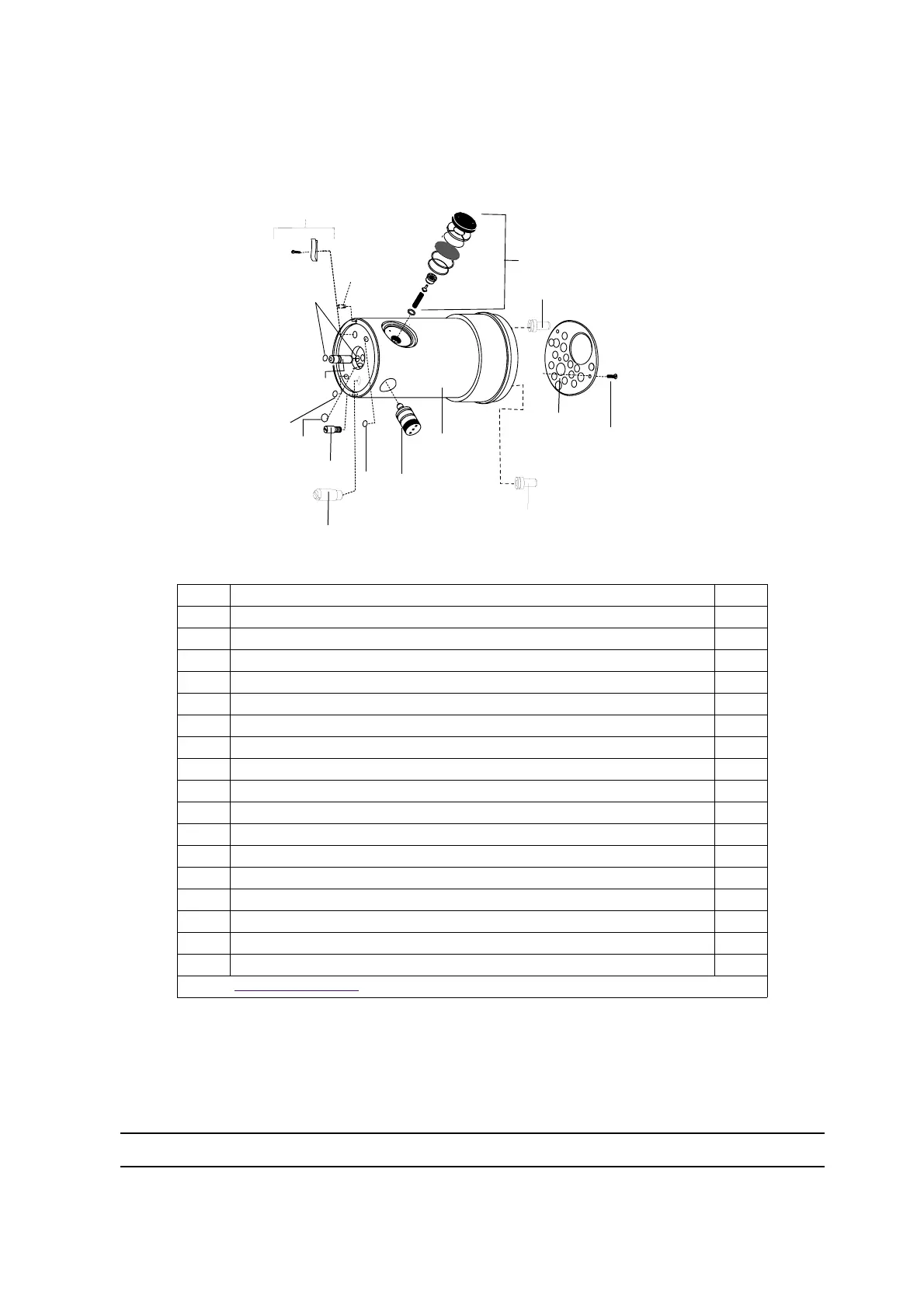

6.7. Manifold
6.7.1. Disassembly
Item Description Qty
1 High voltage contact assembly 1
2 Solvent injector 1
2a O-ring 2.9 x 1.2 - chemically inert 2
3 Regulator assembly 1
4 Pipette 6mm 9
5 O-ring 3.1 x 1.6 - chemically inert for restrictor 2
6 Restrictor Dia. 3.0mm 1
7 O-ring 6.07 x 1.78 - chemically inert (Turbine drive and brake air) 6
8 O-ring 2.75 x 1.6 - chemically inert (Microphone air) 2
9 Shaping air alignment pin 1
10 Alignment pin Dia. 12 2
11 O-ring 3.68 x 1.78 - chemically inert (Bearing and compensation air) 4
12 Nano-valve 4
13 Manifold body 1
14 Pipette 8mm 6
15 Pipette bracket 1
16 Screw nylon M4 x 10 3
Note: see § 8.1 page 71 for Sames spare parts list
1
2 + 2a
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DES02089
