Revised A 68 6301

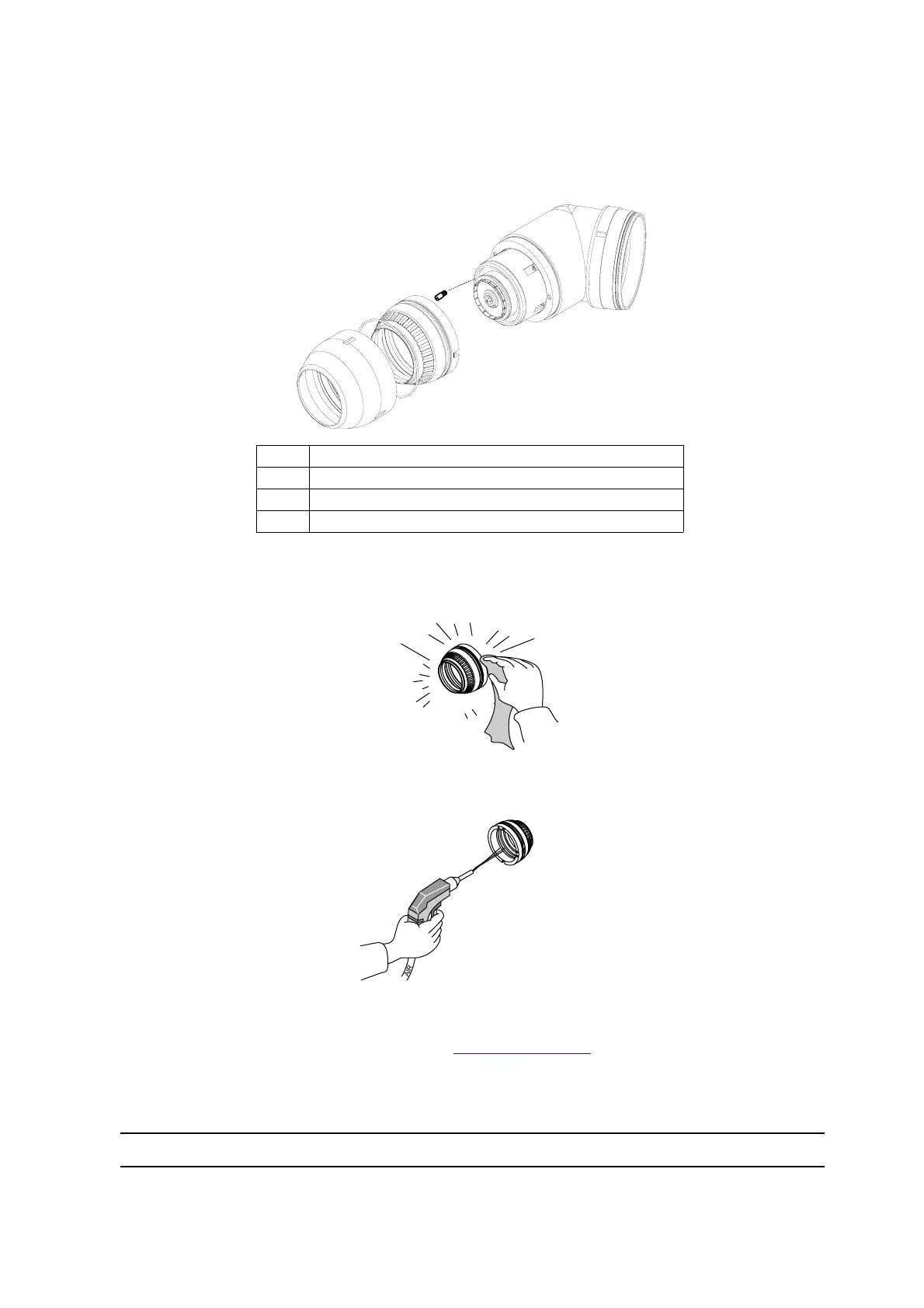

7. Cleaning procedure (continued)

7.2.2. Shaping air shroud

• Step 1: Remove the aluminium cover to remove the shaping air shroud

• Step 2: Clean outside and inside surfaces with a rag dipped in solvent and a nylon brush.

• Step 3: Dry well with compressed air and a clean dry rag.

7.2.3. Injector and injector holder

• Step 1: Remove injector as per instruction (see § 6.4.1 page 54)

• Step 2: Soak 1 hour in approved cleaning solution

• Step 3: Dry with compressed air

1 Aluminium cover

2 O-ring 88.62 x 1.78 teﬂon encapsulated

3 Shaping air shroud

4 Injector solvent with o-ring 2.9 x 1.2 chemically inert

DES01052

DES01099

Step 2

Step 3
