Sames PPH 607 - Turbine Motor, Injector, Restrictor; Disassembly

Revised A 54 6301
6. Assembly and disassembly (continued)

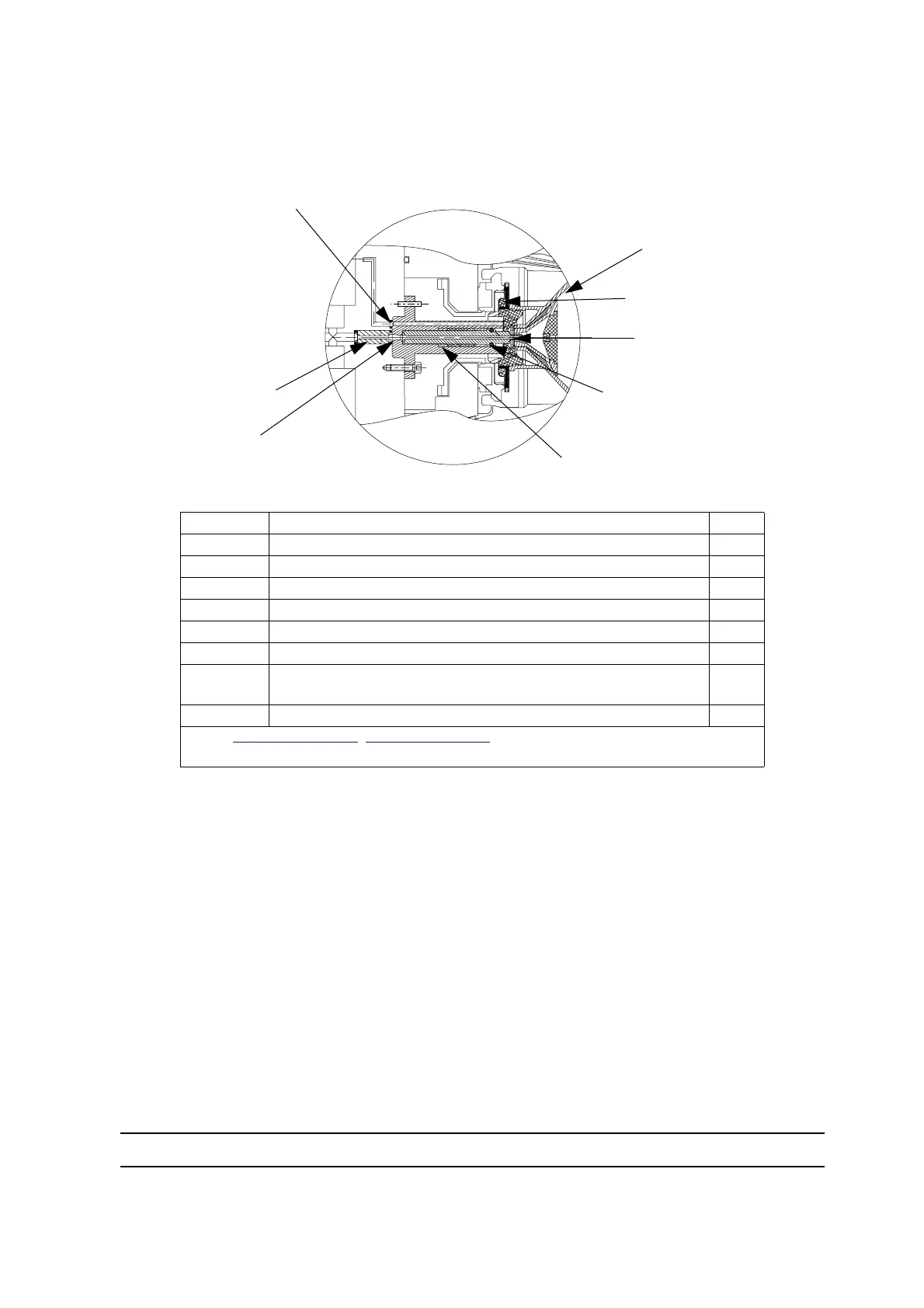

6.4. Turbine motor, injector, restrictor
6.4.1. Disassembly
Item Description Qty
1 Bellcup 1
2 Clip 1
3 Injector D: 1.8 mm 1
4 Injector o-ring 5.28 x 1.78 chemically inert 1
5 Injector holder 1
6 Injector o-ring 2.0 x 1.25 chemically inert 1
7 Restrictor (dia. 3mm) equipped with two o-rings size 3.1 x 1.6
chemically inert
1
8 Microphone o-ring 2.75 x 1.6 chemically inert 2
Note: see § 8.1 page 71, see § 8.9 page 83, for Sames spare parts list for
details.
DES01432
1
2
3
4
5
6
8
7
