Revised A 27 6301
4. Diagrams (continued)

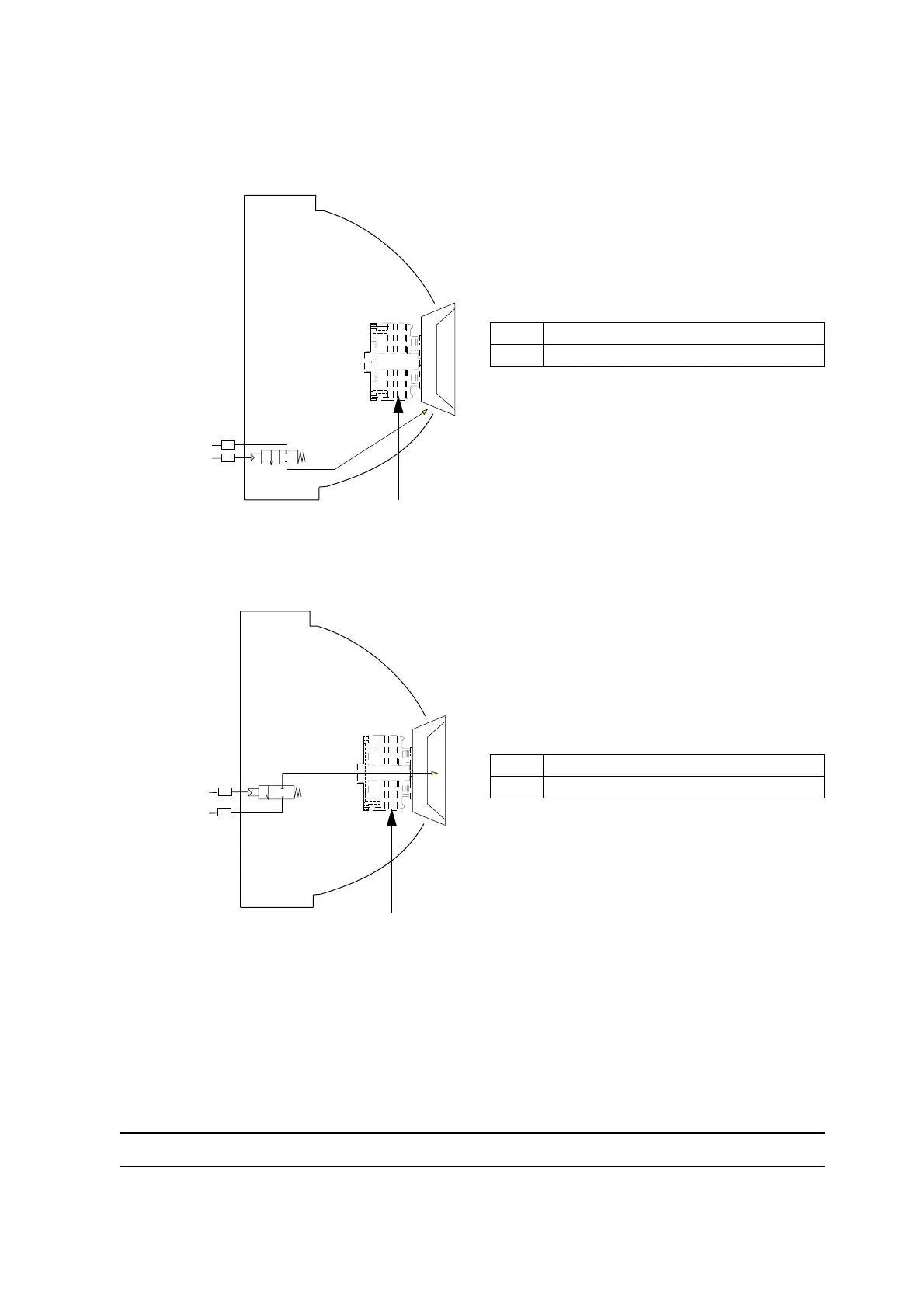

4.3. External bellcup wash
31: Bellcup wash, solvent/air supply, cleans the
bellcup.
4.4. Injector wash
32: Solvent/air supply cleans the paint supply
passage to the bellcup.
Note: PFA = (teflon) tubing should not be replaced with nylon tubing.
31 External bellcup wash solvent or air
58 External bellcup wash pilot air
56 Injector wash pilot
32 Injector wash solvent or air
DES01017
OD 3/16" NYLON
OD 3/16" PFA
31
58
Magnetic turbine
D:2,7/4 PFA
D:2,7/4 Nylon
DES01018
56
32
OD 3/16" NYLON
OD 3/16" PFA
Magnetic turbine
D:2,7/4 Nylon
D:2,7/4 PFA
