7. Cleaning procedures (continued)
7.3. Procedure C
SAFETY : Switch off all electrical supply.
• Step 1: Remove the shaping air assembly (do not damage o-ring) see § 6.1.1 page 48.
Remove bellcup see § 6.2.1 page 50 .
• Step 2: Remove clip see § 6.2.1 page 50.
• Step 3: Clean the clip with a nylon brush and solvent (MEK). Never soak the clip into solvent
Note: Make sure that the clip is not damaged
• Step 4: Clean both sides of the bellcup
• Step 5: Dry with compressed air

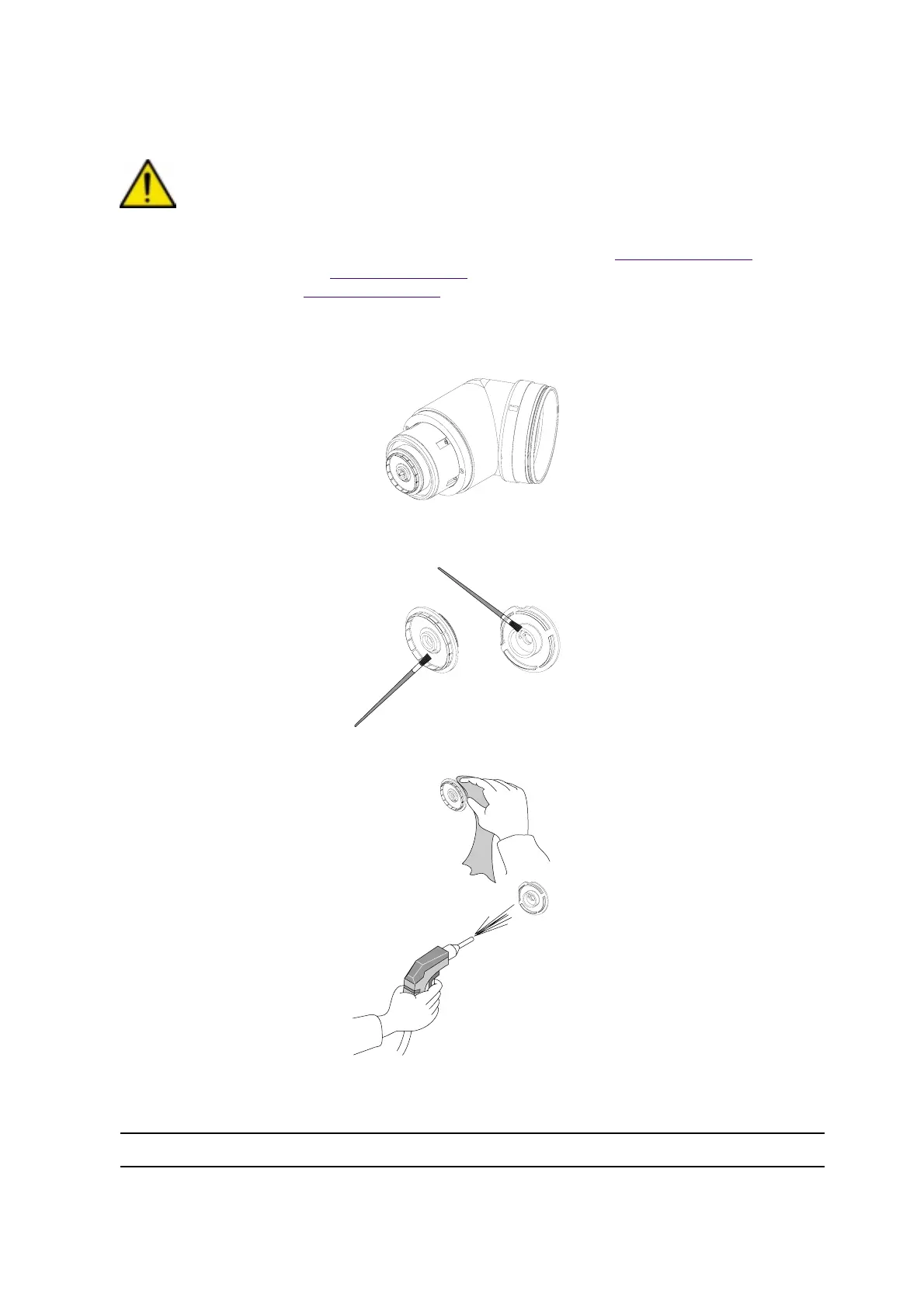

DES01100
DES01101
DES01103
